Belt conveyor Specifications
1. With over fourteen years of production and aftersale experience.
2. Long service life
3. Large conveying capacity
4. Be used for many industries widely
5. ISO2001, SEW,FLENDER
Large capacity high performance belt conveyor with advanced standard
Belt conveyors Operating Principles
Belt conveyor is a kind of machine to convey the material continuously. The belt works under the effect of frictional force. It is not only the components to convey the material, but also the components to convey the force. This conveyors consist of standard parts, which are advanced and simple in structure, easy to maintain.
Belt conveyor Main Features
1. Reasonable structure, large conveying capacity
2. Stable performance and reliable operation.
3. High universality, easy maintenance
4. Operating temperature: -15 degrees ~+40 degrees ,the temperature of material is below 50 degrees, the loose density is 0.5-2.2t/m3
5. According to the requirements of transportation technology, can be a single delivery, but also more machine or other conveyors horizontal or inclined conveying system.

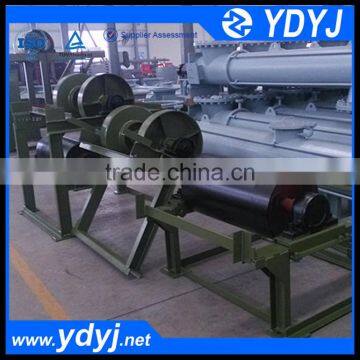

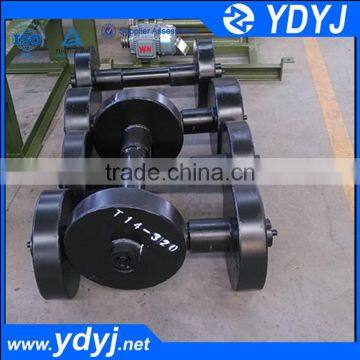

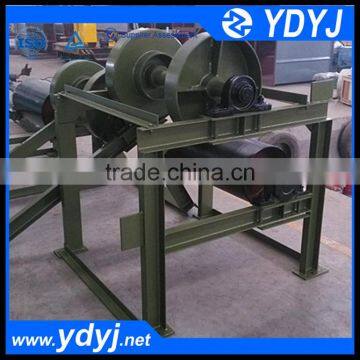

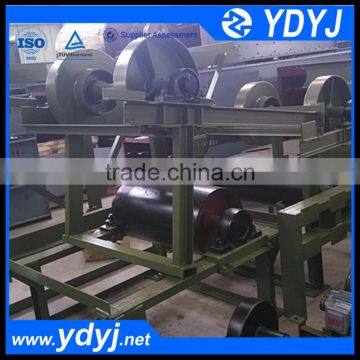

Belt conveyor components
Belt conveyor Technical Parameters
|
Belt width Capacity Speed(m/s |
0.8 |
1.0 |
1.25 |
1.6 |
2.0 |
2.5 |
3.15 |
4.0 |
|
Trough idler |
500 |
78 |
97 |
122 |
156 |
191 |
232 |
|
|
|
650 |
131 |
164 |
206 |
264 |
323 |
391 |
|
|
|
800 |
|
278 |
348 |
445 |
546 |
661 |
824 |
|
|
1000 |
|
435 |
544 |
696 |
853 |
1033 |
1233 |
|
|
1200 |
|
655 |
819 |
1048 |
1284 |
1556 |
1858 |
2202 |
|
1400 |
|
891 |
1115 |
1427 |
1748 |
2118 |
2528 |
2996 |
Flat idler |
500 |
41 |
52 |
66 |
84 |
103 |
125 |
|
|
|
650 |
67 |
88 |
110 |
142 |
174 |
211 |
|
|
|
800 |
118 |
147 |
184 |
236 |
289 |
350 |
|
|
|
1000 |
|
230 |
288 |
368 |
451 |
546 |
|
|
|
1200 |
|
345 |
432 |
553 |
677 |
821 |
|
|
|
1400 |
|
469 |
588 |
753 |
922 |
1117 |
|
|
Packaging and shipping
1. Export packing.(Wooden case, carbon cast and pallet).
2. Container (as customer requirements)
3. It is suitable for long distance ocean transportation.
Our after-sale
I. Engineers abailable to service machinery overseas.
2. Provide installation guide, equipment manuals, operation and repair training.
3. Provide random spare parts.
FAQ
Please clear the following technical datas before ordering:
Q: What 's the material will be conveyed?please tell us more material features.
Q:What's the conveying distance between the inlet and outlet?
Q:What's the conveying capacity do you want?
Company qualification certificate
Company advanced processing equipments
Company other informations
Welcome to consult and visit our company.
