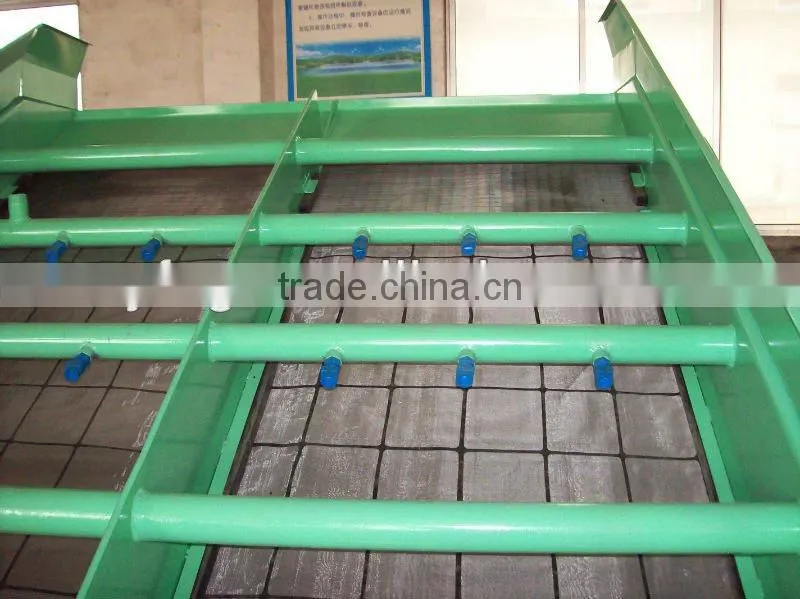

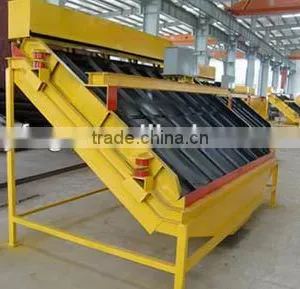

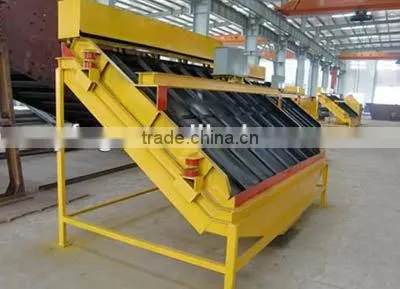

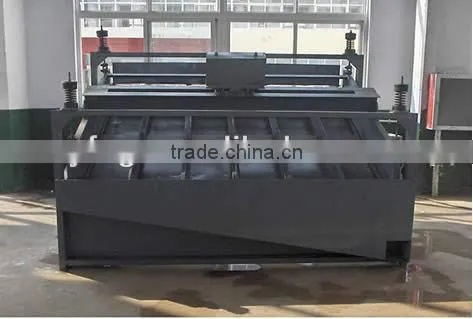

Product Discription of High Frequency Screen
High-frequency screen consists of vibration exciter, ore slurry distributor, screen frame, machine frame, suspension springs and sieve. It has the features of small amplitude and high frequency of screening. Regarding to the working principle, it differs from the conventional screens. By means of breaking of the surface tension of slurry, together with small granularitys high speed vibration on sieve cover and accelerates the separating of large-density useful mines and increases the contacting probability of the materials smaller than output granularity and the sieve pore. Therefore, it creates good condition for separating materials, especially for the small size
High-Frequency Screen Features
High efficiency, small amplitude and high frequency of screening; it differs from the conventional screens with breaking of the surface tension of pulp and small granularity high speed vibration on sieve cover and accelerates the separating of large-density useful mines and increase the contacting probability of the materials smaller than output granularity and the sieve pore. Therefore produce good condition and make the materials smaller than the output granularity, especially the big-density materials and pulp get through the sieve pore together. Its screen is made of stainless steel or nylon.
Model |
Screen square(m 2 ) |
Thickness of input material(%) |
Capacity(t/h) |
Power(kw) |
GPS-4 |
4.5 |
30%-40% |
15-25 |
0.72 |
GPS-5 |
5.2 |
30%-40% |
20-30 |
1.1 |
GPS-6 |
6 |
30%-40% |
24-36 |
1.5 |
GPS-8 |
8.1 |
30%-40% |
32-48 |
2.2 |
....
