4.8x76m Rotary Kiln /Cement Kiln / Clinker Kiln

Specifications

Rotary Kiln
1.calcine and dry
2.various models suitable for your capacity
3.direct manufacturer
4.more than 60x experience

As the main equipment in both of the cement clinker dry and wet process production lines, this cement rotary kiln is widely used in metallurgy field, chemical industry, building refractory material sector, environmental protection field, and so on. It mainly consists of cylinder body, supporting device, supporting device with catch wheel, driving device, movable kiln head, sealing equipment of the kiln end, coal spraying pipe, etc.

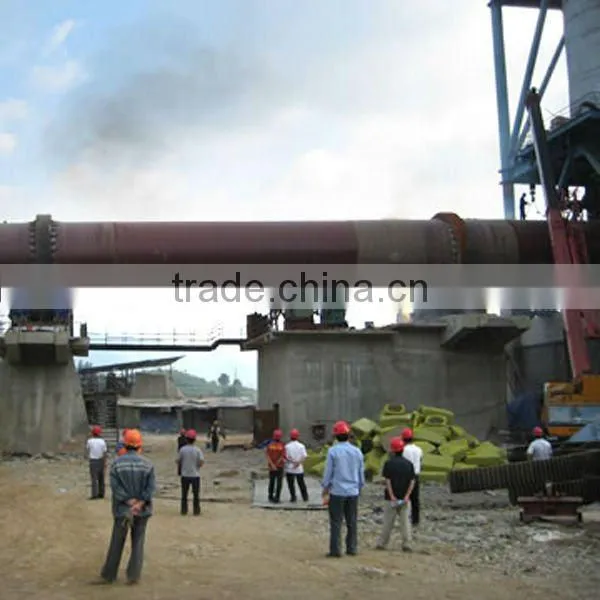

4.8×76m Rotary Kiln

Technical Performance of  4.8×76m Rotary Kiln:

1. Specification: 4.8×76m rotary kiln

2. Output: 5000t/d dry process cement production line

3. Inclination: 4%   4. Rotating speed: main driving part: 0.35-4r/min; auxiliary driving part: 8.52r/h.

5. Amount of supports: 3

6. Sealing type: kiln head: sheet steel sealing; kiln end: air cylinder sealing

7. Cooling of kiln head: air cooling

8. Thrust roller type: hydraulic type with oil pump station

9. Driving mode: Single driving

10. Motor of main driving: ZSN4-400-092; power: 630kW; rotating speed:1500r/min; rated voltage: 440V

11. Main speed reducer: JH710C-SW305-40

12. Auxiliary  motor: Y225M-4  IP44  45KW

13. Auxiliary speed reducer: JH220C-SV302-31.5.



Main Components of 4.8×76m Rotary Kiln



1. Cylinder part: the total weight of cylinder body is 368,000kg; its base plate is easy to replace; and its tyres are made of cast steel and of rectangular solid structure.

2. Driving device

3. Supporting device

4. Thrust roller oil pump station

5. Sealing equipment for kiln head and end.

6. Air cooling pipe

7. Particular tools for rotary kiln

8. Total weight of equipment: 854000kg



Note: parameters in the form are only for reference, and specific ones should refer to the contract.
