Specifications
spiral classifier1.more than 60x experiences
2.large capacity
petitive price
4.many modele according to your needs

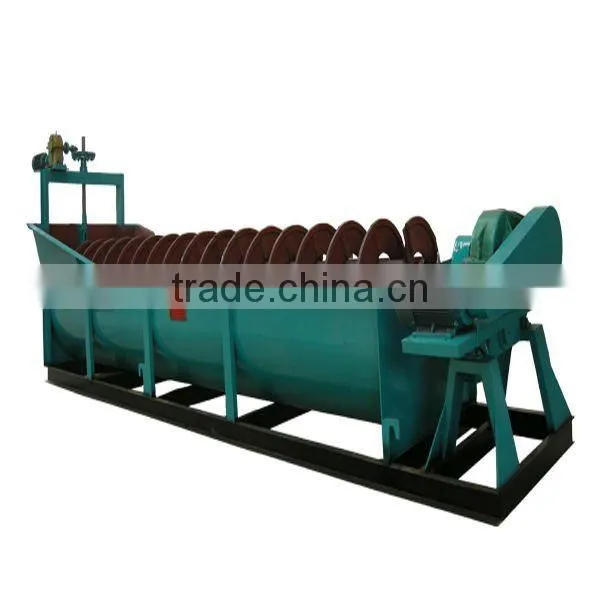

Spiral Classifier Overview
By combining the appropriate submergence from the spiral and among the tank designs either 63 combinations achievable in Straight, the correct mixture of pool depth, area and spiral construction is very important to have a controlled turbulence within the slurry flow for accurate size separation. This classifier can filter materials and send coarse materials to the feeding mouth and discharge fine materials from the pipe. The seat of the machine features channel steel material, while the body is armor plated and the spiral axle is made of cast iron for durability. The machines lifting equipment can be used manually or electronically.
Spiral Classifier Application
Spiral Classifier is widely used to control material size from Ball Mill in the beneficiation process, separate mineral sand and fine mud in the gravity concentration, and clean mud and water in washing mineral process. This machine has features of simple structure, reliable and convenient operation, etc. It is also used together with impact crushers and vibrating feeders.
This spiral classifier can filter materials and send coarse materials towards the feeding mouth and discharge fine materials from your pipe. The seat from the machine features channel steel material, as the person is armor plated as well as the spiral axle is constructed of certain for durability. The machines lifting equipment can be utilized manually or electronically.
Spiral Classifier Advantages
Adjustable weirs Sealed, submerged bearing Optional automatic lubrication system Rigid tank and substructure Wide selection of tank design Overflow collection box Number of industries serviced
