Specifications
Cement Fine Powder SeparatorCapacity: 10-260t/h

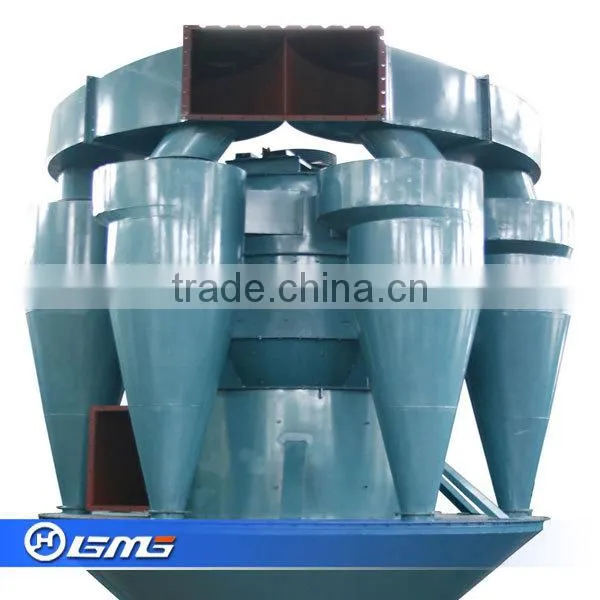

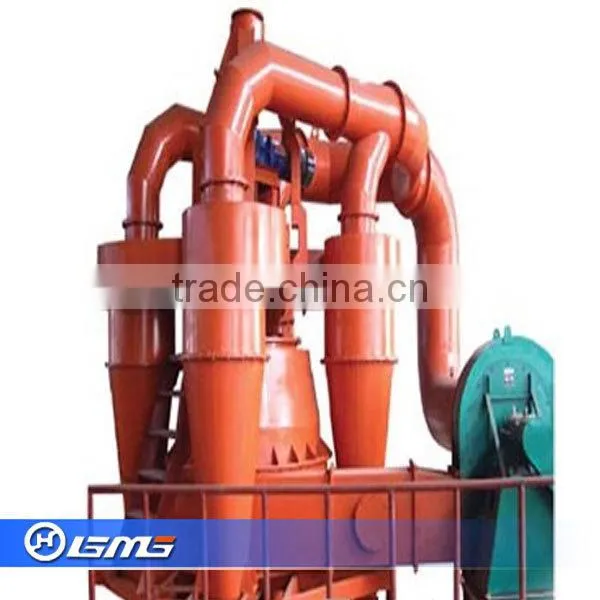

Introduction of 10--260 t/h Cement Fine Powder Separator
Powder concentrator is mainly used as the separation equipment in the closed-circuit system of raw material powder grinding in the cement plant and also as the separation equipment for grinding other non-metallic ores, and it is used in the building industry.

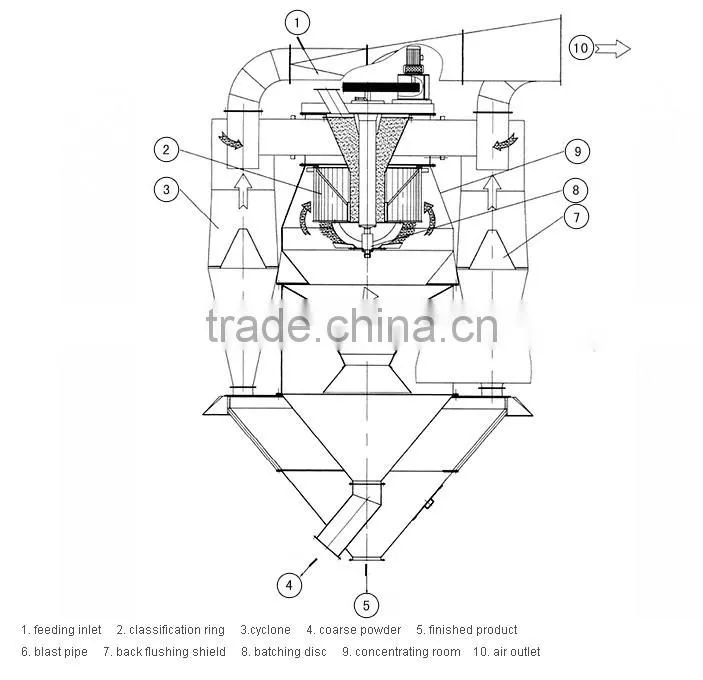

The materials are fed into the feeding mouth of the powder concentrator and are evenly scattered through the rotating spreading plate of the rotor. Due to the obstruction of the retention ring, the materials will scatter to the powder concentration area between the air deflector and the rotor. The powder dust particles that move in the powder concentration eddy will be influenced by the gravity, wind power and rotary centrifugal force at the same time, for this reason, the powder dust particles with different initial velocity and grain diameter will have different movement locus, and the fine and slight particles will be sucked inside the rotor with the air flow and go into the cyclone collector in four ways through the air distribution room, and the majority part of the final fine powders are separated, and the dusty air will be discharged from the exhaust duct of the cyclone collector and go to the next dust collecting equipment. The coarse and heavy particles will fall and are gathered to the coarse powder collecting cylinder through the cone and returned to the grinding mill for re-grinding.
Parameter of 10--260 t/h Cement Fine Powder Separator
Model No. |
Fineness R0.08 (%) |
Airflow (m3/h) |
Rotating Speed (r/min) |
Motor Power (kw) |
Max Processing Capacity(t/h) |
Output (t/h) |
S-250 |
0-3 |
15000 |
250-500 |
11 |
50 |
10-18 |
S-350 |
0-3 |
21000 |
220-450 |
18.5 |
90 |
15-28 |
S-500 |
0-3 |
30000 |
180-400 |
22 |
120 |
20-40 |
S-750 |
0-3 |
45000 |
160-340 |
30 |
120 |
30-50 |
S-1000 |
0-3 |
600000 |
130-300 |
37 |
210 |
40-70 |
S-1250 |
0-3 |
75000 |
130-280 |
37 |
250 |
50-85 |
S-1500 |
0-3 |
90000 |
130-260 |
45 |
300 |
75-100 |
S-1750 |
0-3 |
105000 |
120-250 |
55 |
360 |
85-120 |
S-2000 |
0-3 |
120000 |
120-240 |
55 |
420 |
110-140 |
S-2500 |
0-3 |
150000 |
110-200 |
75-90 |
520 |
130-170 |
S-3000 |
0-3 |
180000 |
110-180 |
90-110 |
600 |
150-200 |
S-3500 |
0-3 |
210000 |
110-180 |
110-132 |
690 |
180-230 |
S-4000 |
0-3 |
240000 |
110-180 |
132-160 |
780 |
200-260 |
1. Innovative design: with new-style assembled design method, it is integrated
with advantages of original centrifugal type, cyclone type and double rotor
type, which greatly lower the energy consumption.
2. High efficient and low energy consumption: materials are classified in
several classifying areas, with unique distribution structure. It can make
excellent powder-selection with high efficiency of over 85%. And the electrical
power consumption is 30% lower than the traditional powder selector cost
3. Adjusting standard: this machine effectively improve the grain grade of
final product, and enhance the cement quality to adjust to national new cement
standard.
4. Condensation resistant: with available condensation resistant design, it can
in seasoned with the southern’s high moisture and northern’s cold climates.
5. Advanced and durable: multiple-section scale board can prolong the frame’s
service life. It has compact structure, including fan, adjusting motor, lock
air valve and so on. Main technical parameters for powder concentrator
