Help CenterSecondary Rubber Shredder For Tire Recycling Machine
Related Products
-
Fine Rubber Shredder For Tire Recycling MachineUS$ 1 - 12,063MOQ: 1 Set -
Tire Shredder Machine in Waste Tyre Pyrolysis PlantUS$ 10,000 - 50,000MOQ: 1 Set
-
Fine Rubber Shredder in Waste Tire Shredder Recycling PlantUS$ 1 - 12,063MOQ: 1 Set
-
Car and Truck Tire Shredder Machine in Waste Tyre Pyrolysis Oil PlantUS$ 10,000 - 50,000MOQ: 1 Set
-
Tyre Recycle MachineNegotiableMOQ: 1 Set
Specifications

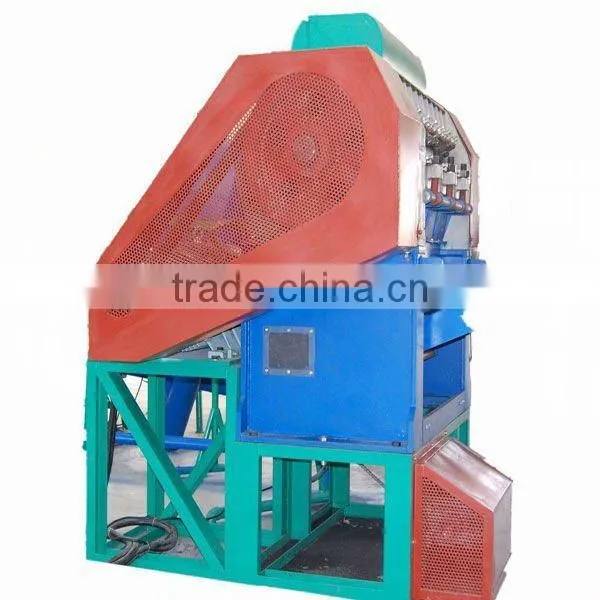

Crush the 25*25mm into 6-12mmThis machine is to smash 25x25 mm rubber processed by tire crusher into 6-12 mm rubber grain in at ambient temperature. It’s composed of main axis, movable sword-plate, movable sword, running wheel, stable sword-seat, stable sword, filter, in-filler and in-out circular water cannel, etc.
Working Principles
materials directly enter from the in-filler into chamber, pass on transfer, part drive principle axis to revolve at high speed, make movable sword and stable sword cut materials into grains at a high speed, volume of materials can be controlled by adjusting the interval between swords to let grains fitting to filter output from outlets. The smashing room is cooled down by circular water all the way during the whole smashing process.
Advantages
1. Double-layered in feed funnel absorbs noises efficiently in working.
2. The circling water cooling system prevents the high temperature trend in the chamber, blade and bearings in working, which obviously avoid rubber conglutination at high temperature and prolong the lifetime and productivity of the machine.
3. The X designed blade ensures the logical and reasonable shearing method and cost efficiency.
4.The horny alloy blade can stand hard strike, wearing resistant, and flexible; the blade is in simple design, easy installation and adjustment, and last long.
5. The perforated screen is designed movable at squeeze, which ensures suitable distance between the blade and the screen and convenience for replacement of the screen.
6. The reasonable inner design decreases the noises to a great extend.
Specification
|
Item Mode
|
Model |
||
XJX450-600 |
XJX500-900 |
XJX500-1200 |
|
Power(KW) |
37 |
55 |
75 |
Blade bed (pc) |
2 |
3 |
4 |
Movable blade (pc) |
12 |
18 |
24 |
Fixed blade (pc) |
8 |
8 |
12 |
Rotor speed (r/min) |
500 |
500 |
500 |
Circle diam. (mm) |
450 |
500 |
500 |
Blade length (mm) |
600 |
900 |
1200 |
in feed size (mm) |
≤50X50 |
≤50X50 |
≤50X50 |
Output size (mm) |
6~12 |
6~12 |
6~12 |
Capacity |
200~300 |
400~600 |
800~1200 |
Times for resharp |
6~7 |
6~7 |
6~7 |
Life time (h) |
1000 |
1000 |
1000 |
Weight (kg) |
2200 |
4000 |
5000 |
5000TPY Production Plant Flowchart
