Tyre Recycle Machine
- 10 Set / Sets per Month
- Shanghai
- T/T
Product Details
Condition: | New | Type: | Tire Machine | Tire Machine Type: | Tire Recycling Machine |
Place of Origin: | Henan, China | Brand Name: | GMG | Model Number: | LP1200 |
Voltage: | 380V | Power(W): | 94 | Dimension(L*W*H): | 4000*3140*3500mm |
Weight: | 17.5t | Certification: | CE | Warranty: | One Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Tyre Recycle Machine1.Tire crusher can crush the whole tire
2.Final product: 50*50mm
3.capacity:3000-4500kg/h

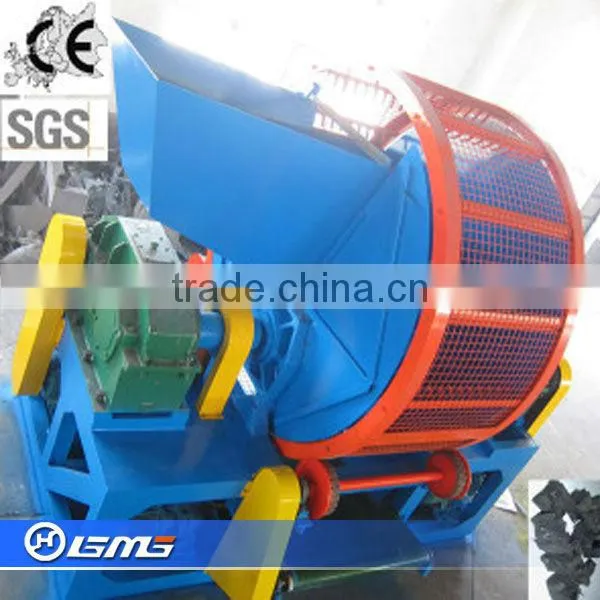

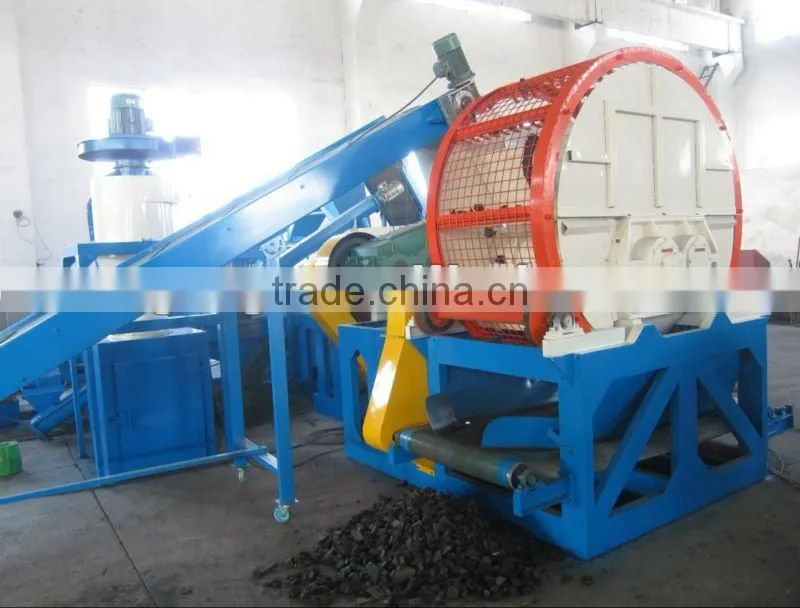

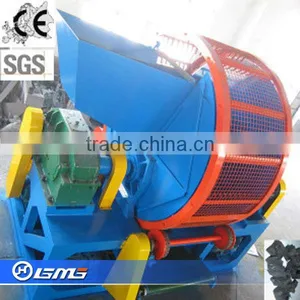

LP-1200 Whole Tire Shredder
Tire crusher is designed to crush both diagonal and radial tires with the outer diameter≤Φ1200mm into 50*50mm rubber blocks.for further processing. It is formed with in feed funnel, motor, gear transmission system, crushing chamber, classifier, main body, etc.
Working principle
The blades in the crushing chamber are driven turning by the main motor to shear the tires with outer diameter less than 1.2m from the in feed funnel. During the shearing process, blocks less than or equal to 50*50mm are filtered out through the screen, bigger size will be send back for crush again until smaller than the above mentioned size.
Advantages
1.Double shaft shearing method optimizes the drive force and avoids jam and mean while reduces the moment of overturning
2.Cycloidal-pin gear speed reducer planetary reducer features high working capacity, high efficiency, low noise, low volume and long lifetime.
3.Horny alloy blade edge can be shaped several times to ensure long lifetime for blade.
4. Easy shaft replacement and maintenance.
Technical parameter
Item(LP-1200) |
|
Main power(KW) | 94 |
Blade QTY(PCS) | 20 |
Turning speed(r/min) | 18 |
Blade Dia.(mm) | 490 |
In feed size(mm) | ≤1200mm tires |
Output size(mm) | 50*50chips(changeable) |
Capacity(kg/h) | 3000~4500Kgs/H |
Overall size | 4000*3140*3500mm |
Weight(kg) | 17500 |
