Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Crusher > PEX250x1000 Fine Jaw Crusher

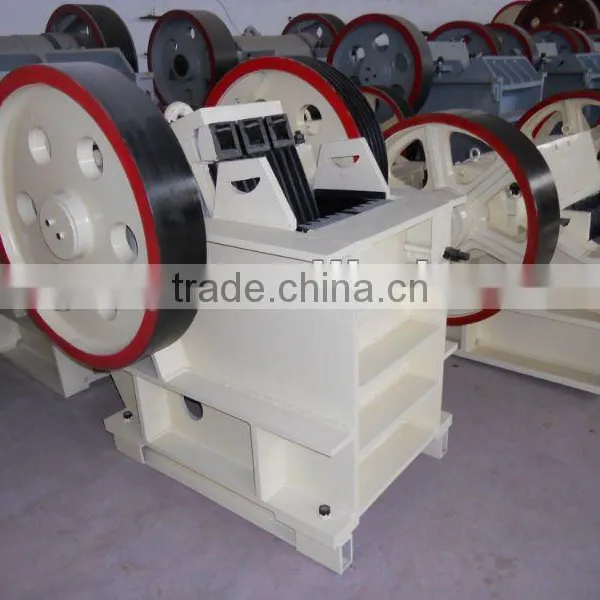

PEX250x1000 Fine Jaw Crusher

PEX250x1000 Fine Jaw Crusher thumbnail-1
PEX250x1000 Fine Jaw Crusher photo-1
US$ 1 - 13,888 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Jaw Crusher
Application:
Stone Crushing Plant
Contact Supplier Request Quote Chat Now
Zhengzhou Huanqiu Heavy Industries Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Jaw Crusher
Application Stone Crushing Plant
Motor Type AC Motor
Power(W) 30000
Capacity(t/h) 16-52
Place of Origin Henan, China
Brand Name GMG
Model Number PEX250x1000
Dimension(L*W*H) 1560*1950*1390
Weight 7t
Certification CE
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

PEX250x1000 Fine Jaw Crusher
1.Capacity 16-25TPD
2.Max Feeding Size 210mm
3. Motor Power 30kw
4.Weight 7t

Jaw Crusher is most widely used in the international market and has the features of high crushing ratio,even granule,simple structure,easy maintenance, etc. It can be used for fine crushing and coarse crushing. The highest compressive resistance of the crushed materials is 320Mpa. The large and medium-size jaw crushers are the key products of our company. Especially in designing and producing the large-size jaw crusher, we have stood in the front line of our country.

specifications Feeding port size(mm)

Max Feeding

Size(mm)

Discharging mouth

adjustment

range(mm)

 Capacity(t/h)

Eccentric

shaft speed(r/min)

 Power(KW) Weight(T) Shape dimension(long x width × high)(mm)
PE-150*250 150*250 125 10-40 1-3 250 5.5 0.8 720*660*850
PE-200*300 200*300 180 15-50 2-6 260 7.5 1.2 910*750*990
PE-200*350 200*350 180 18-70 3-10 260 11 1.5 1000*870*990
PE-250*400 250*400 210 20-60 5-20 300 15 2.8 1300*1090*1270
PE-400*600 400*600 340 40-100 16-60 275 30 7 1730*1730*1630
PE-500*750 500*750 425 50-100 40-110 275 55 12 1980*2080*1870
PE-600*750 600*750 500 150-200 80-240 275 55 15.8 2070*2000*1920
PE-600*900 600*900 500 65-160 50-180 250 55 17 2190*2206*2300
PE-750*1060 750*1060 630 80-140 110-320 250 90-110 29 2660*2430*2800
PE-800*1060 800*1060 640 160-220 130-330 250 110 29.8 2710*2430*2800
PE-830*1060 830*1060 650 160-220 150-336 250 110 30.7 2740*2430*2800
PE-870*1060 870*1060 660 200-260 190-336 250 110 31.5 2810*2430*2800
PE-900*1060 900*1060 685 230-290 230-390 250 110 33 2870*2420*2940
PE-900*1200 900*1200 750 95-165 220-450 200 110 52 3380*2870*3330
PE-1000*1200 1000*1200 850 195-265 315-500 200 110 55 3480*2876*3330
PE-1200*1500 1200*1500 1020 150-300 400-800 180 160 100.9 4200*3300*3500
PEX-150*750 150*750 120 18-48 8-25 320 15 3.8 1200*1530*1060
PEX-250*750 250*750 210 25-60 13-35 330 30 5.5 1380*1750*1540
PEX-250*1000 250*1000 210 25-60 16-52 330 30 7 1560*1950*1390
PEX-250*1200 250*1200 210 25-60 20-61 330 37 9.7 2140*1950*1500
PEX-300*1300 300*1300 250 20-90 16-105 300 55 15.6 2720*1950*1600

PEX250x1000 Fine Jaw Crusher
