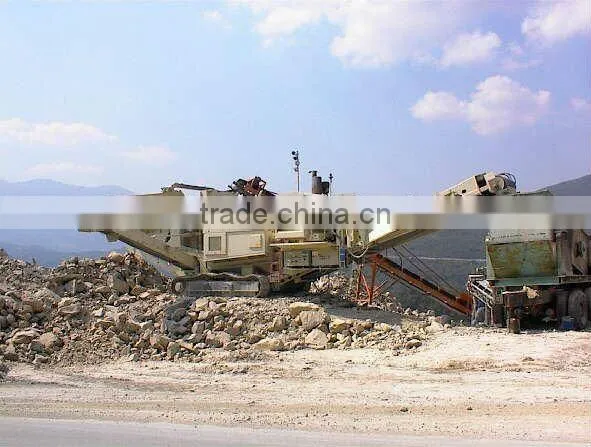

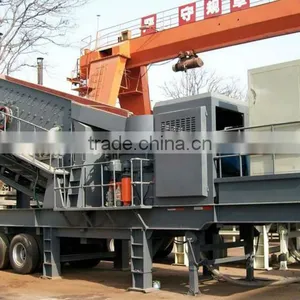

300-1000 tpd tire type mobile crushing and screening plant

Specifications

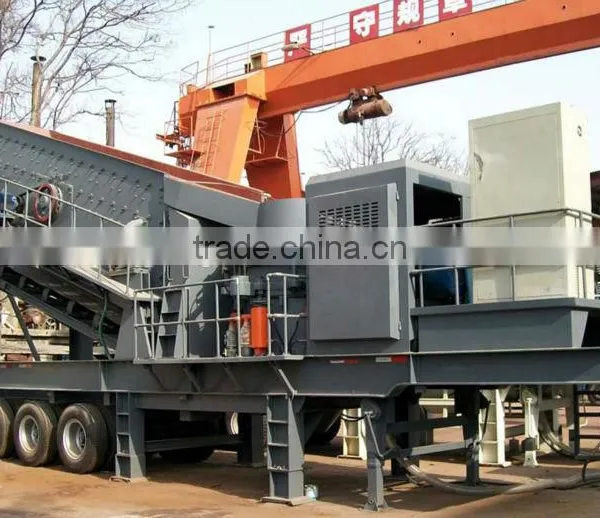

tire type mobile crushing plant
1.new technology
2.direct manufacturer
3.have export many countries

Mobile crusher



also called portable crusher is a stone crusher that is  easy to move before crushing or after crushing process. Mobile crusher for sale  in China,According to the   capacity and crusher weight, we can divide mobile crusher into small mobile   crusher (mini mobile crusher) and heavy duty mobile crusher.

 can supply you five models mobile crusher: jaw crusher series mobile crusher,   cone crusher series mobile crusher, impact crusher series mobile crusher,   multi-crushing type mobile crusher and crawler type mobile crusher etc.



Mobile crusher application

1. Mobile crusher is used widely   for industrial materials processing in metallurgical, chemical, building   materials, highways, railways, utilities industries etc. Mobile crusher is the   ideal equipment to replace traditional crusher equipments such as jaw crusher,   cone crusher, impact crusher, hammer crusher in stone crushing plants or rock   production lines because mobile crusher can equip these crusher machines.

2. Multi-functional operating characteristics: Zenith can design different   mobile crusher or portable crusher according to our clients’ requirements.

3. Mobile crusher is widely used in mining, coal, cement industry,   mining-site crushing hard materials.

4. The recycling process of construction waste, urban infrastructure, roads   and construction sites etc.

5. Cement concrete road reconstruction of rough crushing and the crushing   process of recycled asphalt concrete materials







Technical Parameters of Tire-type mobile impact crusher station



Model	Transportation Length (mm)	Transportation Width (mm)	Transportation Height(mm)	Max Height (mm)	Max Width (mm)	Belt Conveyor Height	Tire Equipment	Weight (T)
Y3S1548F1010	12500	2500	4000	6000	2800	4000	Biax	42
Y3S1848F1210	12500	2800	4500	6500	3000	4000	Biax	46
Y3S1860F1214	13500	2800	4500	6500	3000	4200	Three Axle	51
Y3S2160F1315	14000	3000	4800	6500	3200	4200	Three Axle	57
Y3S1848F1210Z	18000	2800	4500	6700	3000	4000	Four Axle	55
Y3S1860F1214Z	18000	3000	4500	6700	3000	4200	Four Axle	61

Vehicle Specification Underpan Height:1650MM, Height difference of Wheel and Underpan:380MM

Model	Vibrating Screen Model ?	Impact Crusher Model	Size of Belt Conveyor below screen	Size of Belt Conveyor Above screen	Size of Belt Conveyor	Capacity(t/h)	Power (kw)
Y3S1548F1010	3YZS1548	PBF1010	B500X7M			30-275	70-90
Y3S1848F1210	3YZS1848	PBF1210	B650X7M			56-330	128.5-150.5
Y3S1860F1214	3YZS1860	PBF1214	B650X8M			65-586	154-190
Y3S2160F1315	3YZS2160	PBF1315	B800X8M			81-720	210-297
Y3S1848F1210Z	3YZS1848	PBF1210	B650X7M	B650X16M	B650X10M	56-330	148-168
Y3S1860F1214Z	3YZS1860	PBF1214	B650X8M	B800X16M	B800X11M	65-586	182-218
