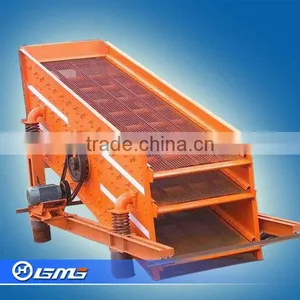

Linear Vibrating Screen
USD $5,200 - $53,500
/ Set
1 Set(Min.Order)
- 90 Set / Sets per Month
- Tianjin Shanghai Qingdao
- T/T
You May Like
Product Details
Condition: | New | Type: | Linear | Application: | Ore |
Place of Origin: | Henan, China | Brand Name: | GMG | Model Number: | 3YA1548 |
Voltage: | As customer requirement | Power(W): | 15000 | Dimension(L*W*H): | 5900*2260*1650 |
Weight: | 5.1t | Certification: | ISO CE |
Product Description
Specifications
Vibrating Screen:1.Different models in available
2.Manufacturer with 65 years experience
Circular Vibrating Screen earns this name by reason of its approximately circular movement. It is of multilayer and high efficiency. The eccentric shaft vibration exciter and partial block help to adjust amplitude. This kind of screen is of long streamline, many specifications and clear screening for different specifications.
Working Features of Circular Vibrating Screen:
It uses eccentric block to produce strong exciting force. Crossbeam and the main body of the screen are connected with high strength screw bolts. So they have the features of simple structure and easy maintenance. It adopts tire clutch with capability of flexible connection and stable operation. It adopts the structure of small amplitude, high frequency, large obliquity to make the screen hold the capability of high efficiency, large handling capacity, long life span, low consumption, little noise.Technical Parameter of Circular Vibrating Screen:
Model | Layer of Screen | Double Ampli-tude (mm) | Size of Sieve Pore (mm) | Max. Feeding Size (mm) | Capacity (m3/h) | Model of Motor | Motor Power (kw) | Screen Specification (mm) | Total Weight (t) (Excluding Electric Motor) | Dimension (L×W×H) (mm) |
2YA1237 | 2 | 6-8 | 3-50 | 300 | 10-80 | Y160M-4 | 11 | 1200×3700 | 3.6 | 4600×1900×1200 |
3YA1237 | 3 | 8 | 3-50 | 300 | 10-80 | Y160M-4 | 11 | 1200×3700 | 3.9 | 4730×1900×1650 |
4YA1237 | 4 | 8 | 3-50 | 300 | 10-80 | Y160M-4 | 11 | 1200×3700 | 4.5 | 4900×1900×2150 |
2YA1548 | 2 | 8 | 3-100 | 300 | 22-160 | Y160L-4 | 15 | 1500×4800 | 4.6 | 5720×2260×1200 |
3YA1548 | 3 | 8 | 3-100 | 300 | 22-160 | Y160L-4 | 15 | 1500×4800 | 5.1 | 5900×2260×1650 |
4YA1548 | 4 | 8 | 3-100 | 300 | 22-160 | Y160L-4 | 15 | 1500×4800 | 5.6 | 6050×2260×2100 |
2YA1848 | 2 | 8 | 3-100 | 300 | 32-276 | Y180M-4 | 18.5 | 1800×4800 | 5.35 | 5720×2560×1200 |
3YA1848 | 3 | 8 | 5-100 | 300 | 32-276 | Y180M-4 | 18.5 | 1800×4800 | 6 | 5900×2560×1650 |
4YA1848 | 4 | 8 | 3-100 | 300 | 32-276 | Y180M-4 | 18.5 | 1800×4800 | 6.65 | 6050×2560×2100 |
2YA1860 | 2 | 8 | 3-100 | 300 | 65-586 | Y180M-4 | 22 | 1800×6000 | 6 | 6920×2560×1200 |
3YA1860 | 3 | 8 | 3-100 | 300 | 65-586 | Y180M-4 | 22 | 1800×6000 | 6.6 | 7100×2560×1650 |
4YA1860 | 4 | 8 | 3-100 | 300 | 65-586 | Y180M-4 | 22 | 1800×6000 | 7.2 | 7250×2560×2110 |
2YA2160 | 2 | 8 | 3-100 | 300 | 81-720 | Y200L-4 | 30 | 2100×6000 | 10.1 | 7020×3090×1320 |
3YA2160 | 3 | 8 | 3-100 | 300 | 81-720 | Y200L-4 | 30 | 2100×6000 | 11.3 | 7160×3090×1780 |
4YA2160 | 4 | 8 | 3-100 | 300 | 81-720 | Y200L-4 | 37 | 2100×6000 | 12.5 | 7320×3090×2230 |
2YA2460 | 2 | 8 | 3-150 | 300 | 90-810 | Y225S-4 | 37 | 2400×6000 | 11.6 | 7020×3390×1320 |
3YA2460 | 3 | 8 | 3-150 | 300 | 90-810 | Y225S-4 | 37 | 2400×6000 | 12.8 | 7160×3390×1780 |
4YA2460 | 4 | 8 | 3-150 | 300 | 90-810 | Y225S-4 | 37 | 2400×6000 | 14 | 7320×3390×2230 |
2YK2865 | 2 | 3-5 | 3-200 | 300 | 150-1000 | Y225S-4 | 37 | 2800×6500 | 13 | 7190×3630×1550 |
3YK2865 | 3 | 3-5 | 3-200 | 300 | 150-1000 | Y225S-4 | 37 | 2800×6500 | 14.5 | 7340×3630×2050 |
4YK2865 | 4 | 3-5 | 3-200 | 300 | 150-1000 | Y225M-4 | 45 | 2800×6500 | 15.8 | 7513×3630×2550 |
