Home > Industrial Equipment & Components > Conveyor & Parts > Conveyor > High Quality!!! Flexible Screw Conveyor

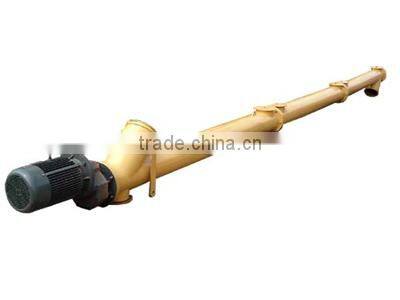

High Quality!!! Flexible Screw Conveyor

High Quality!!! Flexible Screw Conveyor thumbnail-1
High Quality!!! Flexible Screw Conveyor photo-1
US$ 3,000 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Screw Conveyor
Material:
Nylon
Contact Supplier Request Quote Chat Now
Shandong Lianchuang Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Screw Conveyor
Material Nylon
Material Feature Heat Resistant
Structure Conveyor System
Place of Origin Shandong, China
Brand Name lianchuang
Model Number 168 219 273 325, 219

Specifications

1.Adopt high-quality steel pipe with good integral rigidity.
2.Adopt double-pitch paddles

flexible scrow conveyor









Features

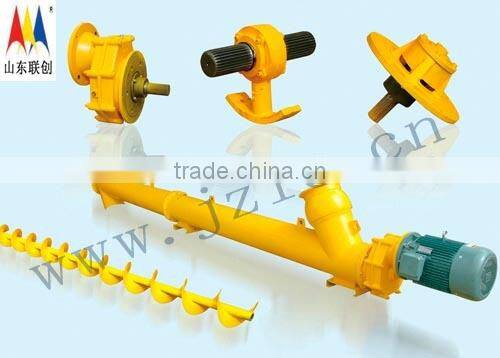

1. Adopt high-quality steel pipe with good integral rigidity.



2. Adopt double-pitch paddles, which decrease the compression degree of material when being transported.



3. Adopt high-quality reduction gear box with heavy-duty design, large torque and low noise.



4. Adopt optional universal ball joint, which facilitates installation, adjustment and steering.



5. Equipped with high-quality middle-hoisting bearing and tail bearing.



6. Sufficient spare parts with complete specification.



7. Large stock for common diameter of 165,219,273, 323 and 407, and dimension & angle can be customized according to your requirement.



8. Assembled by standard parts and components, which makes it convenient for transportation.



9. Adopt once-forming spiral double pitch paddles, which will adopt SIEMENS motor



Specifications

1) Leptospira diameter: 160/185/240/300mm
2) Max. conveying length: 12/13/15/18m
3) Max. conveying capacity: 25/35/45/70cbm/h





Technique Parameter

Pipe Diameter

ALLOW WORKING ANGLE

MAX CONVEYING LENGTH

TRANSPORT CAPABILITY

POWER

219

0-45

12

40

11KW

273

                  0-45

12

80

15KW





















 High Quality!!! flexible screw conveyorHigh Quality!!! flexible screw conveyorHigh Quality!!! flexible screw conveyor



Customized design is also available.
