Specifications
1.hydraulic integration design2.automatically control,
3.high efficiency concrete pump....

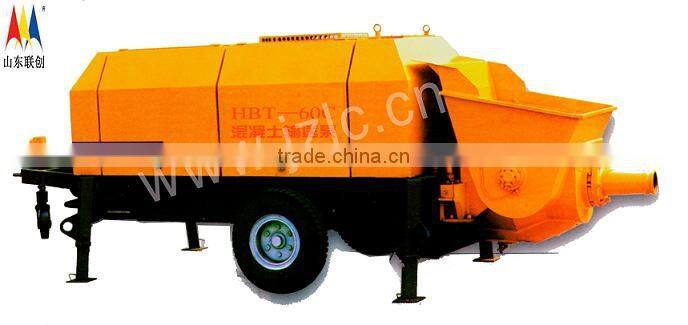

Concrete Pump HBT60
Innovation and advancement of this product: novel mechanical, electrical, and hydraulic integration design. Main motor adopts German Deutz and Volvo diesel engine; central hydraulic pump and valve adopts Germany Rexroth or Hawe products; pipe joint and hydraulic tubing adopt products imported from Germany and Italy; piston head adopts original products imported from Germany and implements global purchasing.
Item |
Unit |
Parameter |
Item |
Unit |
Parameter |
Theoretic conveying capacity low pressure |
m3/h |
/ |
Motor of diesel engine |
Kw |
118 |
Theoretic conveying capacity high pressure |
m3/h |
68 |
Hydraulic valve block |
Rexroth/Hawe |
German origin |
Theoretic concrete output pressure low pressure |
MPa |
/ |
Hydraulic oil tank capacity |
1 |
600 |
Theoretic concrete output pressure high pressure |
MPa |
11.3 |
Charge height |
mm |
1,300 |
Hydraulic system pressure |
MPa |
32 |
Bucket capacity |
m3 |
0.7 |
Rotate speed |
r/min |
2,300 |
Machine weight |
Kg |
6,180 |
High and low pressure exchange |
No |
Concrete slump |
mm |
120-230 |
|
Master cylinder diameter/pole diameter/travel |
mm |
ø120/ø80/1,800 |
Theoretic max vertical conveying height |
m |
200 |
Conveying cylinder diameter/travel |
mm |
ø200*1,800 |
|||
Main oil pump A11VL0190 |
ml/r |
190 |
Reversing times |
time/min |
21 |
Electric control of operation and control center adopts
Siemens technology, improving integrating stability and reliability of pump; self-tracking of pumping speed, as the main body starts, just pressing send button, the rotate speed will be automatically tracked according to the instruction. If the work need to be increased as the normal work is over 1,000r/min, just pressing the button, the main body will change upon the instruction. The pump has three operation structures, which can be operated in the machine or remote control. If there is accident, the hand standby accelerator device is available.
After-Sales Service:
1.Spare parts will be delivered as you need.
2.Engineers will go to clients’ site for guiding the installation and test-running;
3.Warranty period: 12 months since the installation and commisioning;
4.Service team will follow every placed order regularly till warranty period finished
