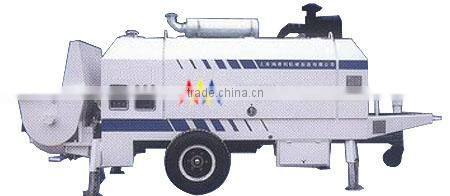

Ready Trailer Concrete Pump
US$ 300,000 - 4,000,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Power Type:
Gasoline
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Lianchuang Competitive Factory Price Concrete PumpUS$ 41,667 - 46,332MOQ: 1 Set -
High Quality! HBT60 Concrete PumpUS$ 1,000 - 10,000MOQ: 1 Set
-
2013 High Quality!Concrete Pump HBT60NegotiableMOQ: 1 Set
-
Ready Trailer Concrete Pump Diesel Engine or Electric MotorUS$ 20,000 - 30,000MOQ: 1 Set
-
Shandong High Quality Concrete PumpUS$ 15,000 - 30,000MOQ: 1 Set
Condition
New
Power Type
Gasoline
Place of Origin
Shandong, China
Brand Name
lianchuang
Model Number
HBT--60C
Specifications
Specifications:1. Powerful machine: adopting CATERPILLAR diesel engine
2. Import generator is optional
Introduction:
1.It is new generation concrete pump introduced domestic and foreign advanced technologies.
2.Main oil pump and valve adopts Germany Rexroth or Hawe products, with long service life, stable performance and long-time use.
3.Pipe joint and hydraulic tubing adopt products imported from Germany and Italy, with no leakage.
4.Hydraulic ram lifting changes the traditional ram lifting operated by jack (it can be selected by clients). In terms of some searing parts, such as wearable plate and spectacle plate, our R&D personnel research with Tsinghua University on friction and wearing. The product service life is about 30,000m3, higher than international famous brand.
5.Main electric system components adopts Switzerland ABB soft starter, effectively improving service life of high hydraulic pump and other components, stable startup.
6.Electrical control system components adopts original Siemens programmable controller (PLC), easy to operate, realizing remote control.
7.Through inspection by Shandong Institute of Supervision & Inspection on Product Quality and filed identification of national high-level experts, each performance index is better than enterprise standard and HBT trailer concrete pump reaches domestic advanced level.
Technical Index (for reference)
Item |
Unit |
Parameter |
Item |
Unit |
Parameter |
Theoretic conveying capacity low pressure |
m3/h |
80 |
Main motor power |
Kw |
90 |
Theoretic conveying capacity high pressure |
m3/h |
58 |
Power supply voltage/frequency |
V/Hz |
380/50 |
Theoretic concrete output pressure low pressure |
MPa |
7.3 |
Hydraulic oil tank capacity |
1 |
600 |
Theoretic concrete output pressure high pressure |
MPa |
12.3 |
Charge height |
mm |
1,300 |
Hydraulic system pressure |
MPa |
32 |
capacity |
m3 |
0.7 |
Rotate speed |
r/min |
1,480 |
Machine weight |
Kg |
6,180 |
High and low pressure exchange |
Yes |
Concrete slump |
mm |
120-230 |
|
Master cylinder diameter/pole diameter/travel |
mm |
ø125/ø80/1,800 |
Theoretic max vertical height |
m |
250 |
Conveying cylinder diameter/travel |
mm |
ø200/1,800 |
Reversing times |
time/min |
25 |
Main oil pump A11VLO260 |
ml/r |
260 |
pictures about our product

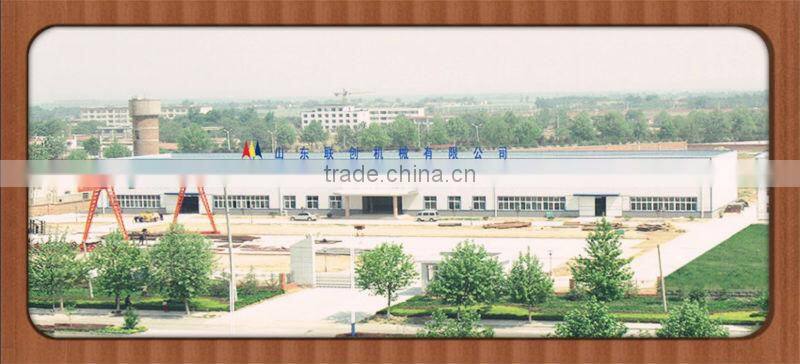

About our company
Shandong Lianchuang Machinery Co., Ltd. --located in Economic Development Zone, Jinan City, is a group of companies and enterprises. Company headquarters is mainly engaged in the development ,production, sales of concrete mixing equipment, Covers an area of 18,000 square meters,Construction area of 5000 square meters.
We have a technology development center and an electrical control of Technology and Electrical Center, Is mainly responsible for the development of new equipment and improvements, and to provide users with a strong technical services, Among them, the first batch of concrete mixing equipment to engage in Experts 2 senior experts,6 Senior technical staff, Mid-level technical personnel 25 people, First-line production of 160 skilled workers, Technical school graduates to 90% of them, Are holders of national technology sector and the labor department awarded a certificate. The company guarantee high quality products.
We have a technology development center and an electrical control of Technology and Electrical Center, Is mainly responsible for the development of new equipment and improvements, and to provide users with a strong technical services, Among them, the first batch of concrete mixing equipment to engage in Experts 2 senior experts,6 Senior technical staff, Mid-level technical personnel 25 people, First-line production of 160 skilled workers, Technical school graduates to 90% of them, Are holders of national technology sector and the labor department awarded a certificate. The company guarantee high quality products.
Now we mainly manufacture five products, including concrete mixing plants, concrete batching machines, concrete mixing stations, concrete pumps, and automation control instrument. Intelligent and low-failure-rate concrete pumps include HBT60, HBT80, HBT90, HBT100, and HBT120 types, as well as HBC80, HBC100 and HBC120 truck-mounted concrete pumps. German Hawe or Rexroth original hydraulic systems are available upon clients' request.
Our humanized and intelligent concrete mixing station series realize the low energy consumption, low noise and low dust discharge rate. At present, these products include HZS25, HZS40, HZS50, HZS60, HZS75, HZS80, HZS100 (120), HZS150 and HZS180 concrete mixing plants. Our mixing station is of double-horizontal-shaft forced type main body, computer control electrical system with Chinese interface, English interface or Russian interface, and is adopted the imported electrical applicant components.
Our humanized and intelligent concrete mixing station series realize the low energy consumption, low noise and low dust discharge rate. At present, these products include HZS25, HZS40, HZS50, HZS60, HZS75, HZS80, HZS100 (120), HZS150 and HZS180 concrete mixing plants. Our mixing station is of double-horizontal-shaft forced type main body, computer control electrical system with Chinese interface, English interface or Russian interface, and is adopted the imported electrical applicant components.
Relying on the operation philosophy of "technology guided, quality oriented, and considerate service", our company has actively developed markets both at home and abroad, enjoying a high reputation in Algeria, Kazakhstan, and the UAE, as well as over 20 provinces, cities, and municipalities in our country. In order to meet clients' demands, our company will invest more in technology, make full use of leading edge of technology, cooperate with world famous enterprise in the industry, improve product quality and reduce production cost by global purchasing and production in scale. Also we will further perfect the sales & service network, and provide concrete machinery with good quality and low price for worldwide construction enterprises.
IF you have any interests about our products.please contact us.We will sincerely supply first-class products and after-sale services to customers
