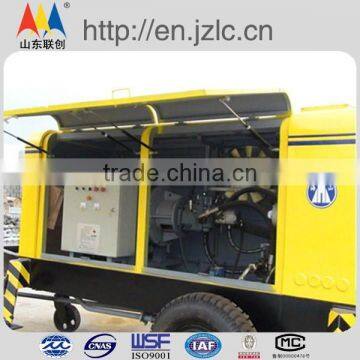

Help CenterLianchuang Competitive Factory Price Concrete Pump
Related Products
-
High Quality! HBT60 Concrete PumpUS$ 1,000 - 10,000MOQ: 1 Set -
2013 High Quality!Concrete Pump HBT60NegotiableMOQ: 1 Set
-
Ready Trailer Concrete Pump Diesel Engine or Electric MotorUS$ 20,000 - 30,000MOQ: 1 Set
-
Shandong High Quality Concrete PumpUS$ 15,000 - 30,000MOQ: 1 Set
-
Competitive Price Concrete PumpUS$ 15,000 - 30,000MOQ: 1 Set
Specifications
1. German Deutz motor and Volvo diesel engine;2. Rexroth or Hawe central hydraulic pump and valve
3. Concrete pump
1. Technical parameter
Parameter Name |
Unit |
Technical Data |
Remark |
Model |
|
HBT60.13.75S |
|
Theory output |
m3/h |
65/37 |
|
Theory pressure |
Mpa |
7/13 |
|
Approximate conveying distance |
m |
900 |
Level |
|
|
270 |
Vertical |
Delivery cylinder:diameter×journey |
mm |
220×1200 |
|
Motor power |
kW |
75 |
|
Hopper capacity |
L |
480 |
|
Feeding hight |
mm |
1400 |
|
Size: L×W×H |
mm |
4500*2160*2300 |
|
Approx. weight |
kg |
5000 |
|
Type |
|
S-valve Trailer Concrete Pump |
|
Grain size |
mm |
10—50,(Delivery pipe dia.)ø150 |
|
|
|
10—40,(Delivery pipe dia.)ø125 |
|
Slump |
mm |
100~230 |
|
2. Advantages
Main motor adopts German Deutz and Volvo diesel engine; central hydraulic pump and valve adopts Germany Rexroth or Hawe products; pipe joint and hydraulic tubing adopt products imported from Germany and Italy; piston head adopts original products imported from Germany and implements global purchasing. Electric control of operation and control center adopts Siemens technology, improving integrating stability and reliability of pump; self-tracking of pumping speed, as the main body starts, just pressing send button, the rotate speed will be automatically tracked according to the instruction. If the work need to be increased as the normal work is over 1,000r/min, just pressing the button, the main body will change upon the instruction. The pump has three operation structures, which can be operated in the machine or remote control. If there is accident, the hand standby accelerator device is available.

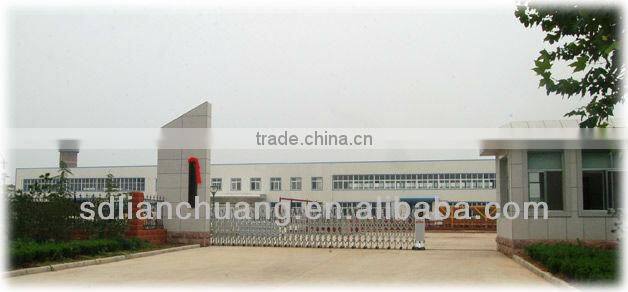

Located in Changqing Economic zone, Jinan City, Shandong Lianchuang Machinery Co., Ltd is one of the first companies manufacturing concrete batching plant, asphalt mixing plant and automatic control instrument and other construction machineries. As a high-tech modernized company, we mainly develop, manufacture and sell concrete batching plant, stone crusher, asphalt mixing plant and stabilized soil mixing plant, concrete mixer, concrete pump, mixer truck, pump truck and other construction machineries.
