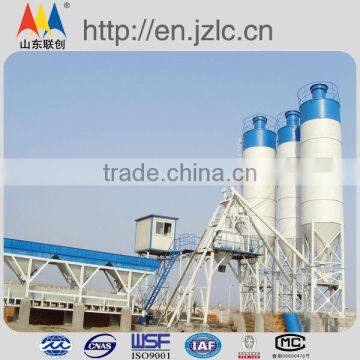

Help CenterLianchuang 75m3/h Ready Mixed Concrete Batching Plant
Related Products
-
HLS60 Ready Mix Concrete PlantUS$ 80,000 - 98,000MOQ: 1 Set -
HZS75 Complete Concrete Batching PlantNegotiableMOQ: 1 Set
-
High-quality!! Concrete Mixing Plant(HZS25-75)US$ 1 - 150,000MOQ: 1 Set
-
Hot Sale!!!!! Concrete Mixer PlantUS$ 97,900 - 163,200MOQ: 1 Set
-
Hls90 Concrete Batching Mixing PlantUS$ 95,000 - 122,000MOQ: 1 Set
Specifications
1. Accurate and reliable weighing2. Well-dosed and efficient mixing
3. Easy to install
4.JS horizonal shaft mixer
Main introdution
1. The concrete mixing plant has intellectually automatic function;
2. It is intermittent and compulsory concrete batching plant;
3. It has the function of maginificient outside.high productivity
4. It can be used in many manners of combining and material conveyance;
5. It can produce dry-rigid,half dry-rigid, plastic and each distribution ratio concrete.
6. It is the ideal equipment for construction of large and medium-sized construction project
such as waterpower engineering, highway,port
and manufacturers of large fabricated parts and commodity concrete.
Main parameter
| Model | HZS25 | HZS40 | HZS50 | HZS75 |
| Max productivity(m3/h) | 25 | 40 | 50 | 75 |
| Mixer | JS500 | JS750 | JS1000 | JS1500 |
| Storage hopper capacity(m3) | 3x4 | 3x5 | 3x6 | 3x7 |
| Max diameter of aggregate(mm) | 60/80 | 60/80 | 60/80 | 60/80 |
| Discharge height(m) | 3.8 | 3.8 | 3.8 | 3.8 |
| Charge Height(m) | 2.7 | 2.7 | 2.9 | 2.9 |
| Aggregate measuring accuracy(%) | ±2 | ±2 | ±2 | ±2 |
| Cement measuring accuracy(%) | ±1 | ±1 | ±1 | ± |
| Fly ash measuring accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Water measuring accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Additive measuring accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Total power(kw) | 35 | 50 | 60 | 85 |
| Total weight(kg) | 14000 | 18000 | 25000 | 35000 |
1.Spare parts will be delivered as you need.
2.Engineers will go to clients’ site for guiding the installation and test-running;
3.Warranty period: 12 months since the installation and commisioning
4.Service team will follow every placed order regularly till warranty period finished
