Specifications
Ready-Mixed Concrete Batching Plant1. Accurate and reliable weighing
2. Well-dosed and efficient mixing
3. Easy to instal
HLS Series Concrete batching plant
Main Technical Parameters | ||||||
Model |
HLS60 |
HLS90 |
HLS120 |
HLS180 |
HLS200 |
|
Production(m³/h) |
60 |
90 |
120 |
180 |
200 |
|
Mixer |
Type |
JS1000 |
JS1500 |
JS2000 |
JS3000 |
JS4000 |
Power(Kw) |
2*22 |
2*30 |
2*37 |
2*55 |
2*75 |
|
Output(m³) |
1 |
1.5 |
2 |
3 |
4 |
|
Grain Size(mm) |
≤60 |
≤80 |
≤120 |
≤150 |
≤150 |
|
Batcher |
Hopper Capacity(m³) |
13 |
15 |
20 |
25 |
30 |
Hopper Quantily(pc) |
4 |
4 |
4 |
4 |
4 |
|
Belt Conveyor Capacity(t/h) |
200 |
300 |
400 |
500 |
600 |
|
Weighing Scope And Accuracy |
Aggregate(Kg) |
3000±1% |
4000±2% |
5000±2% |
6000±2% |
9000±2% |
Cement(Kg) |
600±1% |
900±1% |
1200±1% |
1800±1% |
2400±1% |
|
Aduiterant(Kg) |
300±1% |
400±1% |
600±1% |
800±1% |
1000±1% |
|
Water(Kg) |
350±1% |
600±1% |
600±1% |
800±1% |
1000±1% |
|
Admixture(Kg) |
30±1% |
30±1% |
50±1% |
50±1% |
50±1% |
|
Total Power(kw) |
≈78 |
≈102 |
≈145 |
≈196 |
≈245 |
|
Discharge Height(m) |
3.8 |
3.8 |
3.8 |
3.8 |
3.8 |
|
Excellent performance

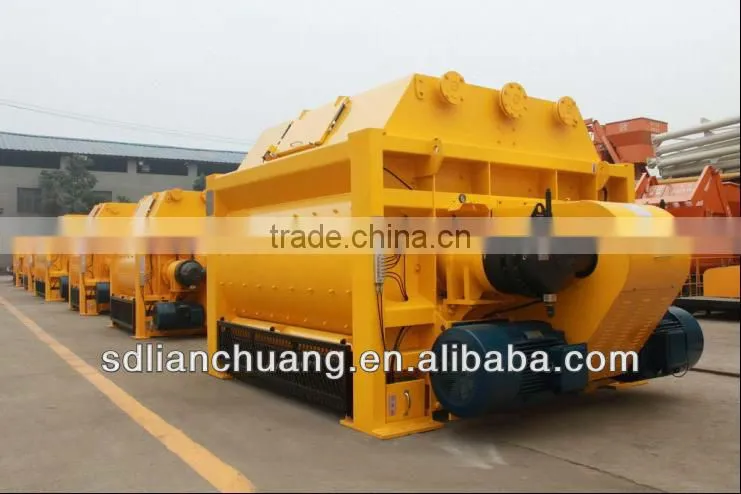

Suitablefor various sites like roads, bridges, dams, airports and seaports.Twinhorizontal shaft mixer of powerful mixing capacity, excellent mixingquality, fast and high production rate.
High reliability
Mixer liner and paddles with special shafts and sealing .International branded electrical components.
Accurate weighing
Imported weighing and control components; speed of 120t/s, ensuring accuracy and reliability
Excellent maintenance
Platforms and ladders for observe maintenance and operation.
Industrial design 1. Beautiful industrial design of ergonomics & aesthetics closely combined
2. An artwork, comfortable to operate and easy to maintain
3. Rigorous logical thinking, profound design concept, comprehensive agronomical process and accurate detail design
Convenient site-transfer and installation
1. Modular structure: independent batcher, belt conveyor, mixing tower, screw conveyor and cement silo;
2. Easy and speedy to disassemble and install.
Outstanding environment production
1. All powder materials are handled in wind tight situation;
2. Wind tight mixing tower and aggregate belt conveyor.

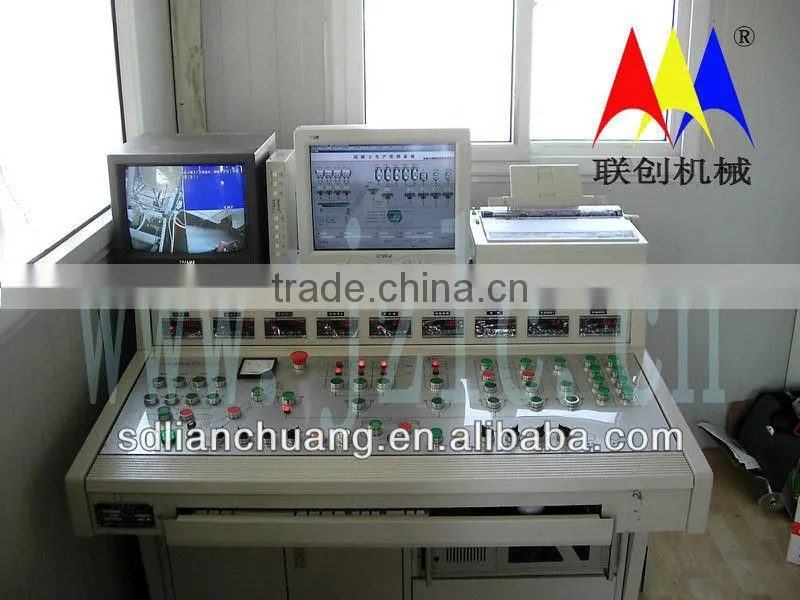

Control system
The hardware that contains IPC, I/O modules and high accuracy weighingmodules, enables data collection and fully auto control of concreteproduction as per proportioning requirement and quality control.Real-time production data recording available, ability to find or printvarious production reports by database management. With reasonablehardware configuration, global procurement of components andinternational branded components preferential. The whole system isstable, powerful and easy.
1 Auto continuous production 2 Auto calculation on batch quantity and quality batch on the total batch quantity, manual error minimized 3 Auto offset. Auto compensation and auto adjustment 4 Auto adjustment on aggregate moisture
