Specifications
1.world famous electric component2.three or four hopper

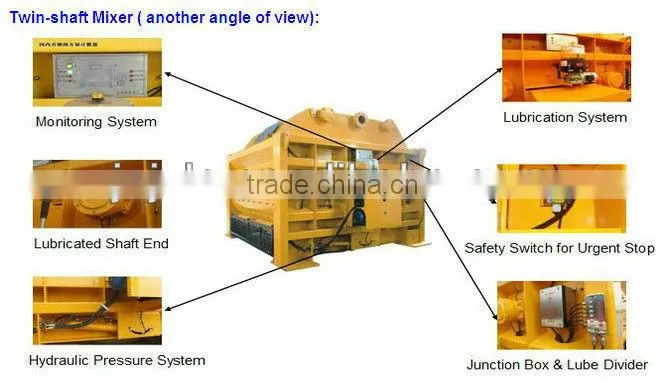

3.sicama mixerJS1500
4.belt conveyor liftting

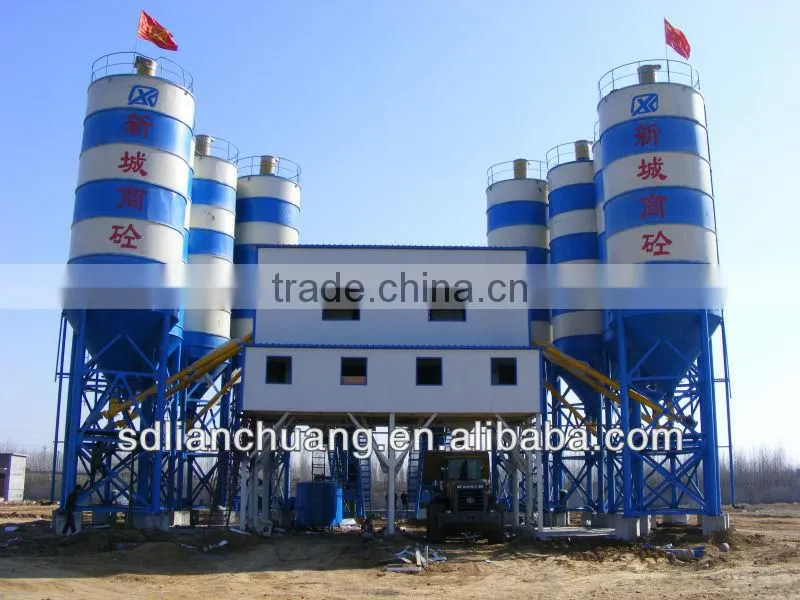

General introduction of the plant
1. The concrete mixing plant has intellectually automatic function;
2. It is intermittent and compulsory concrete batching plant;
3. It has the function of maginificient outside.high productivity
4. It can be used in many manners of combining and material conveyance;
5. It can produce dry-rigid,half dry-rigid, plastic and each distribution ratio concrete.
6. It is the ideal equipment for construction of large and medium-sized construction project
such as waterpower engineering, highway,port and manufacturers of large fabricated parts
and commodity concrete.
Main parameter
| Model | HLS60 | HLS90 | HLS120 | HLS180 |
| Rated productivity ( m3/h) | 60 | 90 | 120 | 180 |
| Matching mixer | JS1000 | JS1500 | JS2000 | JS3000 |
| Storage bin capacity (m3) | 3×10 | 3×16 | 4×20 | 4×20 |
| Discharging height (m) | 3.8 | 3.8 | 3.8 | 3.8 |
| Total power (kw) | 78 | 112 | 150 | 198 |
| Aggregate measuring accuracy (%) | ±2 | ±2 | ±2 | ±2 |
| Cement measuring accuracy( %) | ±1 | ±1 | ±1 | ±1 |
| Water measuring accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Fly ash measuring accuracy( %) | ±1 | ±1 | ±1 | ±1 |
| Additive measuring accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Total weight( Kg) | 40000 | 43000 | 70000 | 85000 |
After-Sales Service
1.Spare parts will be delivered as you need.
2.Engineers will go to clients’ site for guiding the installation and test-running;
3.Warranty period: 12 months since the installation and commisioning;
4.Service team will follow every placed order regularly till warranty period finished
