Specifications
HLS120 concrete mixing plant1.High standard environment protection
2.Superior mixing performance
3.PLC control system
HLS120 Concrete Mixing Plant
HLS120 Concrete Mixing Plant Description
Excellent performance
Suitablefor various sites like roads, bridges, dams, airports and seaports.Twinhorizontal shaft mixer of powerful mixing capacity, excellent mixingquality, fast and high production rate.
High reliability
Mixer liner and paddles with special shafts and sealing .International branded electrical components.
Accurate weighing
Imported weighing and control components; speed of 120t/s, ensuring accuracy and reliability
Excellent maintenance
Platforms and ladders for observe maintenance and operation.
Industrial design
1. Beautiful industrial design of ergonomics & aesthetics closely combined
2. An artwork, comfortable to operate and easy to maintain
3. Rigorous logical thinking, profound design concept, comprehensive agronomical process and accurate detail design
Convenient site-transfer and installation
1. Modular structure: independent batcher, belt conveyor, mixing tower, screw conveyor and cement silo;
2. Easy and speedy to disassemble and install.
Outstanding environment production
1. All powder materials are handled in wind tight situation;
2. Wind tight mixing tower and aggregate belt conveyor.
HLS120 Concrete Mixing Plant Technical Parameter:
| Model | HLS60 | HLS90 | HLS120 | HLS180 |
| Rated productivity ( m3/h) | 60 | 90 | 120 | 180 |
| Matching mixer | JS1000 | JS1500 | JS2000 | JS3000 |
| Storage bin capacity (m3) | 3×15/4×15 | 3×15/4×15 | 4×20 | 4×30 |
| Discharging height (m) | 3.8 | 3.8 | 3.8 | 3.8 |
| Total power (kw) | 78 | 112 | 150 | 198 |
| Aggregate measuring accuracy (%) | ±2 | ±2 | ±2 | ±2 |
| Cement measuring accuracy( %) | ±1 | ±1 | ±1 | ±1 |
| Water measuring accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Fly ash measuring accuracy( %) | ±1 | ±1 | ±1 | ±1 |
| Additive measuring accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Total weight( Kg) | 40000 | 43000 | 70000 | 85000 |

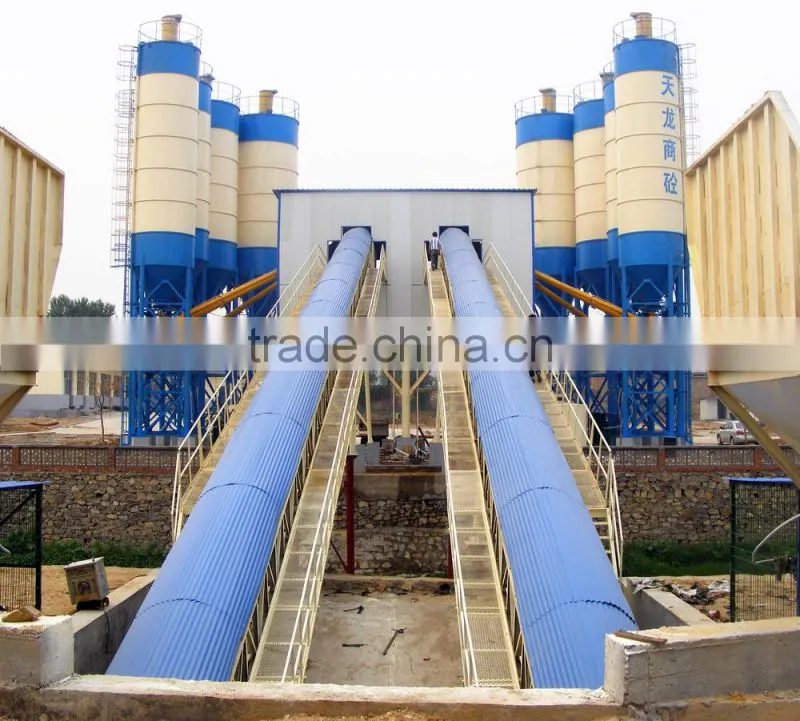

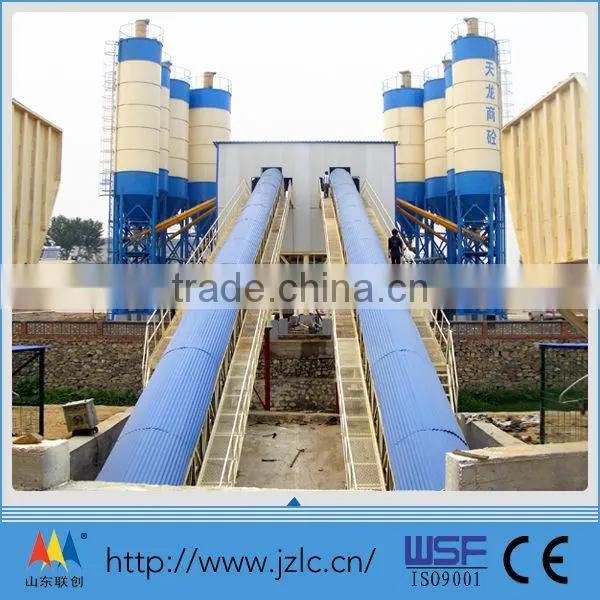

HLS120 Concrete Mixing Plant Picture:
HLS120 Concrete Mixing Plant Drawing:
HLS120 Concrete Mixing Plant Pictures in detail:
HLS120 Concrete Mixing Plant Processing:
Our Factory:
HLS120 Concrete Mixing Plant Cases:
Foreign Exhibition
Our services:
As a professional exporter,our target is to serve worldwide clients with high-quality products,greatreliability,devoted responsibility,professional services and honorable credibility to meet customers' requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.
About after-sales and Packaging team:
1.Spare parts will be delivered as you need.
2.Engineers will go to clients’ site for guiding the installation and test-running;
3.Warranty period: 12 months since the installation and commisioning;
4.Service team will follow every placed order regularly till warranty period finished
For any question, please inform us freely, we are assure you of best services at all times!
