Specifications
Concrete Batching Plant 180m3/h:1automatic control plant
2wide application
3professional manufacturer
4JS3000 mixer
Cement concrete mixing plant
1.Technical parameter
Main Technical Parameters | ||||||
Model |
HLS60 |
HLS90 |
HLS120 |
HLS180 |
HLS200 |
|
Production(m³/h) |
60 |
90 |
120 |
180 |
200 |
|
Mixer |
Type |
JS1000 |
JS1500 |
JS2000 |
JS3000 |
JS4000 |
Power(Kw) |
2*22 |
2*30 |
2*37 |
2*55 |
2*75 |
|
Output(m³) |
1 |
1.5 |
2 |
3 |
4 |
|
Grain Size(mm) |
≤60 |
≤80 |
≤120 |
≤150 |
≤150 |
|
Batcher |
Hopper Capacity(m³) |
13 |
15 |
20 |
25 |
30 |
Hopper Quantily(pc) |
4 |
4 |
4 |
4 |
4 |
|
Belt Conveyor Capacity(t/h) |
200 |
300 |
400 |
500 |
600 |
|
Weighing Scope And Accuracy |
Aggregate(Kg) |
3000±1% |
4000±2% |
5000±2% |
6000±2% |
9000±2% |
Cement(Kg) |
600±1% |
900±1% |
1200±1% |
1800±1% |
2400±1% |
|
Aduiterant(Kg) |
300±1% |
400±1% |
600±1% |
800±1% |
1000±1% |
|
Water(Kg) |
350±1% |
600±1% |
600±1% |
800±1% |
1000±1% |
|
Admixture(Kg) |
30±1% |
30±1% |
50±1% |
50±1% |
50±1% |
|
Total Power(kw) |
≈78 |
≈102 |
≈145 |
≈196 |
≈245 |
|
Discharge Height(m) |
3.8 |
3.8 |
3.8 |
3.8 |
3.8 |
|
2.Detailed pictures

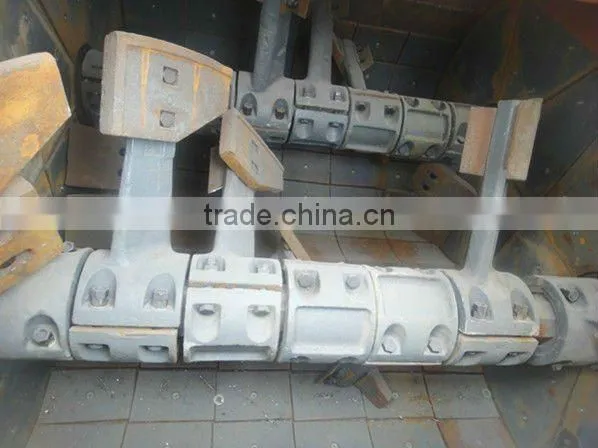

mixer

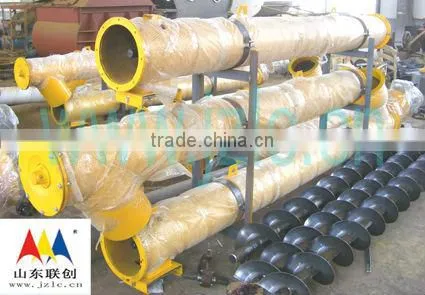

screw conveyor

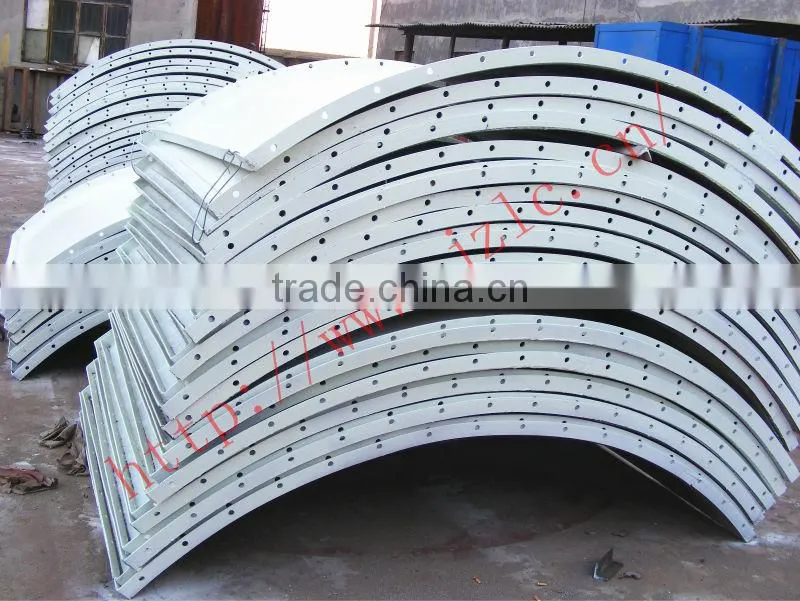

sheet cement silo

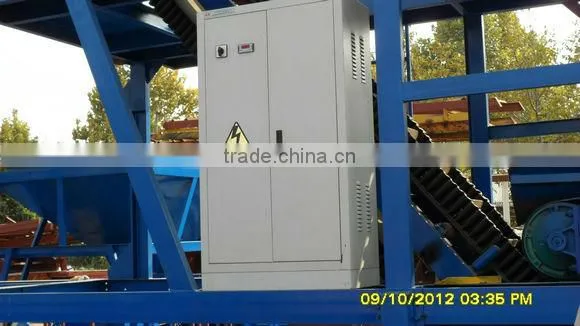

control system

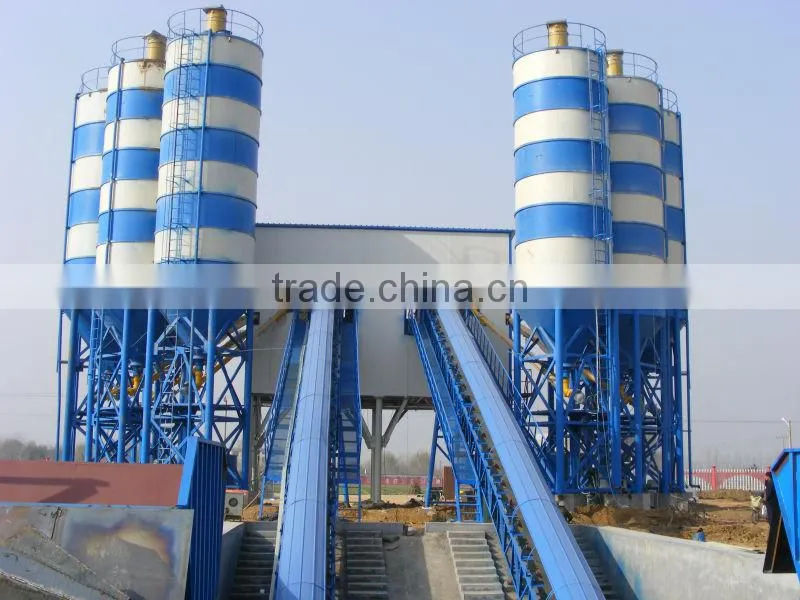

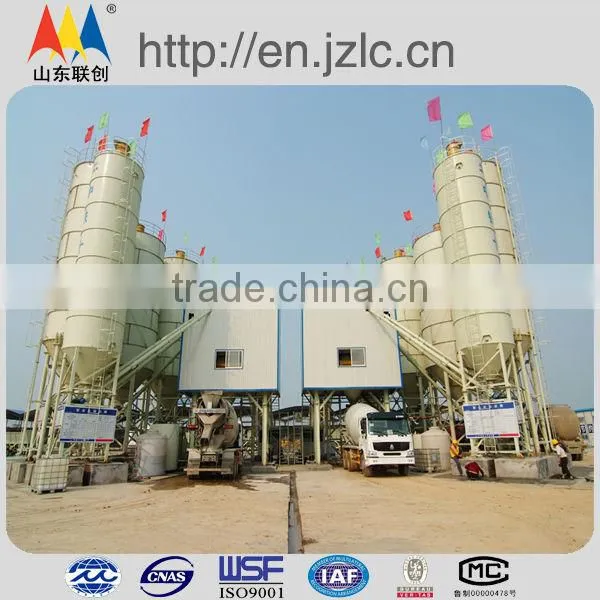

batching plant
discharge parts
3.After-sales services
1.Spare parts will be delivered as you need.
2.Engineers will go to clients’ site for guiding the installation and test-running;
3.Warranty period: 12 months since the installation and commisioning;
4.Service team will follow every placed order regularly till warranty period finished
4.Certification
ISO certificate
Environment certificate
5.Customer visiting
6.Foreign exhibition
Welcome you come to our factory.
