Specifications
HZS50 concrete mixerJS1000 Twin shaft
HZS50 Concrete Mixing Plant
The concrete mixing plant of this series has intellectually automatic function. It belongs to intermittent forced mixing station.
It’s the ideal equipment for constructions of middle-small buildings,roads and bridges, the tube piles and cement precast factories.
HZS50 Concrete Mixing Plant Technical Parameters
Model |
HZS50 |
|
Production capacity: m3/h |
50 |
|
Mixer |
JS1000 |
|
Scale measure/preciseness |
Aggregate:kg |
1000±2% (Belt discharge) |
2000±2% (Cylinder operated discharge) | ||
Sand: kg |
1000±2% (Belt discharge) |
|
2000±2% (Cylinder operated discharge) | ||
fly ash :kg |
200±1kgchoice according to request of user |
|
Cement: kg |
500±1% |
|
Water :kg |
400±1% |
|
Additive: kg |
50±1% |
|
Aggregate feed bins and volume(default) |
3x6m3 |
|
|
Note: Bins compartments, volume and installation can be adjusted according to customers requests | ||
Aggregate conveyor |
Groove belt feeder or bucket feeder, can be adjusted according to customers requests |
|
Filler scale(default) |
1 unit |
|
Note: Quantity of filler scales can be adjusted according to customers requests | ||
Full automatic control mode(default) |
One independent control system for each plant |
|
Monitoring system(default)( |
None |
|
Outer packaging: (default) |
None |
|
Storage silos |
Capacity, quantity and auxiliary are supplied upon customers requestment. |
|
Assembly power |
60 kW |
|
|
External dimension (L*W*H)
|
According to the model of disposition and layout
|
|

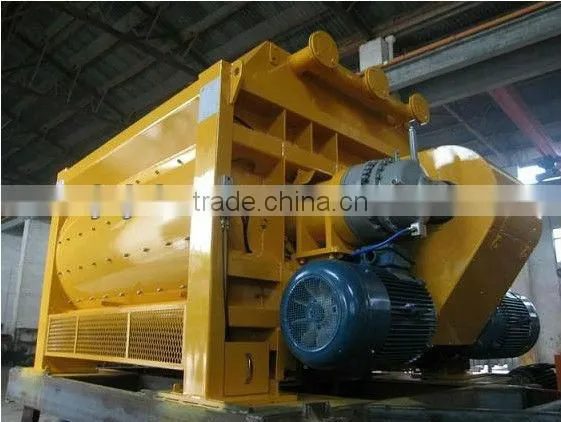

JS1000 concrete mixer & Computer control system

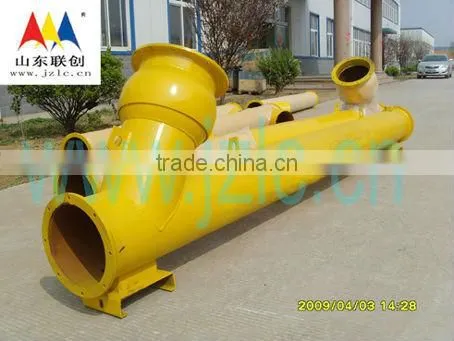

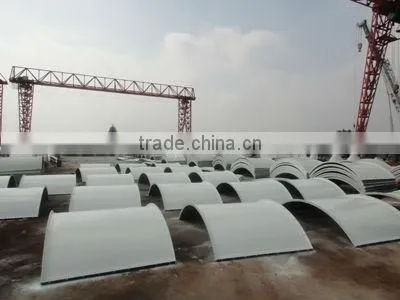

Sheet cement silo& Screw Conveyor
1.What are the merits of our concrete mixing plants?
The concrete mixing plant of this series has intellectually automatic function. It belongs to intermittent forced mixing station. The customers are satisfactory with its characteristics like compact structure, flexible arrangement, less investment,and convenient assembly and disassembly.
2. What is the usage for our concrete mixing plants ?
It can use many manners of combining and chargingaccording to customers’ needs. It can produce dry-rigid,half dry-rigid ,plastic ,and every distribution ratio concrete and use the mixing technology of wrapping-stone mode which can improve the quality of concrete greatly.
3.Do you have other model?
Now we have HZS25,HZS40,HZS50,HZS75,HZS90 and any other types available.
Model |
HZS25 |
HZS40 |
HZS50 |
HZS75 |
Max theory productivity(m3/h) |
25 |
35 |
50 |
75 |
Mixer |
JS500 |
JS750 |
JS1000 |
JS1500 |
Storage bucket capacity(m3) |
3×3 |
3×4 |
3×6 |
3×8(12) |
Maximum size of aggregate(mm) |
60/80 |
60/80 |
60/80 |
60/80 |
Discharge height(m) |
1.7-3.8 |
1.7-3.8 |
1.7-3.8 |
1.7-3.8 |
Charge height(m) |
2.7 |
2.7 |
2.9 |
2.9 |
Aggregate measuring accuracy(%) |
±2 |
±2 |
±2 |
±2 |
Cement measuring accuracy(%) |
±1 |
±1 |
±1 |
±1 |
Fly ash measuring accuracy(%) |
±1 |
±1 |
±1 |
±1 |
water measuring accuracy(%) |
±1 |
±1 |
±1 |
±1 |
additive measuring accuracy(%) |
±1 |
±1 |
±1 |
±1 |
Power(kw) |
35 |
50 |
60 |
85 |
Total weight(kg) |
14000 |
18000 |
19000 |
35000 |
4.Can we trust your product quality ??
Yes.you can!!!
Our company is ISO9001 quality certification through the earlier construction machinery, And the adoption of environmental certification in 2007 .

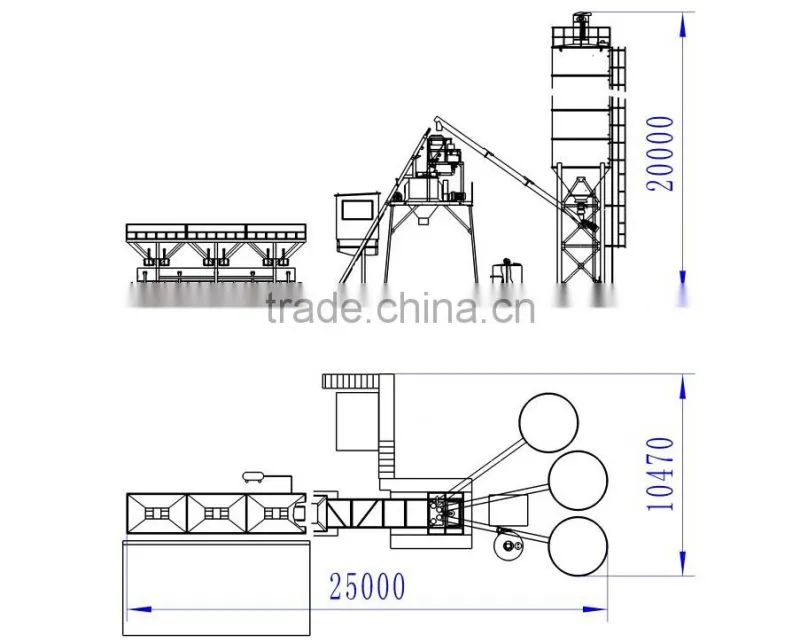

HZS50 Ready Mixed Concrete Batching Plant Drawing:

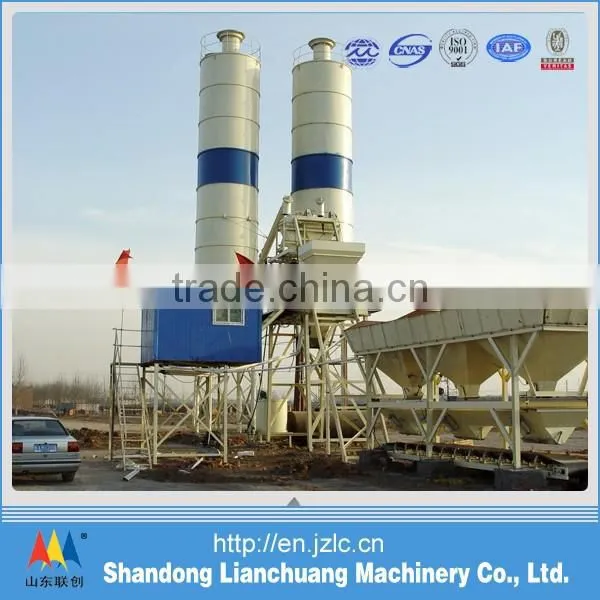

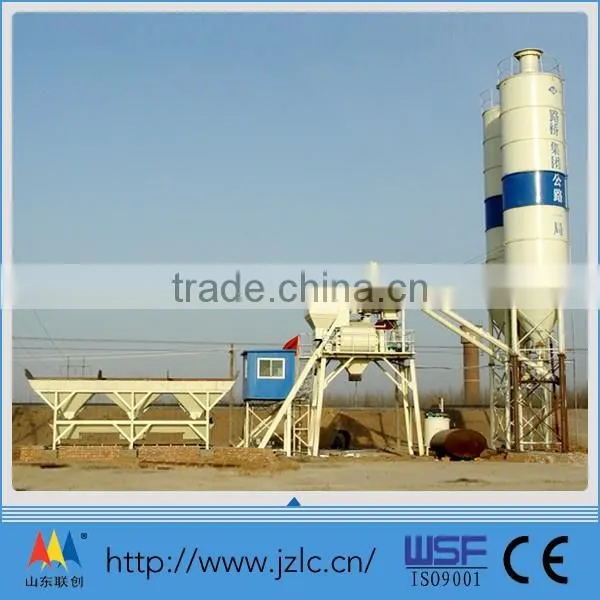

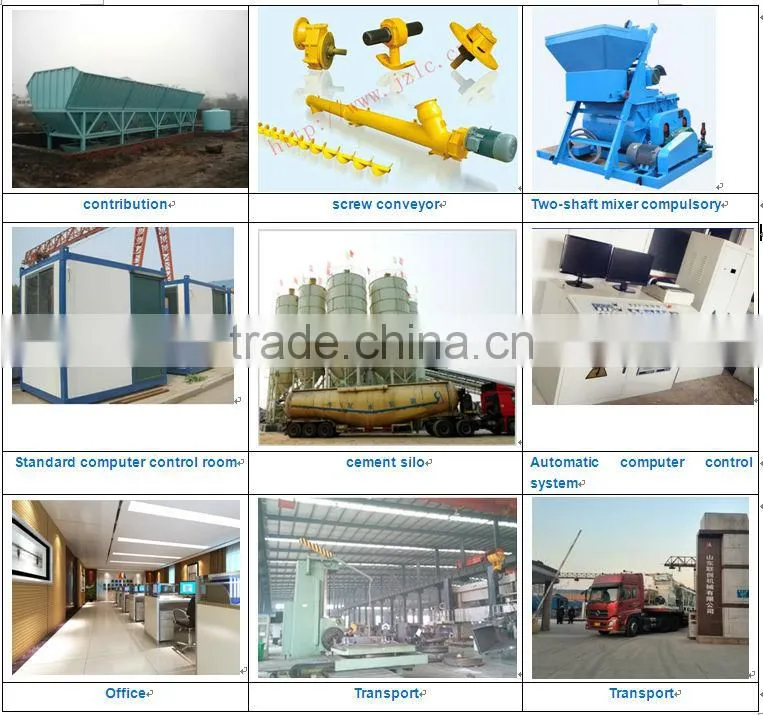

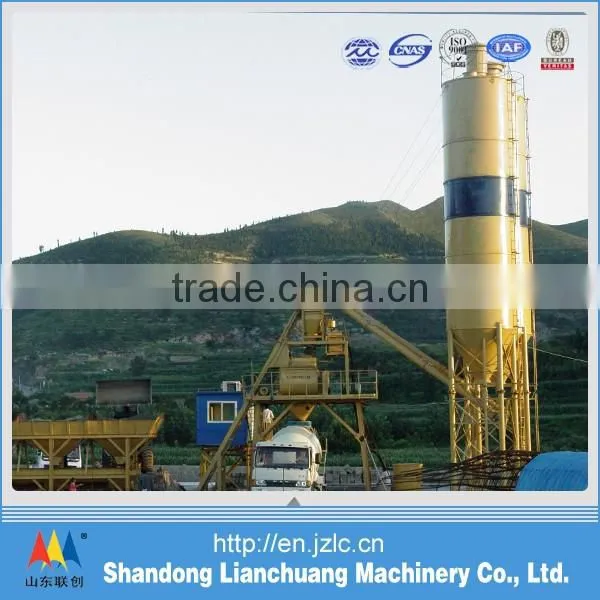

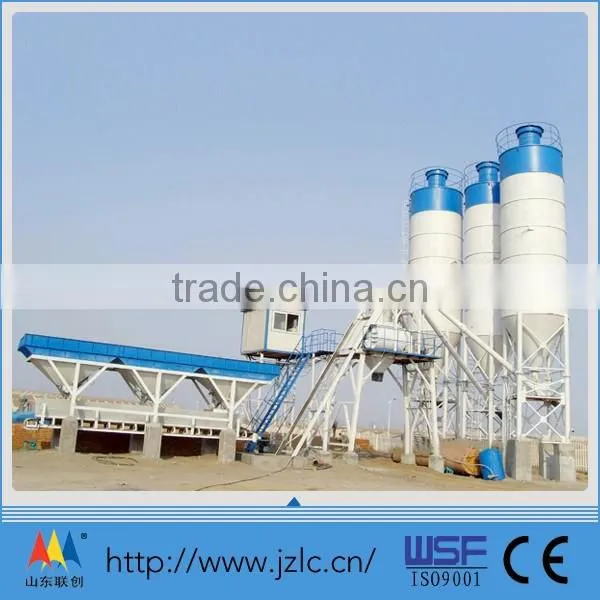

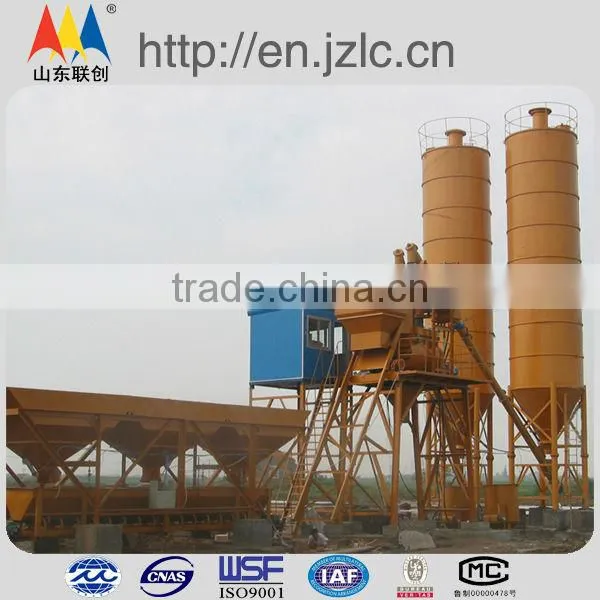

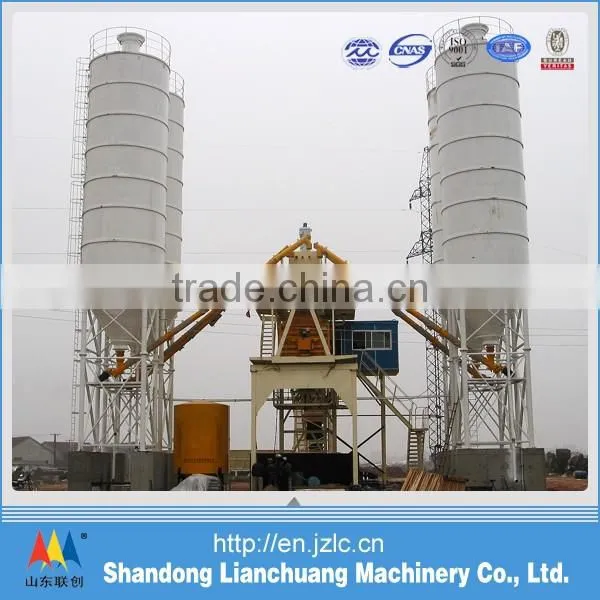

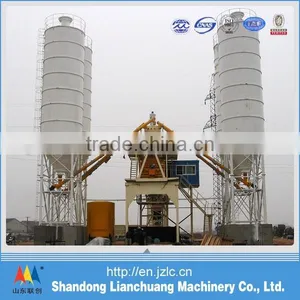

HZS50 Ready Mixed Concrete Batching Plant Pictures in detail
About after-sales and Packaging team:
1.Spare parts will be delivered as you need.
2.Engineers will go to clients’ site for guiding the installation and test-running;
3.Warranty period: 12 months since the installation and commisioning;
4.Service team will follow every placed order regularly till warranty period finished
