Specifications
HZS40 Complete Concrete Batching Plant1.Twin-shaft compulsory mixer
2.PLC control system
3.12 months garantee
HZS40 Complete Concrete Batching Plant HZS40
HZS40 Complete Concrete Batching Plant HZS40 Product characteristics:
1.Adopt JS series double-horizontal-shaft forced type concrete mixer with better stirring quality and higher efficiency.
2.With modular organization, it is easy to be installed and moved.
3.Adopt electronic weigher to measure the aggregate,powder,liquid material with high precision.
4.With the imported components, the electrical control system has many advantages, such as reliable performance,easy to operate and so on.
HZS40 Complete Concrete Batching Plant HZS40 Description :
Made up of the burdening,stirring,electrical control system and so on, HZS series concrete batching plant is a full automation complete equipment with high precise microcomputer control system as well as single manual control, besides, the machine is equipped with matching memory,difference autocompensation and printing system, and so it can complete preconcerted production automatically.
This equipment applies to the concrete construction for industry and civil construction, such as highway,railway,bridge,electric power,irrigation works,port,air port and so on.
HZS40 Complete Concrete Batching Plant HZS40 Technical paramer
| Model | HZS25 | HZS40 | HZS50 | HZS75 |
| Max productivity(m3/h) | 25 | 40 | 50 | 75 |
| Mixer | JS500 | JS750 | JS1000 | JS1500 |
| Storage hopper capacity(m3) | 3x4 | 3x5 | 3x6 | 3x7(12) |
| Max diameter of aggregate(mm) | 60/80 | 60/80 | 60/80 | 60/80 |
| Discharge height(m) | 3.8 | 3.8 | 3.8 | 3.8 |
| Charge Height(m) | 2.7 | 2.7 | 2.9 | 2.9 |
| Aggregate measuring accuracy(%) | ±2 | ±2 | ±2 | ±2 |
| Cement measuring accuracy(%) | ±1 | ±1 | ±1 | ± |
| Fly ash measuring accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Water measuring accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Additive measuring accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Total power(kw) | 35 | 50 | 60 | 85 |
| Total weight(kg) | 14000 | 18000 | 25000 | 35000 |

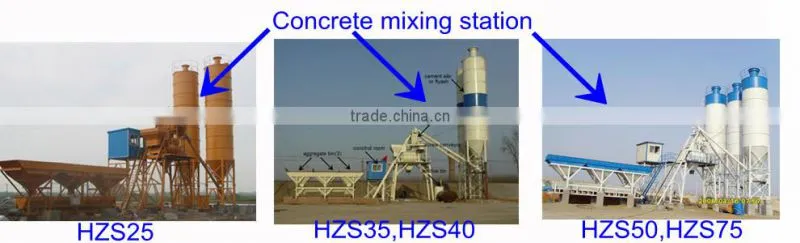

HZS40 Complete Concrete Batching Plant HZS40 Pictures:
Work shop
Certificate:
Exhibition:
Our services:
As a professional exporter,our target is to serve worldwide clients with high-quality products,greatreliability,devoted responsibility,professional services and honorable credibility to meet customers' requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.
About after-sales and Packaging team:
1.Spare parts will be delivered as you need.
2.Engineers will go to clients’ site for guiding the installation and test-running;
3.Warranty period: 12 months since the installation and commisioning;
4.Service team will follow every placed order regularly till warranty period finished
For any question, please inform us freely, we are assure you of best services at all times!
