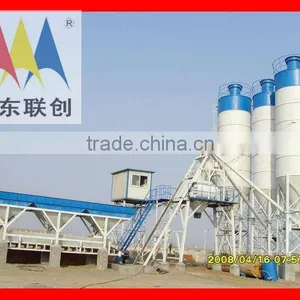

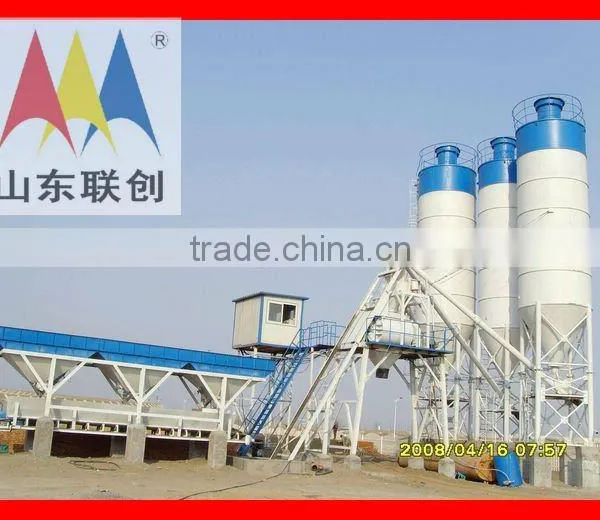

HZS 50Concrete Mixing Station

Name: HZS 50Concrete Mixing Station
Brand: Lianchuang
SKU: 139854937
Availability: InStock

US$ 1 - 50,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Lianchuang

Shandong Lianchuang Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name Lianchuang

Model Number HZS50

Specifications

Port: any seaport in China
Minimum Order Quantity: 1 Set/Sets
Supply Ability: 10Set/Sets per Month
Payment Terms: L/C,T/T

Model :HZS50 concrete batchig plant have good appearance, and high productivity, easy to maintain, and belongs to intermittent forced type mix

The main characteristics of the concrete mixing plant series as follows:

1. Adopting twin forced horizontal shafts stirrer

2. The aggregate is measured alone or accumulated by the electronic scale

3. Water and the additive are measured accurately under the centralized control of

the computer

4. The whole machine adopts PC to control, which is easy to operate and debug

5. Model for feeding aggregate: belt transfer

6. The main electric elements are the devices of Schneider in France; the programmable controller is the product of well-known brand

Main technical parameter

Model	HZS25	HZS40	HZS50	HZS75
Production rate m³/h	25	40	120	180
Matching stirring mill	JS500	JS750	JS1000	JS1500
Storage bin capacity m³	3X3	3×4	4×7	3X8(12)
Discharging height m	1.7-3.8	1.7-3.8	1.7-3.8	1.7-3.8
Total power kW	35	50	60	85
Aggregate measuring accuracy %	±2	±2	±2	±2
Cement measuring accuracy %	±1	±1	±1	±1
Water measuring accuracy %	±1	±1	±1	±1
Fly ash measuring accuracy %	±1	±1	±1	±1
Additive measuring accuracy %	±1	±1	±1	±1
Total weight Kg	14000	18000	25000	35000
