Specifications
concrete batching plant1. Environment-friendly protection 2. Less investment, long useful life1 China famous brand3 exported t
The main characteristics of the concrete mixing plant series as follows:
1. Adopting twin forced horizontal shafts stirrer
2. The aggregate is measured alone or accumulated by the electronic scale
3. Water and the additive are measured accurately under the centralized control of
the computer
4. The whole machine adopts PC to control, which is easy to operate and debug
5. Model for feeding aggregate: belt transfer
6. The main electric elements are the devices of Schneider in France; the programmable controller is the product of well-known brand
Technical Parameters of concrete mixing plant HLS120
Total system |
Model |
HZS60 |
HZS80 |
HZS100 |
HZS150 |
Max productivity (under standard conditions) |
60m3/h |
80m3/h |
100m3/h |
150m3/h |
|
Discharge height |
4,000mm |
4,000mm |
4,000mm |
4,000mm |
|
Working time |
60s |
60s |
60s |
60s |
|
Mixer |
Mixer model |
JS1000 |
JS1500(LS15) |
JS2000(LS20A) |
JS3000(LS30) |
Charging capacity/discharging capacity |
1,600L/1,000L |
2,400L/1,500L |
3,200L/2,000L |
4,500L/3,000L |
|
Mixing motor power |
2×18.5 Kw |
2×30 Kw |
2×37 Kw |
2×55 Kw |
|
Allowable max diameter of gravel/scree |
60/80mm |
60/80mm |
60/80mm |
80/100mm |
|

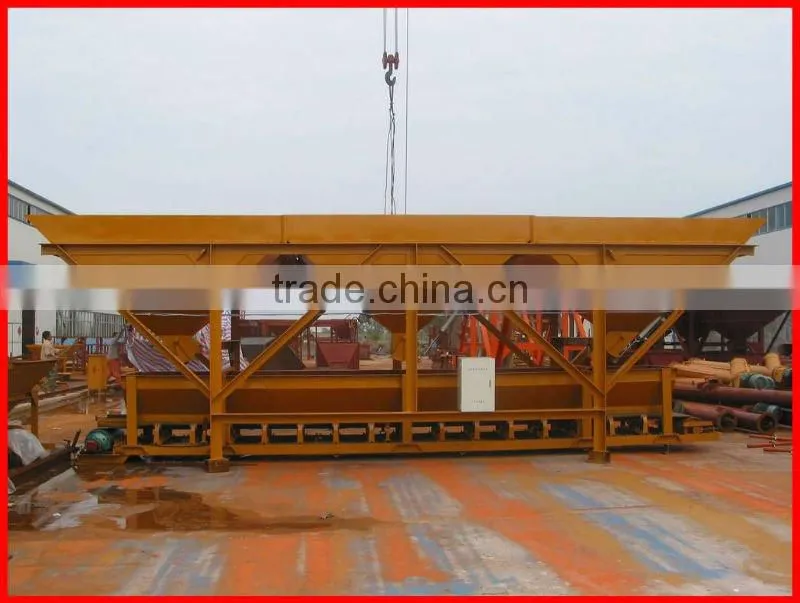

Batching machine |
Motor power |
5.5Kw |
5.5Kw |
5.5Kw |
7.5Kw |
Max capacity |
3,000Kg |
4,000Kg |
5,000Kg |
5,500Kg |
|
Batching period |
≤50s |
≤50s |
≤50s |
≤50s |
|

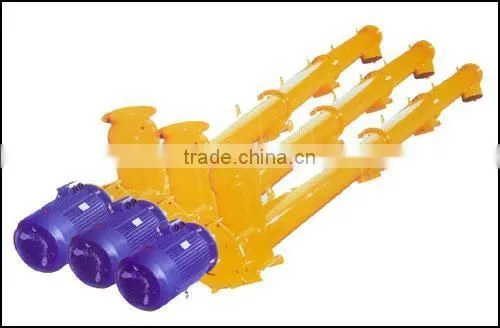

Screw conveyor |
Conveying capacity |
40t/h |
60t/h |
90t/h |
120t/h |
Motor power |
11Kw |
15Kw |
15Kw |
18.5Kw |
|
Angle |
45° |
45° |
30° |
21° |
|
Fly ash screw conveyor |
Conveying capacity |
20t/h |
40t/h |
40t/h |
60t/h |
Motor power |
7.5Kw |
11Kw |
11Kw |
15Kw |
|
Angle |
45° |
45° |
30° |
21° |
|
Batch feeder |
Conveying capacity |
300t/h |
480t/h |
600t/h |
720t/h |
Width |
B=750 |
B=800 |
B=800 |
B=1,000 |
|
Power |
15Kw |
22Kw |
37Kw |
45Kw |
|
Weighing system |
Aggregate measuring accuracy |
±2 |
±2 |
±2 |
±2 |
Powder measuring accuracy |
±1 |
±1 |
±1 |
±1 |
|
Water additive weighing precision |
±1 |
±1 |
±1 |
±1 |
|
Hydraulic system |
Air compressor model |
2V-0.17/10 |
2V-0.17/10 |
2V-0.3/10 |
3W-0.6/10 |
Motor power |
1.5Kw |
1.5Kw |
3Kw |
5.5Kw |
|
Water supply system |
Pump model |
QY25-25-3 |
QS50-20-5.5S |
GB80-30 |
GB80-30 |
Motor power |
3Kw |
5.5Kw |
7.5Kw |
7.5Kw |
|
Pump head |
10m |
18m |
30m |
30m |
|
Additive system |
Additive pump model |
32FS |
32FS |
32FS |
40FS |
Motor power |
1.5Kw |
2.2Kw |
2.2Kw |
2.2Kw |
|
Pump head |
10m |
10m |
10m |
18m |
|
Total power (exclude bin and screw) |
88Kw |
117Kw |
168Kw |
218Kw |
|
Total weight (exclude bin and screw) |
38,000-42,000Kg |
40,000-44,000Kg |
60,000-78,000Kg |
85,000Kg |
|
1.Introduction

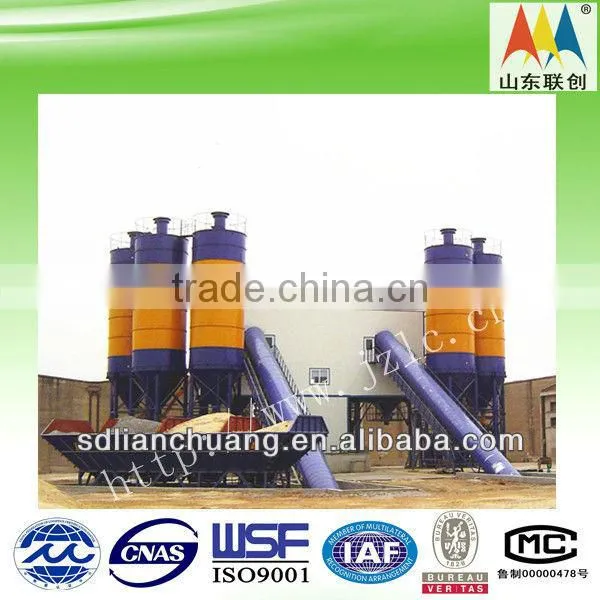

Most efficient concrete mixing plant,consists of material supply,aggregate batching system,mixing system,electric control system,steel structure.
Main Features:

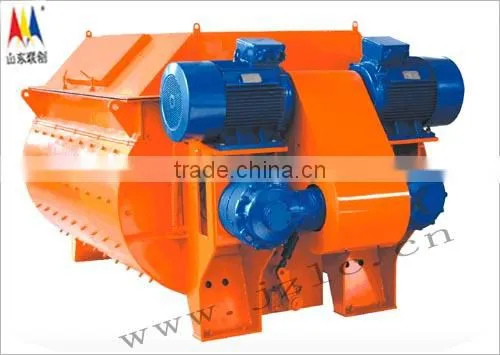

l The machine adopts JS2000concrete mixer, it has good mixing quality and high efficiency.
l The batching machine adopts PLD1200 , it is measuring nicety and high produce efficiency.
l The cement is store in cement silo and feeding by screw conveyor.

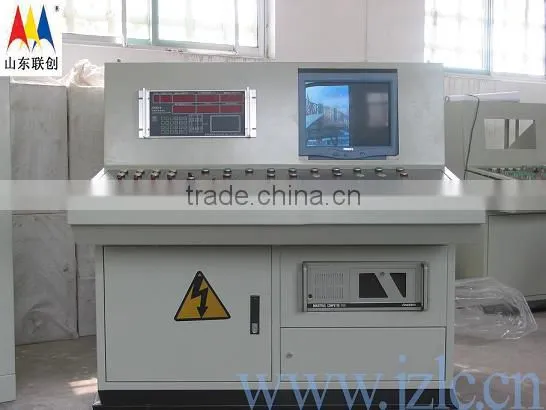

l The water supply system is composed by water tank, water pump and water weigh system. The whole batching and mixing course is automatism by electrical control system (it also can be hand control). The structure is simple and easy to install and debug. It is adopts advanced control system and imports component with high dependability.
We have been awarded ISO9100 Quality Systerm Certificate, ISO14001 Environmental Management Systerm
Relying on the operation philosophy of "technology guided, quality oriented, and considerate service", our company has actively developed markets both at home and abroad, enjoying a high reputation in Algeria, Kazakhstan, and the UAE, as well as over 20 provinces, cities, and municipalities in our country. In order to meet clients' demands, our company will invest more in technology, make full use of leading edge of technology, cooperate with world famous enterprise in the industry, improve product quality and reduce production cost by global purchasing and production in scale. Also we will further perfect the sales & service network, and provide concrete machinery with good quality and low price for worldwide construction enterprises.
