Specifications
Functional;equipped; overall transferred;moved by the towing vehicle.Simple operation!

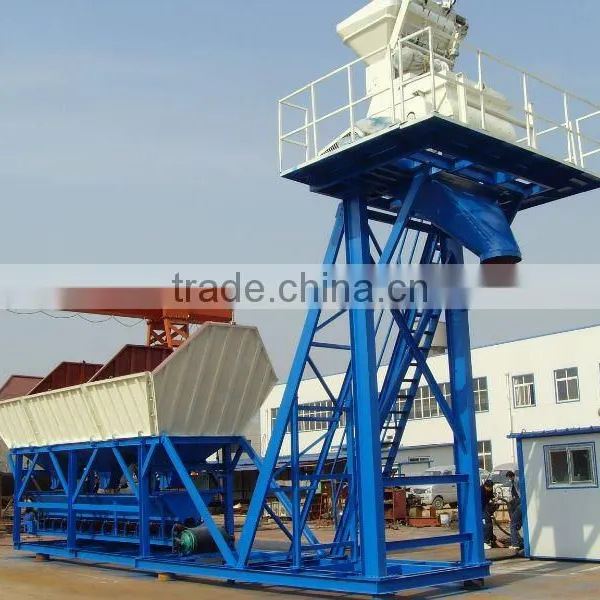

YHZS40 Series of Mobile Concrete Mixing Plant, Concrete Batching Plant
YHZS mobile concrete batching plant is highly integrated concrete batching plant. The main mixer adopt double-shaft compulsory mixer, have the advantage of low mixing time, discharge quickly, mixing equality and high productivity, can produce plastic, dry-hard and other concrete, reliable quality. Aggregate adopt electronic scale cumulative measurement or single measurement, cement,water,admixture are used weighing hopper, accurately measurement, computer centralized control, simple operation, easy adjustment and reliable quality. Aggregate adopt two kinds of feeding method: upgrade hopper or belt conveyor. Electrical components adopt Siemens device, reliable performance and high productivity, suitable for large quantities of concrete which is on site production. The mixer’s scale board and mixing blade using wear-resistant material which has processed special, the special shaft bearing and seal type has greatly improve the life of the mixer.
This machine is functional and consisted by bathing system, mixing system, measuring system and control system, small size, cost-effective, suitable for small or medium-scale hydropower, roads, ports, airports, bridge and other mobility projects.
1. Technical parameters
Model |
HZS25 |
HZS40 |
HZS50 |
HZS75 |
Max theory productivity(m3/h) |
25 |
35 |
50 |
75 |
Mixer |
JS500 |
JS750 |
JS1000 |
JS1500 |
Storage bucket capacity(m3) |
3×2.4 |
3×4 |
3×8 |
3×12 |
Maximum size of aggregate(mm) |
60/80 |
60/80 |
60/80 |
60/80 |
Discharge height(m) |
1.7-3.8 |
1.7-3.8 |
1.7-3.8 |
1.7-3.8 |
Charge height(m) |
2.9 |
2.9 |
2.9 |
2.9 |
Aggregate measuring accuracy(%) |
±2 |
±2 |
±2 |
±2 |
Cement measuring accuracy(%) |
±1 |
±1 |
±1 |
±1 |
Fly ash measuring accuracy(%) |
±1 |
±1 |
±1 |
±1 |
water measuring accuracy(%) |
±1 |
±1 |
±1 |
±1 |
additive measuring accuracy(%) |
±1 |
±1 |
±1 |
±1 |
Power(kw) |
35 |
50 |
60 |
85 |
Total weight(kg) |
14000 |
18000 |
25000 |
35000 |
Features:
1)Batcher
2)Trough Belt conveyor
3)Mixer JS1000
4)Weighing system
5)Mixing platform
6)Control system
7)Pneumatic system
8)Cement silos
9)Screw conveyor
