Specifications
1.Stable performance2.High efficiency
3.Long working life
4.CE & ISO9001:2000
SHANDONG LIANCHUANG
(We have two factory)
Product description
ncrete batching plant features
1.concrete batching plant belongs to compulsory and efficiency equipment. |
|
2.It includes JS concrete mixer, PLD batching machine, cement silo and control system. |
|
3.It can produce various kinds of concrete including quaking concrete and hard concrete. |
2. concrete batching plant main parameter
| Total system | Model | HLS60 | HLS90 | HLS120 | HLS180 |
| Max.Productivity | 60m³/h | 90m³/h | 120m³/h | 180m³/h | |
| Concrete mixer | Mixer model | JS1000 | JS1500(LS15) | Js2000(LS20A) | Js3000(LS30) |
| Charge/Discharge Capacity |
1600L/1000L | 2400L/1500L | 3200L/2000L | 4500L/3000L | |
| Mixer Power | 2*18.5kw | 2*30kw | 2*37kw | 2*55kw | |
| Max.Diameter size of allower aggregate |
60/80mm | 60/80mm | 60/80mm | 80/100mm | |
| Batching machine | Power | 5kw | 7kw | 11kw | 18kw |
| Max. weighing | 3000kg | 4000kg | 6000kg | 8000kg | |
| Cement screw conveyor |
Conveying capacity | 40t/h | 60t/h | 90t/h | 120t/h |
| Power | 11kw | 15kw | 15kw | 18.5kw | |
| Fly ash screw conveyor |
conveying capacity | 20t/h | 40t/h | 40t/h | 60t/h |
| Power | 7.5kw | 11kw | 11kw | 15kw | |
| Feeder belt machine | Conveying capacity | 300t/h | 480t/h | 600t/h | 720t/h |
| Power | 18.5kw | 30kw | 37kw | 55kw | |
| Weighing system | Aggregate measuring accuracy |
±2% | ±2% | ±2% | ±2% |
| Fly ash measuring accuracy |
±1% | ±1% | ±1% | ±1% | |
| Water/Additive measuring accuracy |
±1% | ±1% | ±1% | ±1% | |
| Pneumatic system | Air compressor pump | 3w-1.0/10 | 3w-1.6/10 | 3w-1.6/10 | 3w-2.2/10 |
| Power | 11kw | 15kw | 15kw | 18kw | |
| Water system | Water pumpt type | QY25-25-3 | QY50-205.5s | QY80-30 | QY80-30 |
| Power | 3kw | 5.5KW | 7.5KW | 7.5KW | |
| Admixtare | Additive pumb type | 32FS | 32FS | 32FS | 40FS |
| Power | 1.5KW | 2.2KW | 2.2KW | 2.2KW | |
| Total Power (Without silo and conveyor) |
78KW | 112KW | 150KW | 198KW | |
| Total weight (without silo and conveyor) |
38000-42000KG | 40000-44000KG | 60000-78000KG | 85000KG |

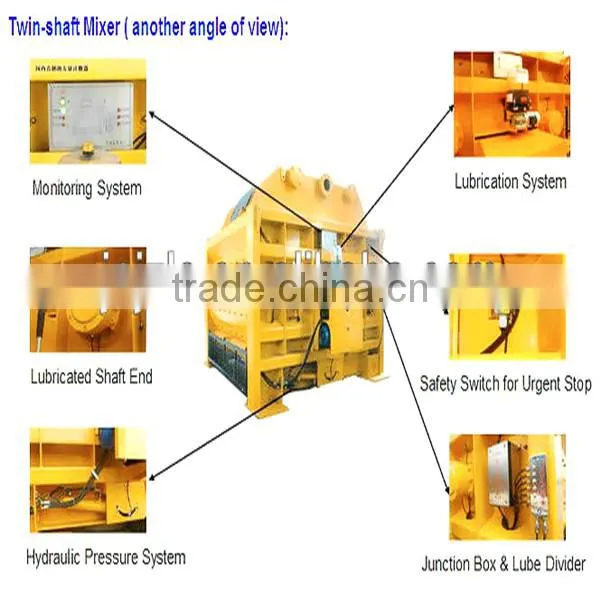

Concrete Mixer:
Products profile: HLS60 Ready Mixed Concrete Mixing Plant ,with feature of small floor area coverage and easy installation and moving from site to site.
Application: Concrete mixing plant is suitable for water conservancy , the electric power , the railroad, the road , the tunnel, the arch of bridge , the harbor-wharf and so on.

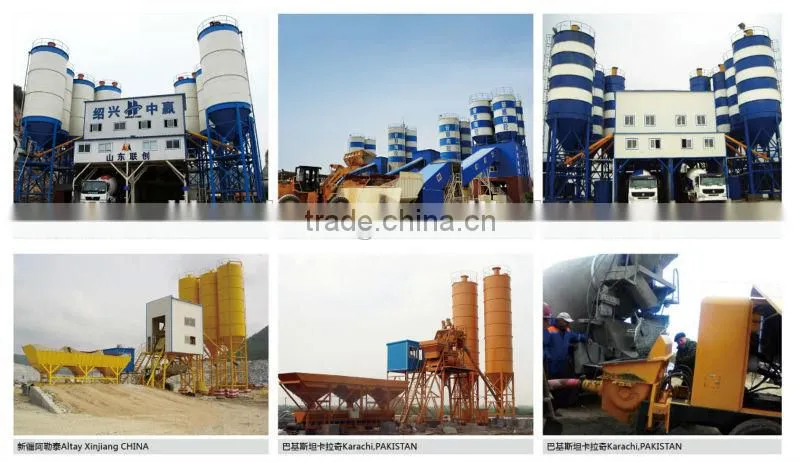

Delivery site
Why Choose Us

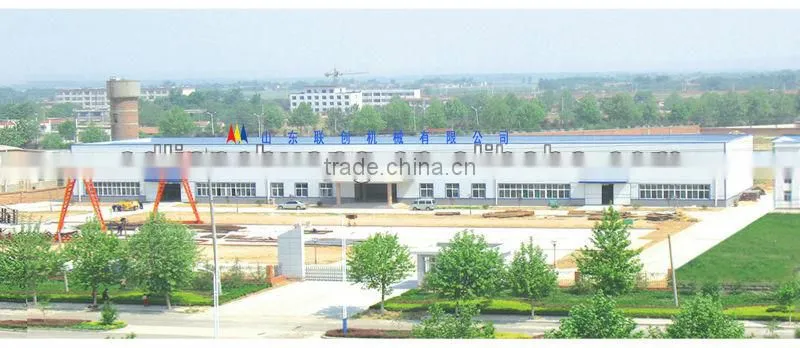

Located in Jinan, the construction machinery town of China, Shandong Lianchuang Machinery Co., Ltd was established with the goal to become one of the leading companies in the machinery industry in China.
As one manufacturer, we have over 15 years of experience in manufacturing, designing, testing and R&D. Our factory covers an area of 90,000 square meters. Our products are sold all over the world and used in construction projects of various scales.Our main products include concrete mixers, concrete mixing plants, mobile concrete batching plants, concrete pump etc. We are dedicated in manufacturing top-class products with competitive price and our products are widely welcomed by domestic and foreign groups in the fields of construction, power, water, highway, railway, bridge erecting, and so on.
