Specifications
1. Used Asphalt Plant for Sale2. 40-320T/H
3. 500-4000KG/Batch
4. 38--45s/Batch
5. Auto Control
80t/h Asphalt plant price LB1000
1.Usage
LB series asphalt mixing station can produce asphalt mixture, modified asphalt mixture and color asphalt mixture. It can fully meet the needs of highway construction, grade highway, municipal road, airport and port construction.
2.The technical parameter
| Model | LB1000 | LB1500 | LB2000 | LB3000 | LB4000 |
| Max theory productivity (t/h) | 80 | 120 | 160 | 240 | 320 |
| Aixing tank capacity (kg) | 1000 | 1500 | 2000 | 3000 | 4000 |
| Aggregate measuring accuracy (%) | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| Powder measuring accuracy (%) | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| Asphalt measuring accuracy (%) | ±0.3 | ±0.3 | ±0.3 | ±0.3 | ±0.3 |
| Discharge height (m) | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 |
| Dust cleaning efficiency (mg/Nm3) | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 |
| The finished material temperature(°C) | 160 | 160 | 160 | 160 | 160 |
| Total Power (kw) | 230 | 360 | 490 | 660 | 860 |
| Voltage (V) | 380 | 380 | 380 | 380 | 380 |
| Power frequency (Hz) | 50 | 50 | 50 | 50 | 50 |
3.Main feature

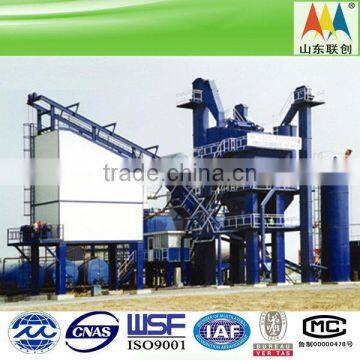

80t/h stationary asphalt plant LB-1000
Simplified configuration, low failure rate, and suitable for road maintenance and medium and small scaled construction projects.
1). The feeding belt is designed with baffles, which makes material feeding system steady and smooth.
2). The optimized flights structure of drying drum makes the drying system more effective and stable
3). The hot elevator adopts the double Gall's chain for hoisting, which not only prolongs the service life of the hoisting machine but also improves the running stability
4). The linear-mode screen driven by imported vibrator improves the screening efficiency and reduces the failure rate of plant
5). Large capacity hot aggregate bin makes operation more convenient
6). Our unqiue designed paddles and the powerful mixer allow the mixing operation easier, effective and reliable
7). Dual-stage dust removal system and negative pressure dustproof design make our asphalt mixing plant ecofriendly and economical
8). The computer-controlled system, auto/manual switchable, and auto self-diagnosis program makes the operation easy and safe
9). Overall modular design makes the transportation and installation more convenient and fast
10). The RAP interface is reserved for upgrade hot RAP facilities
4.Main parts of the Asphalt Batch Mixing Plant
1. Cold aggregate supply system
2. Burning system
3. Drying drum
4. Dust collecting system
5. Hot aggregate elevator
6. Pneumatic control system
7. Powder supply system
8. Bitumen supply system
9. Accurate measuring system
10. Mixing system
11. Asphalt storage system.
12. Electric control system
5.After-sales services
1.Spare parts will be delivered as you need.
2.Engineers will go to clients’ site for guiding the installation and test-running;
3.Warranty period: 12 months since the installation and commisioning;
4.Service team will follow every placed order regularly till warranty period finished.
6.Success Case
So far as now, our concrete mixers are sold in Mongolia, Uzbekistan, Kazakhstan, Congo, Nigeria, Singapore, Ghana, Russia, Chile, Philippines, Kenya, Armenia,
Our stationary concrete batching plants are sold in Nigeria, Congo, Chile, Philippines, Mongolia, Russia, Kazakhstan, Uzbekistan, Russia, Nigeria, Armenia, etc..
Our mobile concrete batching plants are sold in Mongolia, Russia, Kazakhstan, Uzbekistan, Pakistan, Philippines, etc.
What's more, they have received praise with good quality and excellent after-sale service.
You are always welcomed to visit our company and workshop!!
7.Our Service
As a professional exporter, our target is to serve worldwide clients with high-quality products, great reliability, devoted responsibility, professional services and honorable credibility to meet customers' requirements in all aspects. Offer skillful after-sale-service specialists are available for all customers at 7/24 hours every week.
Welcome to visit our factory !
