Specifications

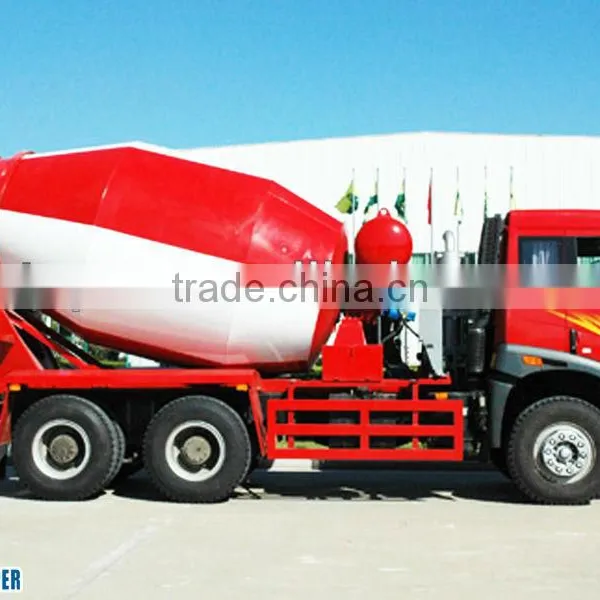

Concrete mixer truckCapacity ranges from 6m3 to 16m3
Self-loading, self-mixing, self-supplying water, self-discharging
Constraction machinery/concrete mixer truck/concrete transportation truck

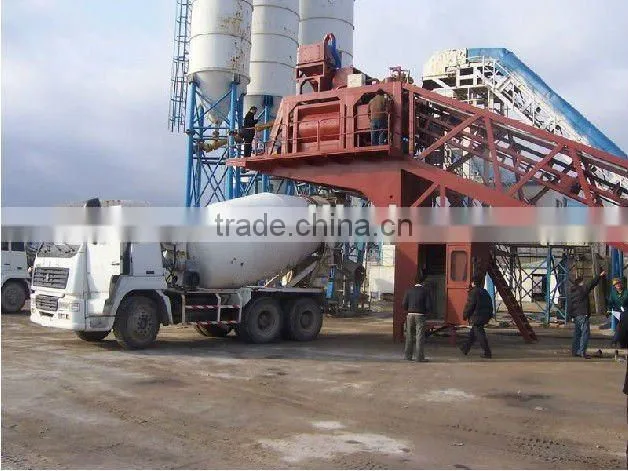

This type concrete mixer truck most widely used is the Cement Truck – Materials are loaded at a concrete mixing plant, Then the concrete is mixed in transit and delivered to job sites.
The concrete can be unloaded via a chute for ground level applications or the concrete is poured into a concrete pump system for high height applications.The capacity of concrete mixer truck ranges from 6 m³ to 16m³, meeting customers' various needs.
Main structure:
Classis; update, drive shaft hydraulic, reducer system; tanker; discharging; cleaning system; frame,; manual system; roller system; filling system; electric system.
Parameters:
Item |
Unit |
Parameter |
|
Overall dimensions |
mm |
9655*2495*3950 |
|
GVW |
kg |
Appro×25000 |
|
Mass in working order |
Appro×14750 |
||
Loading capacity |
Appro×10055 |
||
Approach/departure angle |
° |
20/26 |
|
Exhaust/hp |
ml/hp |
11596/340 |
|
Max speed |
km/h |
90 |
|
Wheel base |
mm |
4100+1350 |
|
Axle load |
kg |
7500,16000 |
|
Tire specification |
12:00R20 |
Engine type |
WP10.340E |
Traction system |
6×4 |
Transmission |
RTD11509C |
Number of axles |
3 |
Emission standard |
Euro 3 |
Brake system instruction |
Spring brake |
Allowable passengers in cab |
2 |
Effective mixing capacity |
12000L |
||
