Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Concrete Machinery > Trailer Concrete Pump

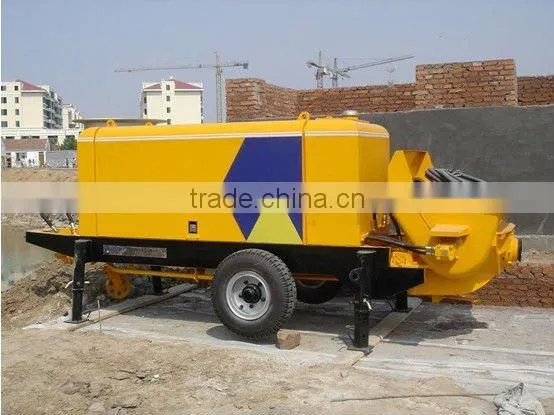

Trailer Concrete Pump
US$ 10,000 - 1,000,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Power Type:
Electric
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Efficiency Dry Mix Mortar Plant Production LineUS$ 40,000 - 50,000MOQ: 1 Set -
Dry Mortar Plant to Mix Sand and CementUS$ 40,000 - 50,000MOQ: 1 Set
-
China Manufacturer Dry Mortar Mixing Production LineUS$ 40,000 - 50,000MOQ: 1 Set
-
2016 Hot Sale High Quality Dry Mortar Production LineUS$ 40,000 - 50,000MOQ: 1 Set
-
Henan Cheap Dry Mortar Mix Production LineUS$ 30,000 - 50,000MOQ: 1 Set
Condition
New
Power Type
Electric
Place of Origin
Henan, China
Brand Name
TOPER
Model Number
HBTS60-13-90
Certification
ISO, CE
Warranty
18 months
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
concrete pump1.Z-gate-valve serial medium-pressure pumps
2.D-butterfly-valve serial low-pressure pumps
3.Trailer Pump
The technical data of the concrete pump
The concrete trailer pump adopt such world advanced techniques as open hydraulic loop,distribution valve auto-compensating clearance,constant power control, total hydraulic automatic change,and electric proportional control,etcand all adopts steamline production assembly while the company strictly controls all the machining processes and assembly quality and gives final test to every pump trailer by simulation working conditions and overload experiments to ensure customers zero fault in the first operation.
| HBT-Z-gate valve serial pump trailer main technical parameters | ||||||||||
| Pump trailer model | Pumping displacement in theory (m3/h) | Mpa Outlet pressure (MPa) | Max.transport distance(m) | Concrete cylinder diameter ×stroke (mm) | Electric machine power(kw) | Outer size(mm) | Main machine weight (kg) | |||
| HBT60Z1407-75 | 69 | 7 | 580 | 120 | 200×1400 | 75 | 6370×2045×2065 | 5600 | ||
| HBT60Z1407-112 | 69 | 7 | 580 | 120 | 112 | 6030×2045×2559 | 6500 | |||
| HBT-D-butterfly valve serial pump trailer main technical parameters | ||||||||||
| Pump trailer model | Pumping displacement in theory (m3/h) | Mpa Outlet pressure (MPa) | Max.transport distance(m) | Concrete cylinder diameter ×stroke (mm) | Electric machine power(kw) | Outer size(mm) | Main machine weight (kg) | |||
| High pressure | Low | High pressure | Low pressure | Horizontal | Vertical | |||||
| pressure | ||||||||||
| HBT40D1206-55 | 24.5 | 40 | 6 | 3.7 | 500 | 100 | 195×1200 | 55 | 6035×2005×2072 | 4500 |
Send Inquiry to This Supplier
Business Type
Trading Company
Year Established
2006
Factory Size
Below 1,000 square meters
Total Employees
101 - 200 People
