Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Concrete Machinery > Trailer-Mounted Concrete Pump

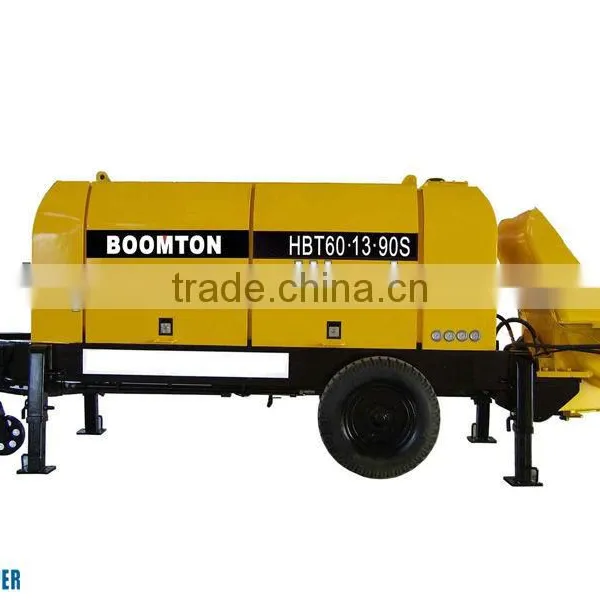

Trailer-Mounted Concrete Pump
US$ 10,000 - 1,000,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Power Type:
Diesel
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Trailer Concrete PumpUS$ 10,000 - 1,000,000MOQ: 1 Set -
High Efficiency Dry Mix Mortar Plant Production LineUS$ 40,000 - 50,000MOQ: 1 Set
-
Dry Mortar Plant to Mix Sand and CementUS$ 40,000 - 50,000MOQ: 1 Set
-
China Manufacturer Dry Mortar Mixing Production LineUS$ 40,000 - 50,000MOQ: 1 Set
-
2016 Hot Sale High Quality Dry Mortar Production LineUS$ 40,000 - 50,000MOQ: 1 Set
Condition
New
Power Type
Diesel
Place of Origin
Henan, China
Brand Name
TOPER
Model Number
HBTS50-8-75
Power(W)
55000
Weight
5400kg
Dimension(L*W*H)
5400x1860x1900mm
Certification
ISO:9001:2008
Warranty
18 months
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Concrete pump1. S vavle Diesel Engines
2. Z vavle Diesel Engines
3. Superhigh Trailor
4. Mining concrete pump
Concrete Pump
The concrete pump adopt such world advanced techniques as open hydraulic loop,distribution valve auto-compensating clearance,constant power control, total hydraulic automatic change,and electric proportional control,etcand all adopts steamline production assembly while the company strictly controls all the machining processes and assembly quality and gives final test to every pump trailer by simulation working conditions and overload experiments to ensure customers zero fault in the first operation.
| HBT-Z-gate valve serial pump trailer main technical parameters | ||||||||||
| Pump trailer model | Pumping displacement in theory (m3/h) | Mpa Outlet pressure (MPa) | Max.transport distance(m) | Concrete cylinder diameter ×stroke (mm) | Electric machine power(kw) | Outer size(mm) | Main machine weight (kg) | |||
| HBT60Z1407-75 | 69 | 7 | 580 | 120 | 200×1400 | 75 | 6370×2045×2065 | 5600 | ||
| HBT60Z1407-112 | 69 | 7 | 580 | 120 | 112 | 6030×2045×2559 | 6500 | |||
| HBT-D-butterfly valve serial pump trailer main technical parameters | ||||||||||
| Pump trailer model | Pumping displacement in theory (m3/h) | Mpa Outlet pressure (MPa) | Max.transport distance(m) | Concrete cylinder diameter ×stroke (mm) | Electric machine power(kw) | Outer size(mm) | Main machine weight (kg) | |||
| High pressure | Low | High pressure | Low pressure | Horizontal | Vertical | |||||
| pressure | ||||||||||
| HBT40D1206-55 | 24.5 | 40 | 6 | 3.7 | 500 | 100 | 195×1200 | 55 | 6035×2005×2072 | 4500 |
