Application of the crusher machine:
Impact crusher is applies to such materialswhose length of side does not surpass 500mm, the compressive strengh does not surpass260Mpa. It is better to granite, the limestone, the river pebbles, and so on.
Impact crusher machine principle of operation:
Impact breaker impact crushers crush materials with impact force.
Compare to other crushers, our impact crusher has bigger reduction ratio and can fully use the high speed impactenergy of entire rotor. But because the impact crusher board hammer isextremely easy to wear, it also is restricted in the hard material staveapplication. Impact crusher is usually used to break thick garrulous, garrulousor the limestone, the coal, the calcium carbide, the quartz, the dolomite, thecuring iron ore, the gypsum and the industrial chemicals which are hardfollowing brittle material.
The ideal entering material granularity of our PF type impact crusher is 100-500mm,themost greatly is not surpass the rating. The materail granularity user canajusts the hammer head and the impact board and th gap between component,according to theirs demands.
Impact stone crusher machine characteristics
1. The impact crusher with Big feed head,high stave cavity,high adaptation material degree of hardness,big block,fewproduct stone powder.
2. The impact board and the board hammergap can be facilitatly adjusted, the controlment material granularity isactive, the grain shape is good.
3. The structure of the impact crusher iscompact, the machine rigidity is strong, the rotor has the big rotationinertia.
4. Hammer is anti-impact, anti-attrition,the impulse is big.
5. No keying, the overhaul is convenient,the economy is reliable.
6. Entire stave funtion ,highproductivity,slightly parts wears and tears,high combined earings.
Technical data of the stone crusher machine
| Model | Size of rotor (mm) | Feed opening (mm) | Max. feed size (mm) | Capacity (t/h) | Power of Motor (kW) | Weight (t) |
| PF1007 | Φ1000×700 | 400×730 | 300 | 15-30 | 37 | 6 |
| PF1010 | Φ1000×1050 | 400×1080 | 350 | 50-80 | 75 | 12.5 |
| PF1210 | Φ1250×1050 | 400×1080 | 350 | 70-130 | 110 | 16.5 |
| PF1214 | Φ1250×1400 | 400×1430 | 350 | 90-180 | 132 | 19 |
| PF1315 | Φ1320×1500 | 860×1520 | 500 | 120-250 | 200 | 24 |
| PF1320 | Φ1320×2000 | 860×2030 | 500 | 160-350 | 260 | 27 |
Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.

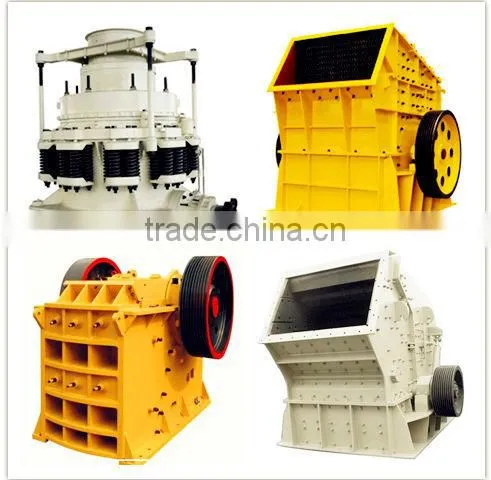

Our two production base of mining machinery has about 700 sets of various production equipments. Annual production capacity is 40,000 tons of mechanical products. All these make us have the ability to produce larger and special larger equipments. Our main products including: ball mill, rotary kiln, jaw crusher, cone crusher, etc. and all kinds of spare parts.
Our manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, recessed filter press, belt filter press, centrifuge, etc. All these products are widely used in mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, food, alcohol, inorganic salt, coal washing, and waste water processing industry.
Our products has passed ISO9001 International Quality Management System Certification and is exported to America, Canada, Chile, Bolivia, Indonesia, Malaysia, Israel, Iran, Egypt, Turkey, Romania, Sweden, Finland, etc. about more than 50 countries and area. We have won good reputation depends on our best qualified products and after-sales service. Warmly welcome new and old friends all over the world to come our company for good cooperation with each other!
