Jaw Crusher Main Function:
The serires of jaw crusher has following chatacteristics:
High reduction ratio, product size even, simple structure, reliable operation, convenient maintenance, and less operation cost, etc. It is widely used in mining, smelting, building material, highway, railway, water conservancy and chemical industries for crushering different materials whose compression strength is not more than 250Mpa.
Brief introduction :
This PE-200X350 small type sledger, is mainly used as coarse crushing machine and the broken machine in mining, building materials, infrastructure and other sectors . According to the width of the inlet ,it can be divided into large, medium and small model, the inlet width greater than 600MM is belong to large machine, the width of the inlet at 300-600MM belong to medium model,and less than 300MM is belong to small machine.
According to the different ways of the moving jaw plate,the jaw crusher can be divided into three types ,the simple swing jaw crusher (simple pendulum jaw crusher). Complex swing jaw crusher (compound pendulum jaw crusher) and integrated swing jaw crusher .

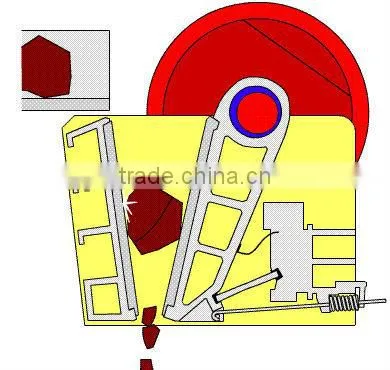

Working principle of the PE-200X350 small type sledger

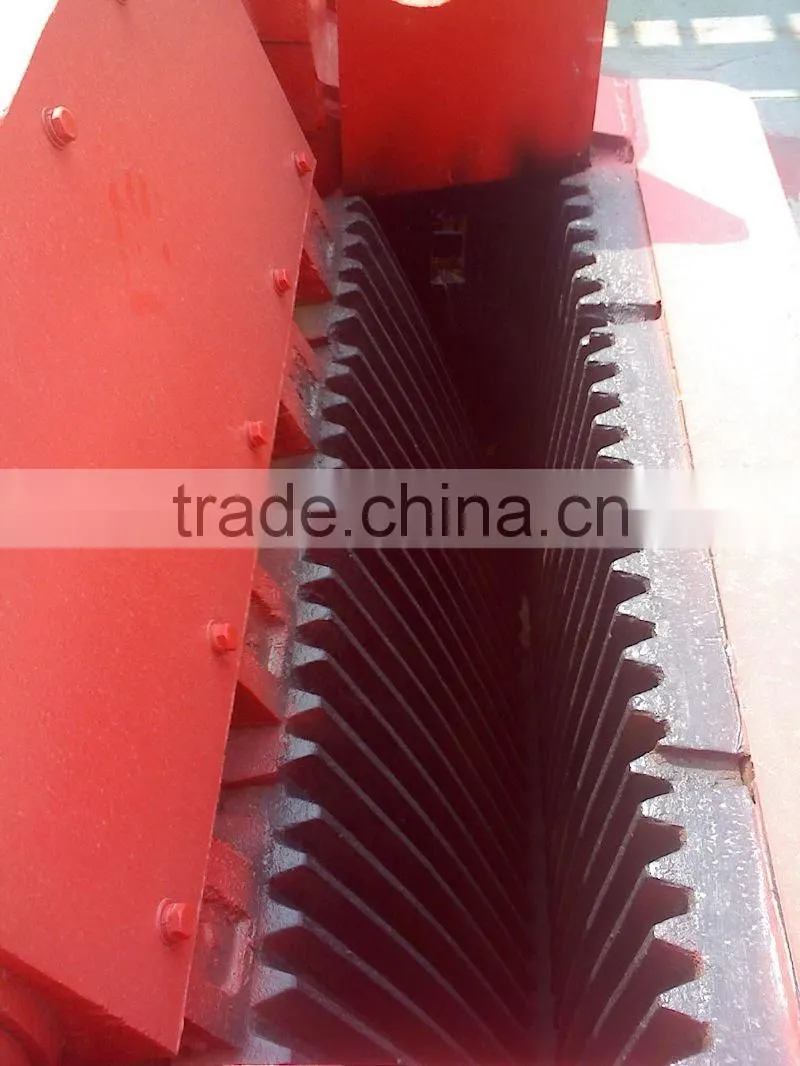

Working part of the jaw crusher is two pieces of jaw plates, one is the fixed jaw plate (fixed jaw), vertical (or slightly upper camber) fixed on the front wall of the body, and the other is movable jaw plate (moving jaw), location tilt, formed the crushing chamber (working chamber)with the fixed jaw plate ,which is upper big and down small .
Movable jaw against the fixed jaw do periodic reciprocating motion, sometimes separately, sometimes close. When separated material into the crushing chamber, finished unloading from the bottom; close, so that is mounted between the two materials being squeezed jaw, bending and splitting the role of fragmentation
Main features of the PE-200X350 small type sledger
1, low noise, less dust.
2, high crushing ratio, uniform particle size.
3, simple structure, reliable operation and low operating costs.
4, the lubrication system is safe and reliable, easy to replace parts, equipment maintenance simple.
5, crushing chamber depth and no dead zone, improved feed capability and production.
6, energy-saving equipment: stand-alone energy-saving 15% to 30%, saving the system more than doubled.
7, nesting population adjustment range, can meet different user requirements.
8, simple structure, easy to manufacture, reliable work and so on.
Technical Parameter:
Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.
Our two production base of mining machinery has about 700 sets of various production equipments. Annual production capacity is 40,000 tons of mechanical products. All these make us have the ability to produce larger and special larger equipments. Our main products including: ball mill, rotary kiln, jaw crusher, cone crusher, etc. and all kinds of spare parts.
Our manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, recessed filter press, belt filter press, centrifuge, etc. All these products are widely used in mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, food, alcohol, inorganic salt, coal washing, and waste water processing industry.
Our products has passed ISO9001 International Quality Management System Certification and is exported to America, Canada, Chile, Bolivia, Indonesia, Malaysia, Israel, Iran, Egypt, Turkey, Romania, Sweden, Finland, etc. about more than 50 countries and area. We have won good reputation depends on our best qualified products and after-sales service. Warmly welcome new and old friends all over the world to come our company for good cooperation with each other!
