15L/min 220V, 1-phase,50HZ smart putty sprayer

Specifications

putty sprayer
>produce putty machine 10years
>spray putty &gypsum
>spray distance:0-20m
>adjustable speed

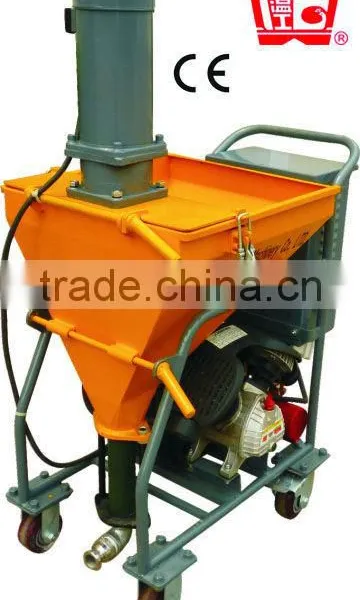

                                                       JP15-1 putty sprayer



 1.JP15, JP15-1 is particular smaller machine for putty plastering introduced current advanced technology.



2. With variable speed regulation, it can suit different use and characteristics putty plastering and thick plastering. With compact and flexible, it's easy to move and adapt for use in narrow spaces.



3. It has combined functions of pumping, bonding and plastering. Sets the pressure protection system, and achieves the remote control.



4. Several models can meet the voltage requirements in different countries and areas. (There are 220V and 380V with single-phase and 3-phase voltage.)













Technical parameters



Model	—	JP15	JP15-Ⅰ
Supply power	—	400V 50Hz	230V 50Hz
Motor power	kw	2.2	1.5
Output	l/min	20	15
Delivery pressure	bar	30	20
Horizon delivery distance	m	40	30
Vertical delivery distance	m	20	15
Hopper volume	L	40	40
Net weight	kg	145	140
Dimension (L×W×H)	mm	880×590×1138	880×590×1200











JP15 lime/putty/ gypsum plaster sprayer can make single-phase and 3-phase.





JP15 lime/putty/ gypsum plaster sprayer can plaster sticky putty for wall.





 The plaster thickness is very thick, you can use surface screed to finish wall surface!
