JP70-L wall cement machine
JP70-L is multi-functional large output plastering machine introduced Italian technology. It has the combined functions of mixing, pumping, bonding and plastering. It's suitable for different characteristics dry ready-mixed mortar construction. With modular structure, it's easy to move, dissemble and operate. With variable speed regulation, can achieve different pressure, output and plastering speed. Sets the pressure controlling protection mechanism, and meets the remote control working requirement.
JP70-L plastering machine feature:
For spraying or pumping traditional mortar and pre-mixed plasters, fiber-reinforced and refractory mortars, fireproof materials, self-leveling screeds and for reinforcing injections at controlled pressure.
Technical parameters of JP70-L Mortar plastering machine
Model |
— |
JP70-L |
Supply power |
— |
400V 50Hz |
Motor power |
kw |
3.7/4.4 |
Compressor power |
kw |
2.2 |
Maximum grain size |
mm |
8 |
|
Output |
L/min |
70 |
Delivery pressure |
bar |
30 |
Horizontal delivery distance |
m |
60 |
Vertical delivery distance |
m |
30 |
Mixer power |
kw |
1.1 |
|
Mixer volume |
l |
120 |
Hopper volume |
l |
120 |
|
Net weight |
kg |
395 |
Dimension (L×W×H) |
mm |
2040×820×1270 |
Note: The above figures are only for reference, due to differences in physical and chemical properties of selected mortar, its each value is different accordingly.
The products are improved without notice!

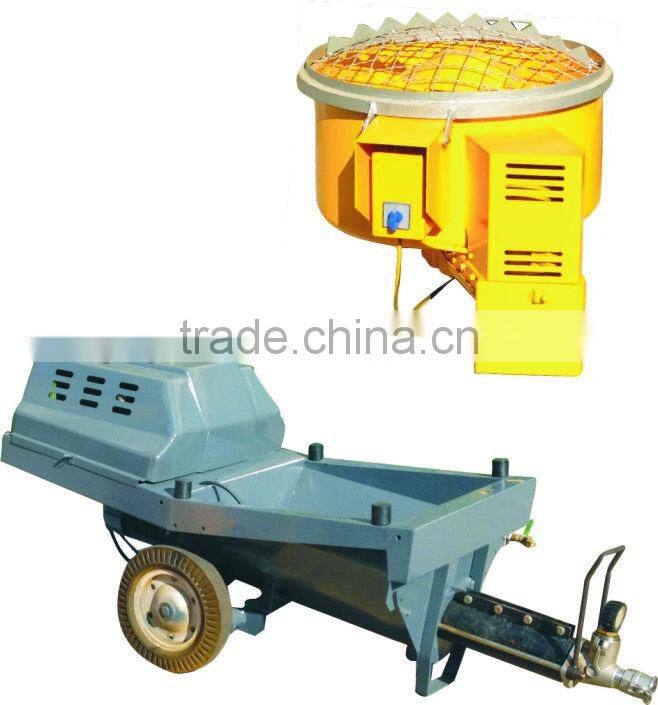

1. JP70-L has been installed mixer, air compressor and vibrationg screen grid. And you can remove the mortar mixer from plastering machine.

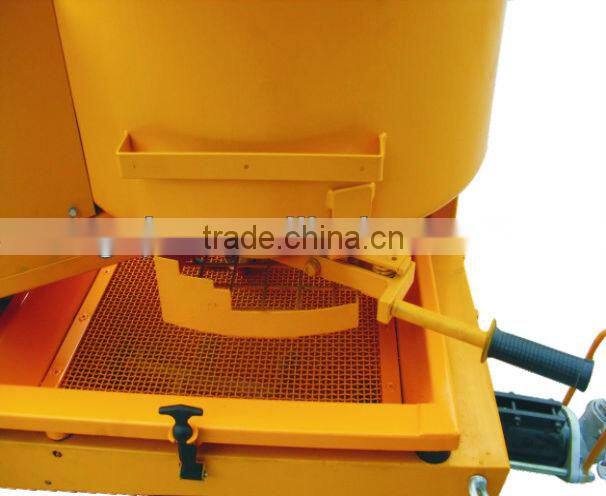

2. JP70-L can control and dscharge the mixed wet mortar from mixer. And the vibrating screen grid can avaid the overlarge material to filter above which can makes the sevice life of stator and rotor much longer!
