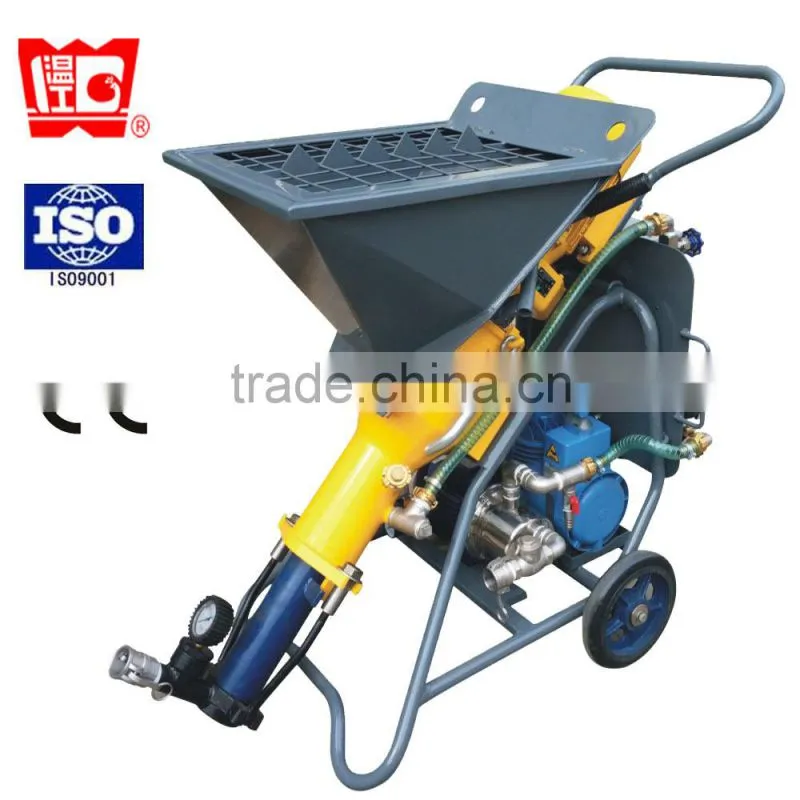

M-tec Mono-mix Plastering Spray Machine for Wall

M-tec Mono-mix Plastering Spray Machine for Wall photo-1
M-tec Mono-mix Plastering Spray Machine for Wall photo-2
M-tec Mono-mix Plastering Spray Machine for Wall photo-3
M-tec Mono-mix Plastering Spray Machine for Wall photo-4
M-tec Mono-mix Plastering Spray Machine for Wall photo-5
US$ 3,500 - 4,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Business Type:
Manufacturer, Trading Company
Year Established:
1990
Factory Size:
5,000-10,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/ningbo
Delivery Detail:
Delivery time depends on order quantity.

                          JP22   Plastering Spray Machine for wall





1.  JP22 design is same as Putzmeister MP22, can plaster area about 600-800m2/ 7hours.



2. It places all types of ready-mixed dry mortar.



3. It mixes and pumps insulating plaster and even floorscreed.



4. Suitable for all pumpable ready mixed dry mortars, bag material and material from a silo such as for example interior plaster (gypsum/gypsum-lime plaster);



5. Outside plasters and renders: (lime/lime-cement and insulating plasters), floor-screed, bonding mortar as well as reinforcement mortar.



There are two options for JP22 plastering machine as below:



1. Pumping motor and air compressor made in Germany

 m-tec mono-mix plastering spray machine for wall

2. Pumping motor and air compressor made in China



  m-tec mono-mix plastering spray machine for wall



Technical parameters

Model

JP22

Supply power

three phase

Motor power

kW

4 / 2.2

Maximum grain size

mm

4

Output

l/min

25

Delivery pressure

bar

30

Horizontal delivery distance

m

40

Vertical delivery distance

m

15

Hopper volume

L

50

Net weight

kg

185

Dimension (L×W×H)

mm

1200×660×1100

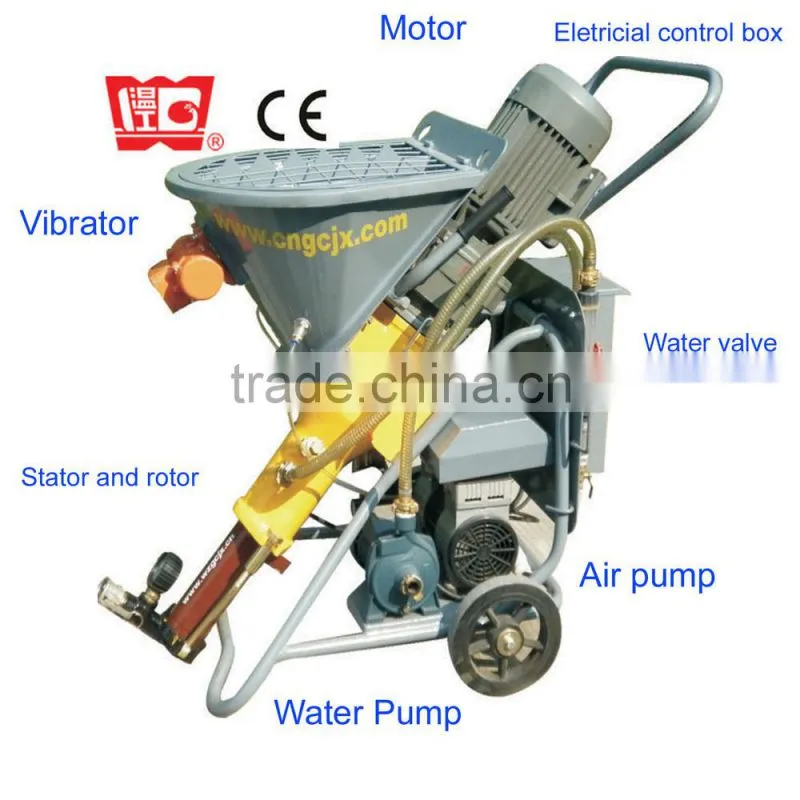

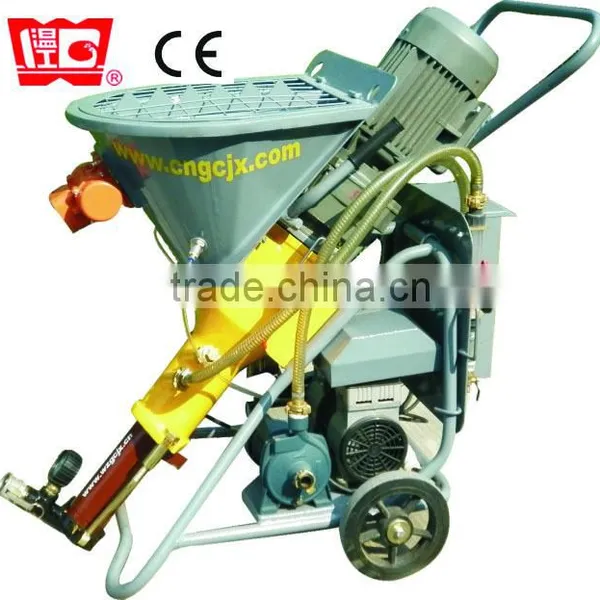

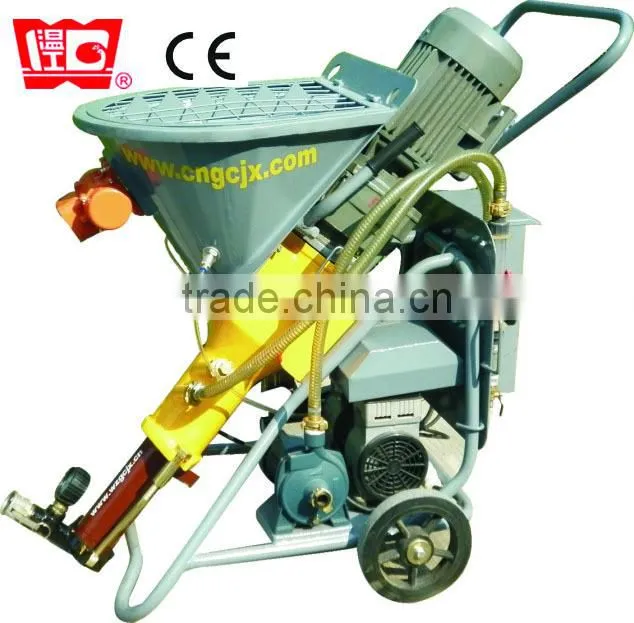

1. JP22  main structure as below:

m-tec mono-mix plastering spray machine for wall

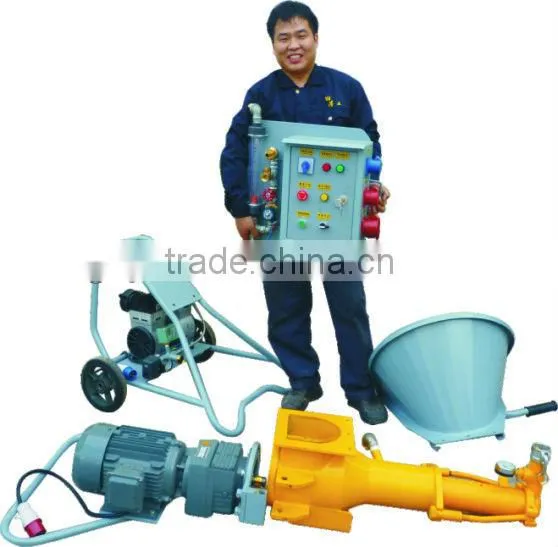

2. JP22 can be dismantled into several parts for easily maintance.



m-tec mono-mix plastering spray machine for wall

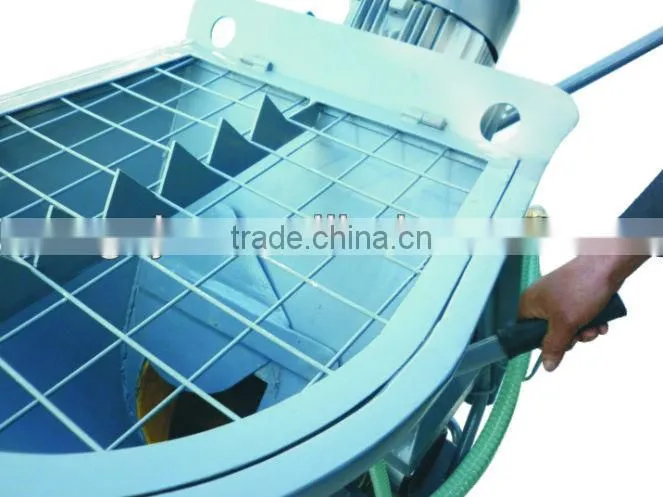

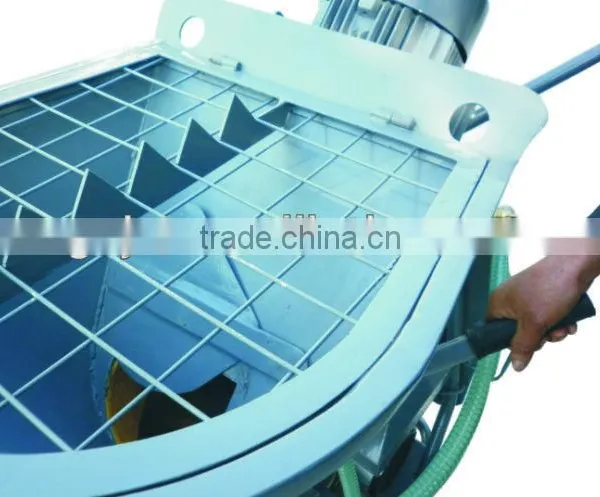

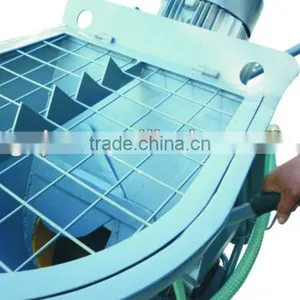

a. easily feeding ready-mixed mortar



m-tec mono-mix plastering spray machine for wall

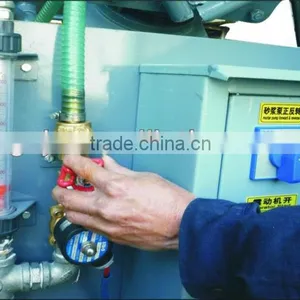

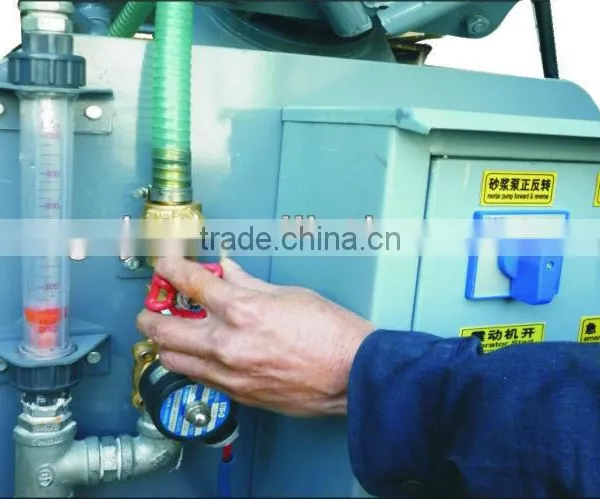

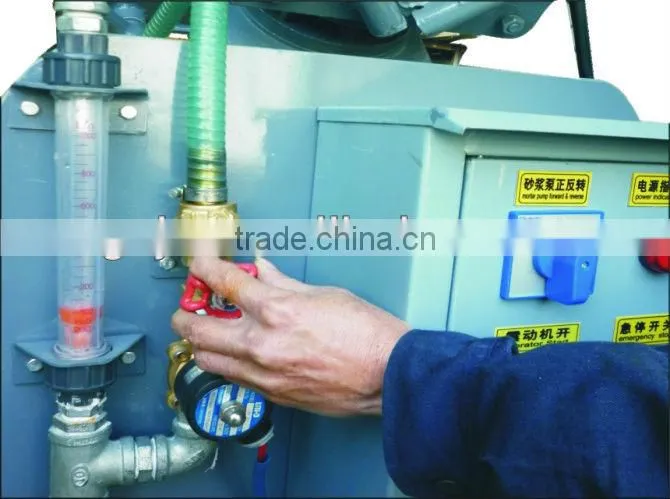

b. water value is controlled freely for feeding and mixing water amount for ready-mixed mortars

 m-tec mono-mix plastering spray machine for wall

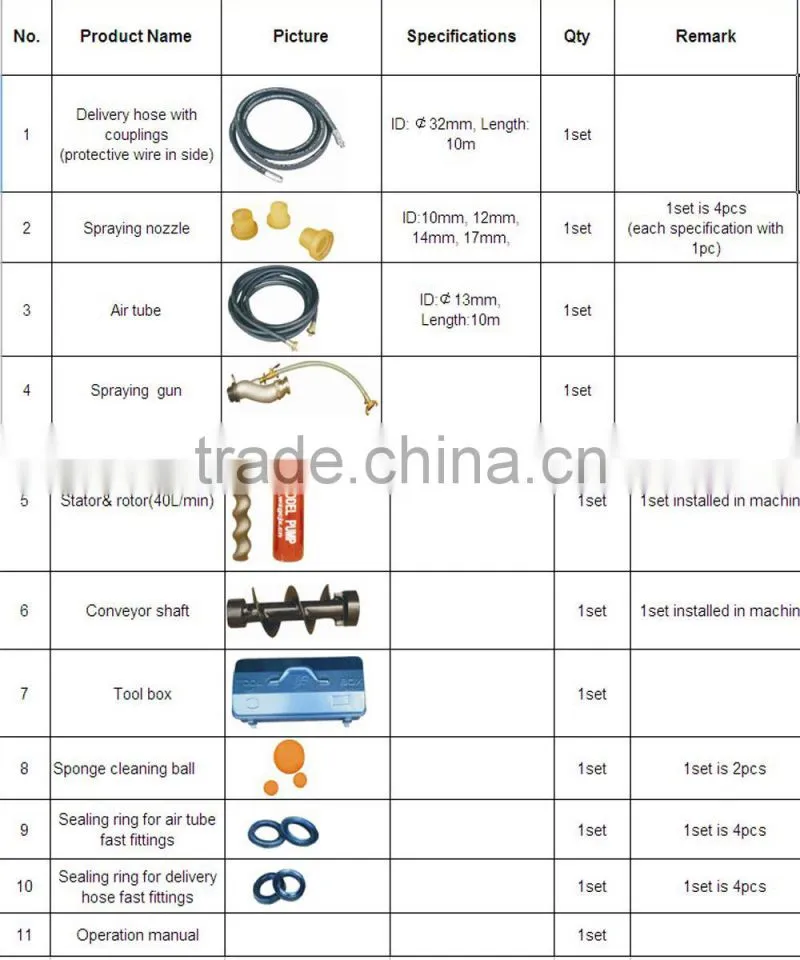

3. Standard spare parts for JP22 mortar plastering machine



  m-tec mono-mix plastering spray machine for wall

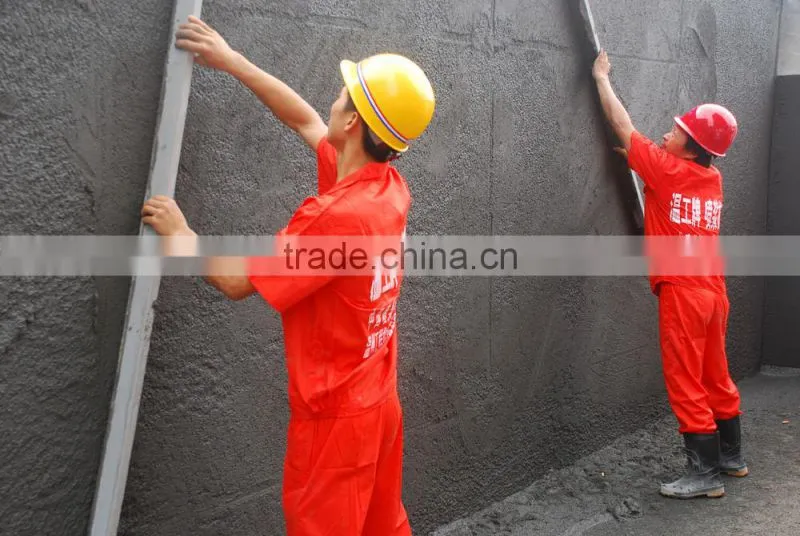

4. JP22 is most suitable for small plastering construction.



m-tec mono-mix plastering spray machine for wall



m-tec mono-mix plastering spray machine for wall

m-tec mono-mix plastering spray machine for wall

Company Information

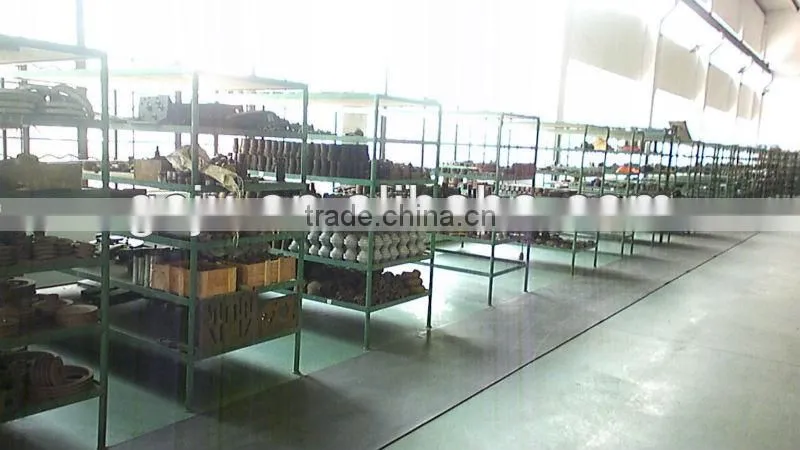

 1. JP22 manufactured in below neat workshop



m-tec mono-mix plastering spray machine for wall

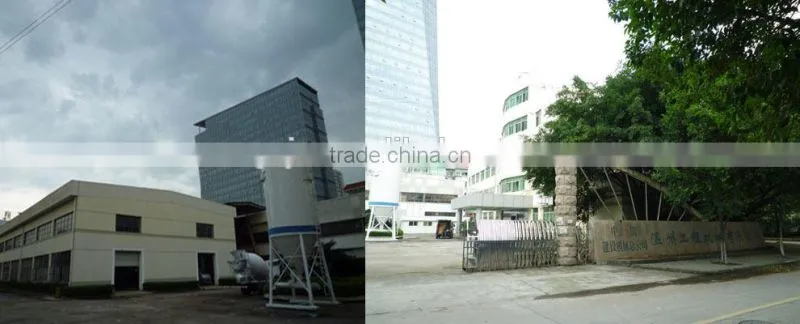

2. Our factory

m-tec mono-mix plastering spray machine for wall

m-tec mono-mix plastering spray machine for wall



3. Our contacts

m-tec mono-mix plastering spray machine for wall
