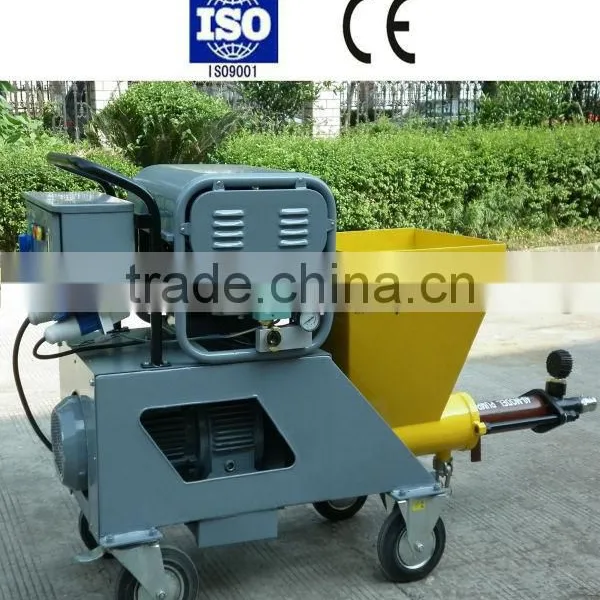

JP40-II Various Speeds Mortar Plastering Sprayers

JP40-II Various Speeds Mortar Plastering Sprayers photo-1
JP40-II Various Speeds Mortar Plastering Sprayers photo-2
US$ 3,800 - 4,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
plastering/rendering mortar
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/ NINBBO PORT
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application plastering/rendering mortar
Place of Origin Zhejiang, China
Brand Name wengong
Model Number JP40-II mortar plastering sprayers
Dimension(L*W*H) 1550x700x1020mm
Weight 280kgs
Certification CE, ISO9001:2008
Warranty 6MONTHS
After-sales Service Provided Overseas third-party support available

                                               JP40-11    Mortar plastering sprayers



1. JP40-II is small plastering machine introduced German technology.



2. It's applied for delivery, bonding and plastering of various characteristics and use of ready-mixed dry mortar.



3. With variable speed regulation, can adjust plastering speed and output freely as your demand.





4. It sets the pressure controlling protection mechanism and achieves the remote control. Its structure is very compact, and it's easy to move and operate.



JP40-II various speeds mortar plastering sprayers

JP40-II various speeds mortar plastering sprayers





Technical parameters



Model

JP40- II

Supply power

400V 50Hz

Motor power

kw

4

Maximum grain size

mm

5

Output

l/min

30

Delivery pressure

bar

30

Horizontal delivery distance

m

50

Vertical delivery distance

m

30

Hopper volume

L

60

Net weight

kg

280

Dimension (L×W×H)

mm

1550×700×1020











































Note: The above figures are only for reference, due to differences in physical and chemical properties of selected mortar, its each value is different accordingly.

The products are improved without notice!

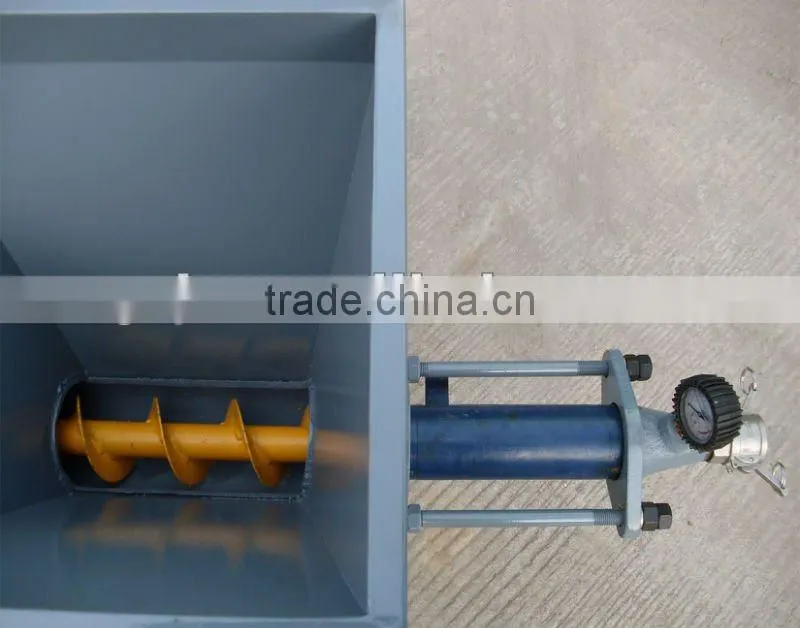

1. JP40-11 is pumped mortar by screw mortar conveyor and stator & rotor.



JP40-II various speeds mortar plastering sprayers

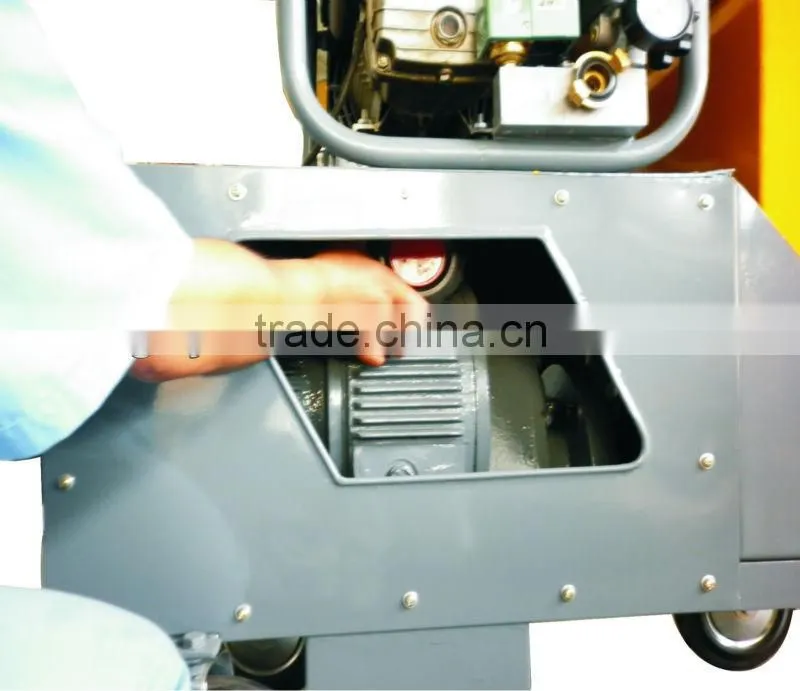

2. Working speed of JP40-11 can be adjusted freely from 0-30L/min via the red hadwheel on various speed motor.



JP40-II various speeds mortar plastering sprayers

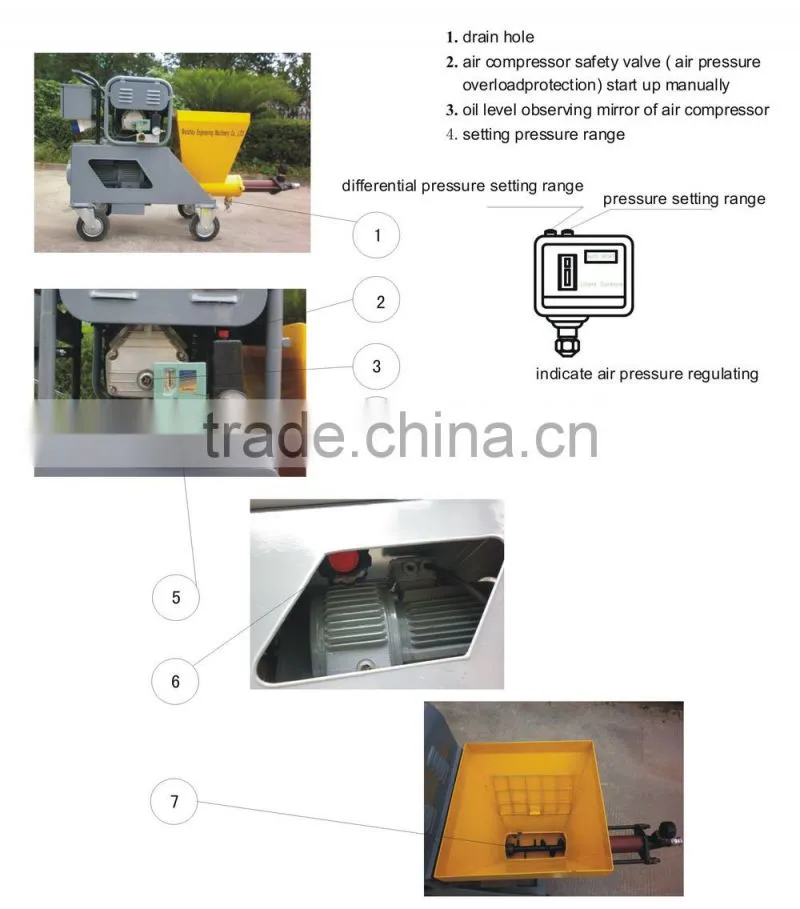

3.  JP40- II design structure is very sample as below shown:

JP40-II various speeds mortar plastering sprayers



4.   JP40- II standard spare parts:





JP40-II various speeds mortar plastering sprayers







5. Our machine working in real construction plastering:



JP40-II various speeds mortar plastering sprayers



JP40-II various speeds mortar plastering sprayers



6. JP40-II  was approved CE and ISO9001:2008 certificate



JP40-II various speeds mortar plastering sprayersJP40-II various speeds mortar plastering sprayers
