Specifications
auto rendering/plastering machine>continuous auto mixer
>offer standard water,level control sensor
>work 2000m2 per 8 hours

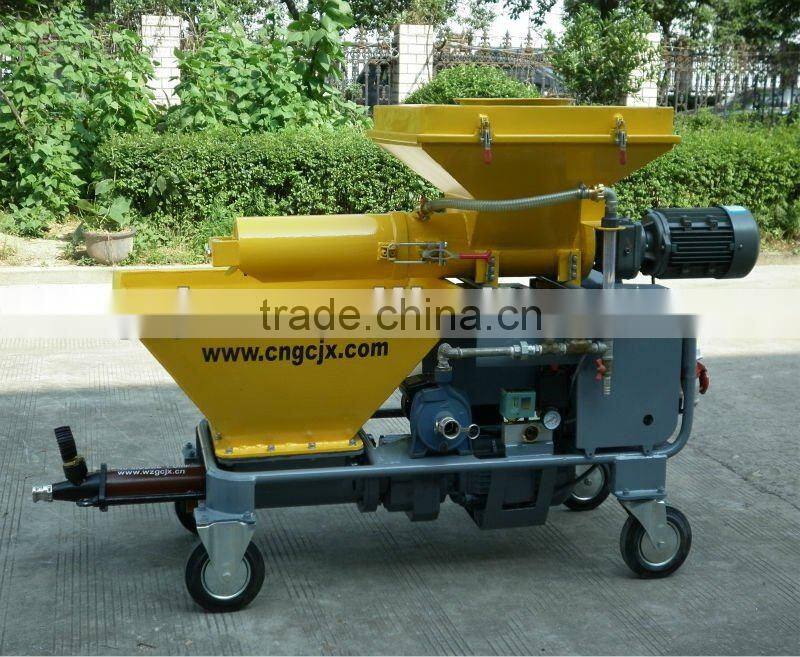

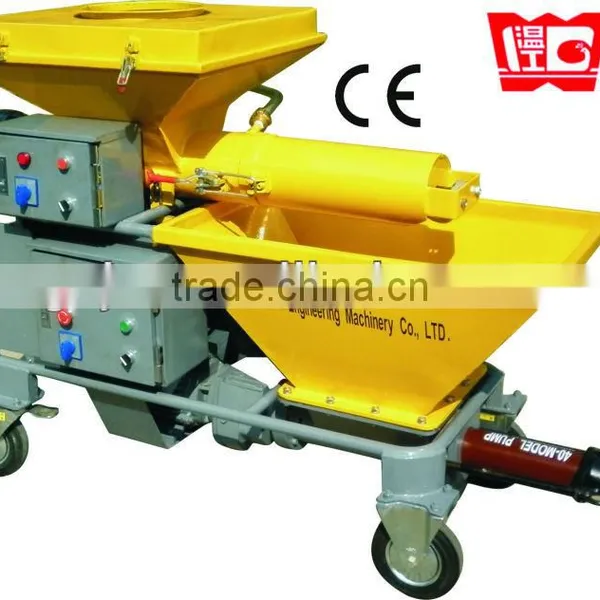

JP40-W auto rendering/plastering machine
JP40-W is small plastering machine introduced German technology. It's applied for mixing, delivery, bonding and plastering of various characteristics and use of dry ready-mixed mortar. It has the selectable adjustment function of output, pressure and plastering speed. Equips with continuous automatic mixer, dual axis design, and fixes water pump and water supply measuring system. It sets the pressure controlling protection mechanism and achieves the remote control. Its structure is very compact, and it's easy to move and operate.
Technical parameters of JP40-W Mortar plastering machine
Model | — | JP40-W |
Supply power | — | 400V 50Hz |
Motor power | kw | 3.3/4 3.7/4.4 |
Maximum grain size | mm | 5 |
Output | l/min | 30 |
Delivery pressure | bar | 30 |
Horizontal delivery distance | m | 60 |
Vertical delivery distance | m | 20 |
Mixer power | kw | 2.2 |
Mixer type | — | continuous automatic mixer |
Hopper volume | l | 100 |
Net weight | kg | 290 |
Dimension (L×W×H) | mm | 1900×680×1300 |
Note: The above figures are only for reference, due to differences in physical and chemical properties of selected mortar, its each value is different accordingly.
The products are improved without notice!

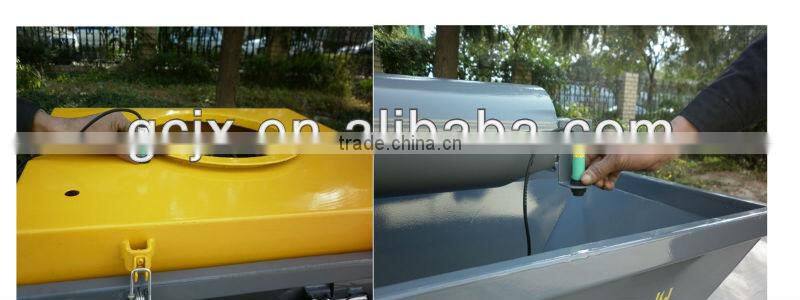

1. JP40-W is advanced plastering machine, when the filling material is full, the machine will stop by advanced Electronic sensors to ensure machine working safty.

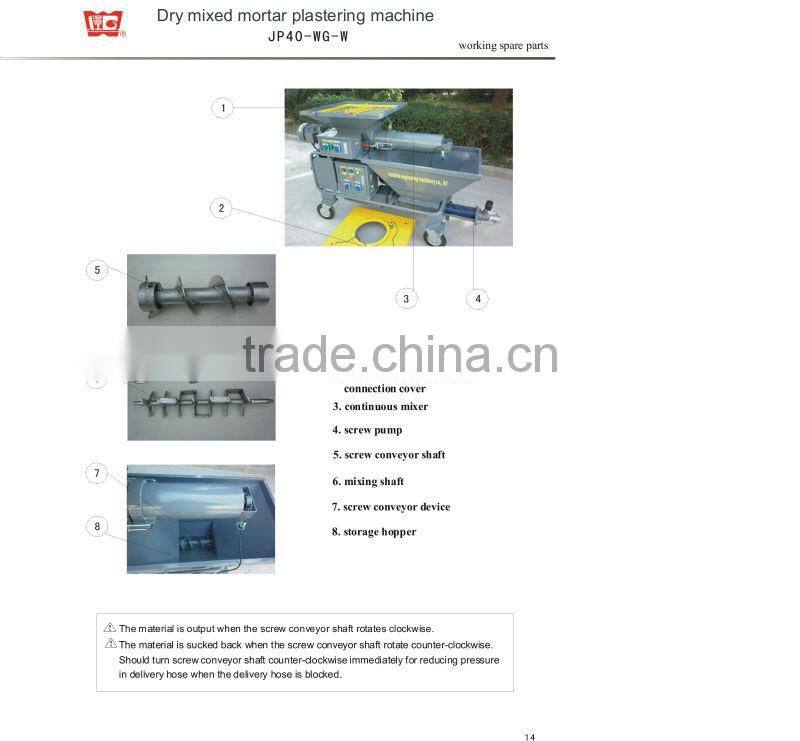

2. The structure system is shown as below:
