Specifications
ready plaster pump>produce putty machine 10years
>spray putty &gypsum
>spray distance:0-20m
>220V, 60/50HZ

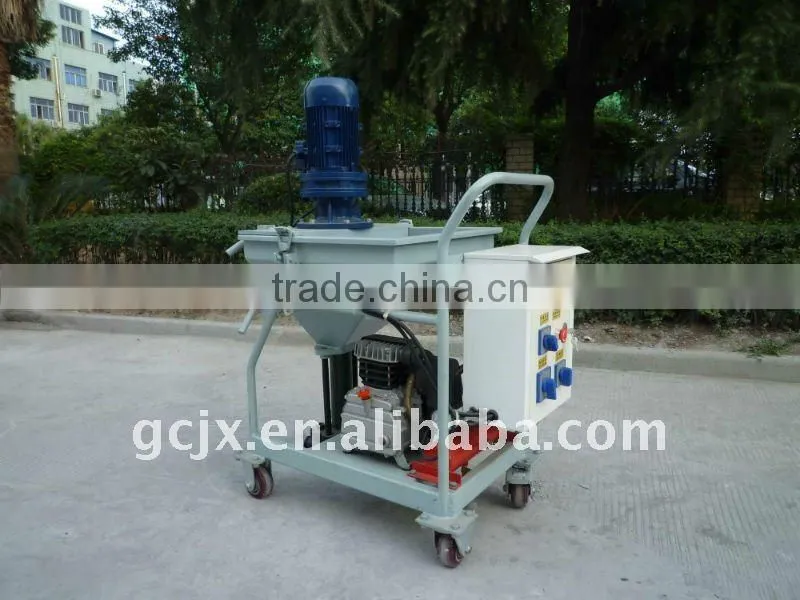

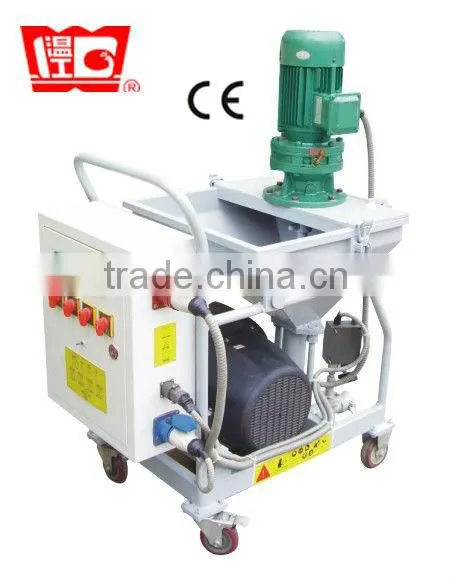

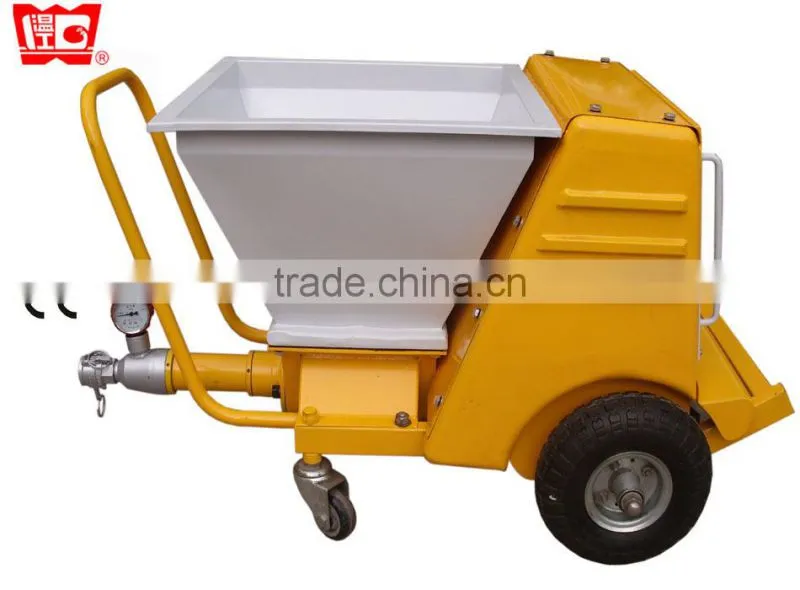

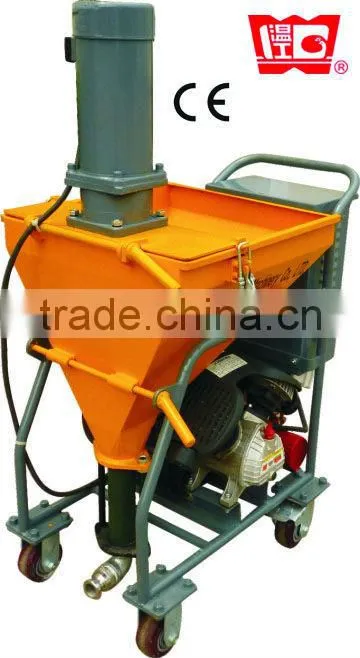

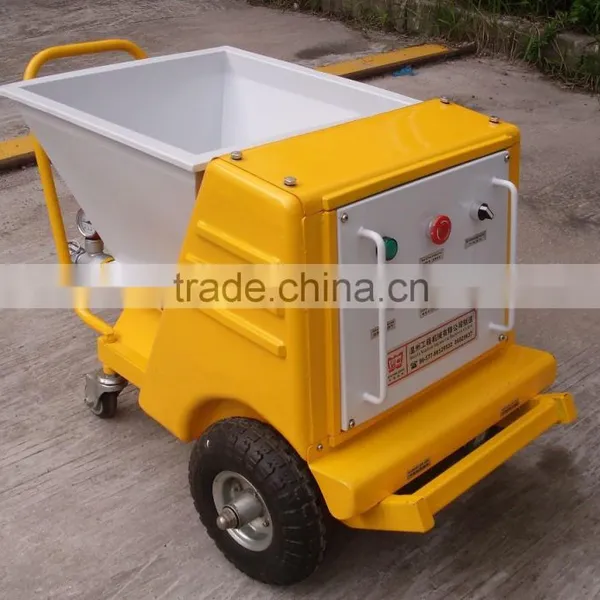

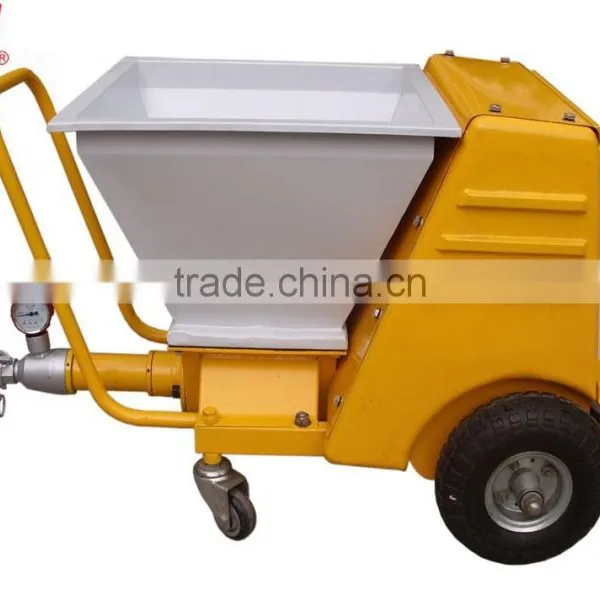

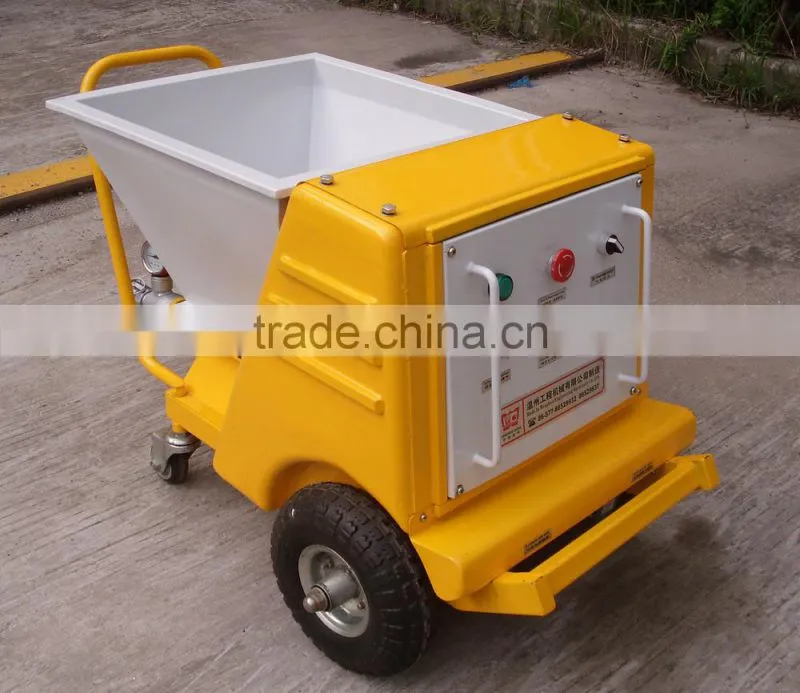

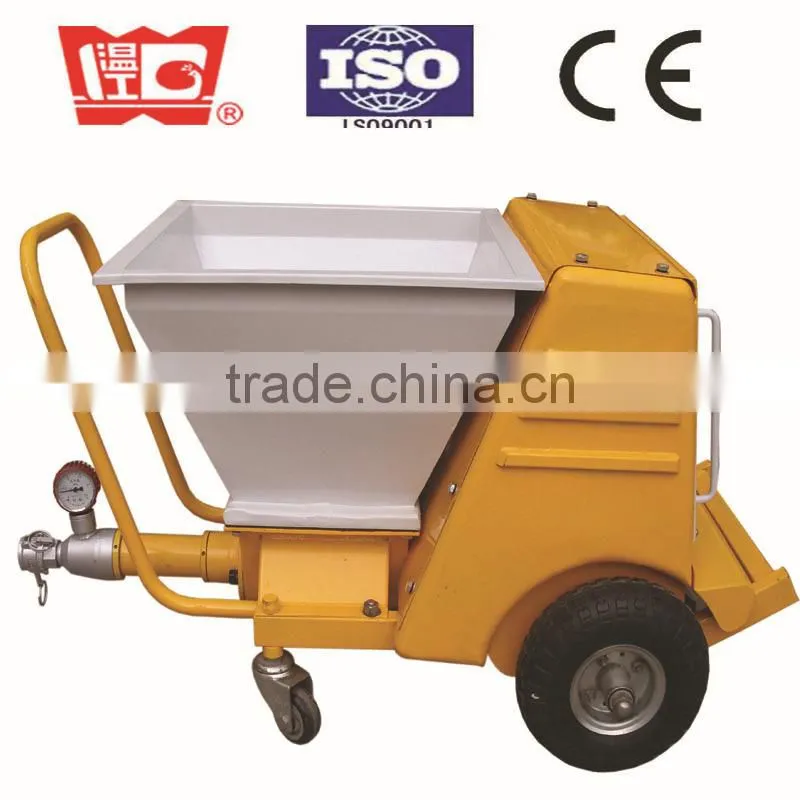

JP10 Ready plaster pump
1. JP10 JP15, JP15-1 ready plaster pump is particular smaller plastering machine for gypsum, putty, lacquer paint,latex paint.
2. With variable speed regulation, it can suit thin layer plastering for different use and characteristics highly viscous materials.
3. With compact and flexible, it's easy to move and adapt for use in narrow spaces. It has combined functions of pumping, bonding and plastering.
4.Sets the pressure protection system, and achieves the remote control. Several models can meet the voltage requirements in different countries and areas.
Technical parameters
Model |
JP10 |
JP15-1 |
JP15 |
— |
Input Power |
220V 50HZ |
220V 50HZ |
380V 50Hz |
— |
Motor power |
1.5 |
1.5 |
1.5 |
kw |
Compressor power |
— |
3 |
3 |
kw |
Maximum grain size |
<3 |
<3 |
<3 |
mm |
Output volume |
10 |
15 |
15 |
l/min |
Delivery pressure |
20 |
20 |
30 |
bar |
Delivery distance |
40 |
40 |
40 |
m |
Delivery height |
20 |
20 |
20 |
m |
Hopper content |
20 |
40 |
40 |
l |
Net weight |
35 |
80 |
145 |
kg |
|
Dimensions (Length ×Width×Height) |
1150×560×595 |
880×590×800 |
880×590×1138 |
mm |
1. JP15 and JP15-1 the functions are same only the biggest difference is that motor
JP15: 380V,3-phase,50HZ
JP15-1: 220V,1-phase,50HZ
2. JP10 series lacquer paint spraying machine is applied for putty, gypusm, lime etc.
