Specifications
wall plastering tools1.adopt German technology
2.plaster height:20m&distance:50m
3.includes water pump, air compressor

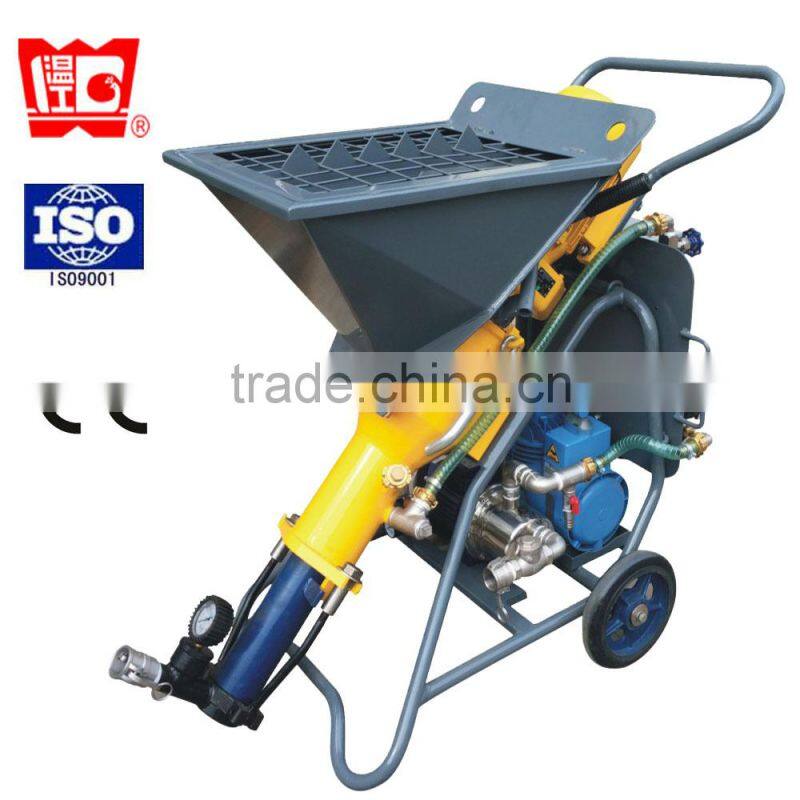

JP22 Wall plastering tools
1. JP22 is small machine introduced German technology.
2. It has water measuring function and automatic mixing of dry ready-mixed mortar function.
3.Sets pressure control protection system.
4. It can plaster max area with 500-800m3 per 8huors.
Technical parameters of JP22 Mortar plastering machine
Model |
— |
JP22 |
Supply power |
— |
400V 50Hz |
Motor power |
kw |
4 2.2 |
Maximum grain size |
mm |
4 |
Output |
l/min |
25 |
Delivery pressure |
bar |
40 |
Horizontal delivery distance |
m |
40 |
Vertical delivery distance |
m |
15 |
Hopper volume |
L |
50 |
Net weight |
kg |
185 |
Dimension (L×W×H) |
mm |
1200×660×1100 |

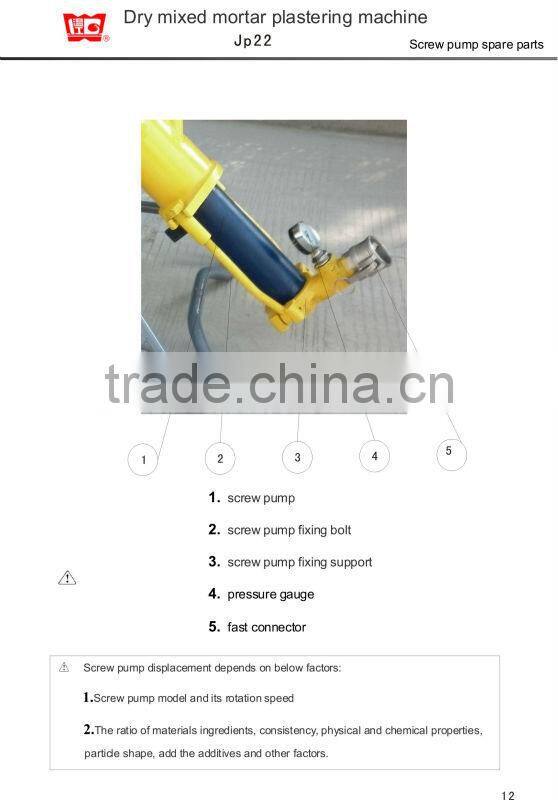

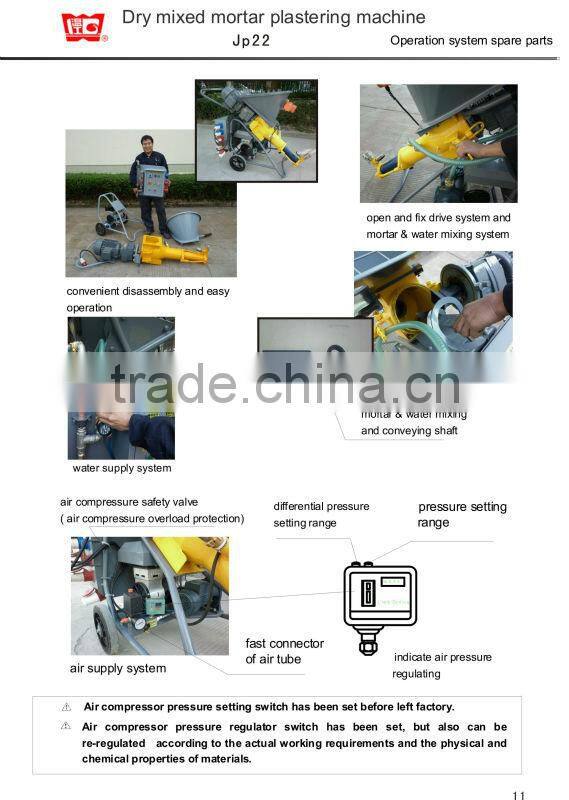

1. JP22 mortar plastering machine inside design structure:
2. JP22 CE approved and ISO9001:2008
1. Our showroom and work shop
