Specifications
cement plaster sprayer>Romote control & 3work speeds
>Sand:cement=3:1; Pressure:2Mpa
>pump+- 40m height or deep

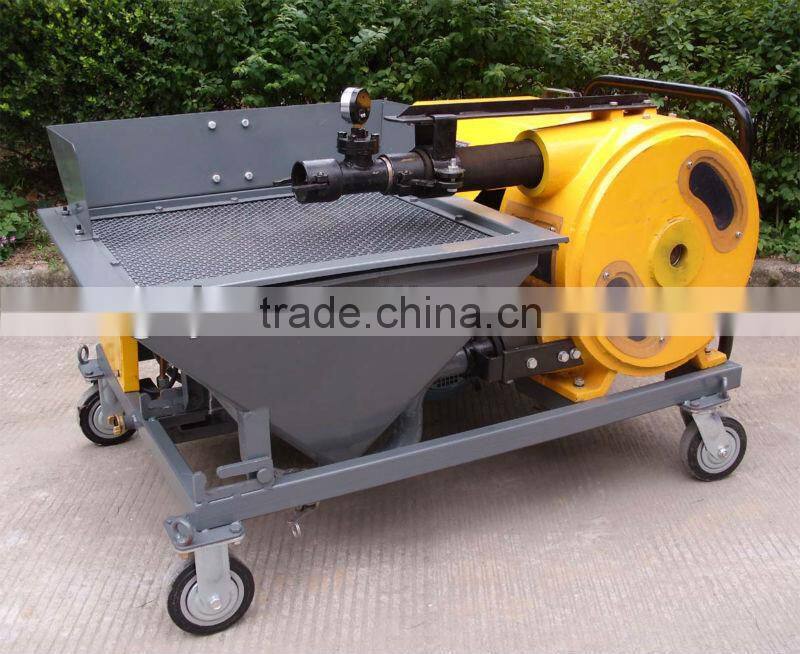

UBJ3-P Cement plaster sprayer
1. The UBJ series squeeze mortar pump integrates the functions of press grouting, conveying, grouting and plastering etc.
2. With good grouting effect, the pump installes air compressor and feeding hopper to directly convey the mixed- mortar into the pump chamber without disintegration.
3. Be widely used for engineering of construction, highway, tunnel, bridge, water conservancy, mine and line, etc.
Model |
UBJ3-P |
Supply power |
220V,3-phase,60HZ |
Motor power |
2.2/3.3/4 kw |
Output |
3 m3/h |
Air compressor displacement |
354L/min |
Delivery pressure |
2Mpa |
Horizontal delivery distance |
120m |
Vertical delivery distance |
50m |
Vibrating grid power |
0.35kw |
Hopper volume |
100L |
Net weight |
500kg |
Dimension (L×W×H) |
1510×980×810mm |

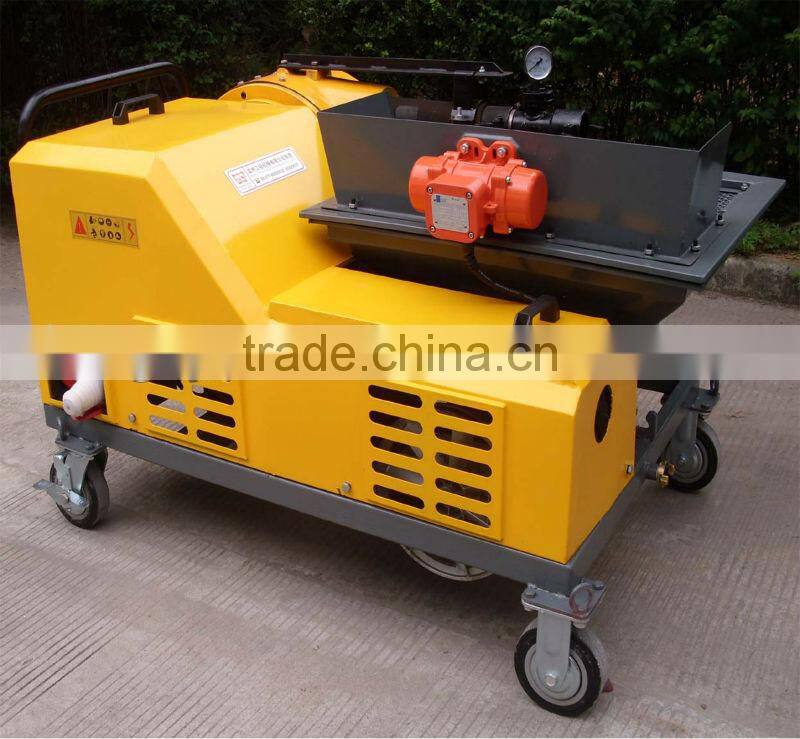

This is other respect of UBJ3-P grouting pump. It's attached vibrating motor to make the overlarge size on above for avoiding larger size objects to blocking delivery hose.
Also it attached air compressor, you can use it for plastering directly!
UBJ3-P grouting pump is always used for fireproof plastering
UBJ3-P mortar spray plastering machine was appreoved ISO9001:2000.
