Specifications
cement plaster machine for building>ISO9001:2008;make 6year
>plaster&pump mortar,fireproof
>capacity:40L/min,25bar,3000m2/8h

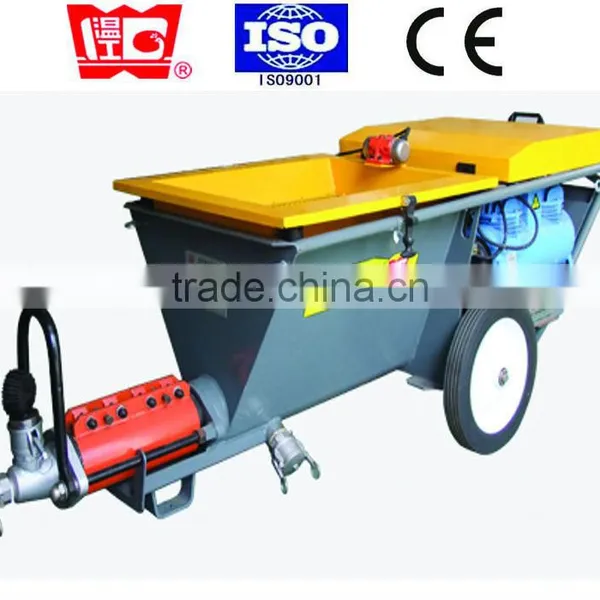

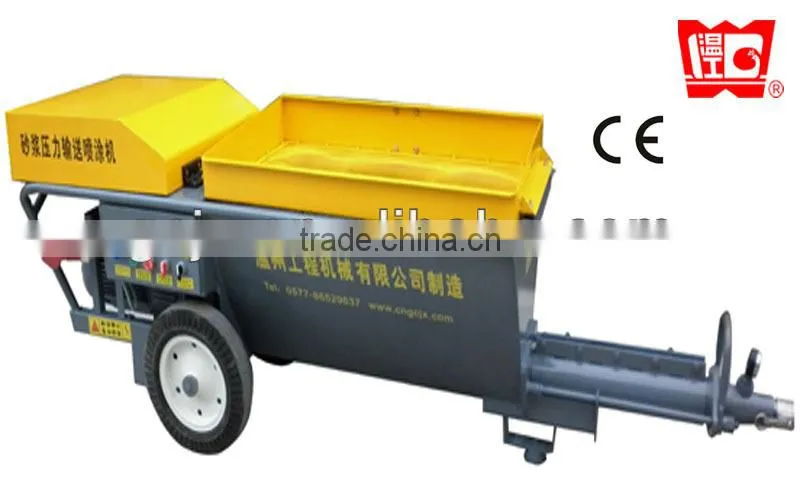

JP60-P Cement plaster machine for building
1. JP60-L,JP60-P is high cost-effective machine introduced German technology.
2. It’s applicable to delivery, bonding and plastering for various kinds of plastering mortar, thermal insulation mortar, floor surface mortar, thick layer of mortar, bonding mortar, masonry mortar, reinforced mortar, filling mortar, perfusion mortar, fiber mortar, self-leveling mortar. It equips mixer system and has the combined functions of mixing, pumping, bonding and plastering.
3. It configures large output mortar pump. It provides with variable regulation for speed, pressure and output. It set the pressure control and protection mechanism to achieves the remote control.
Technical parameters of JP60-P Mortar plastering machine
Model |
— |
JP60-L |
JP60-P |
Supply power |
— |
400V 50Hz |
400V 50Hz |
Motor power |
kw |
4.0/7.5 |
4.0/7.5 |
Maximum grain size |
mm |
6 |
6 |
Output |
l/min |
40 |
40 |
Delivery pressure |
bar |
30 |
30 |
Horizontal delivery distance |
m |
60 |
60 |
Vertical delivery distance |
m |
40 |
40 |
Mixer power |
kw |
1.1 |
— |
Mixer volume |
l |
120 |
— |
Hopper volume |
L |
100 |
100 |
Net weight |
kg |
400 |
280 |
Dimension (L×W×H) |
mm |
2290×680×1220 |
2290×680×660 |
1. JP60-P plastering machine is installed air compressor and motor, the motor is imported from Germany. The quality you can be no worried too much.
2. The vibrating sieve screen matches vibrating motor and the vibrating sieve is 10x10mm( or 8x8mm) to slecet the bigger size material out to protect stator and rotor of plastering machine.
3. JP60-P is easy to move for plastering work, it's one of ideal plastering machine for pleaster choice!
4. you can see the plastering effect with fast speed about 800-1200m2 per 7hours.
2. Our Bamua fair in Shanghai 2012
