Specifications
refractory spraying machine>ISO9001:2000;Putzmeister design
>plaster,mortar,fireproof
>plaster capacity:60L/min

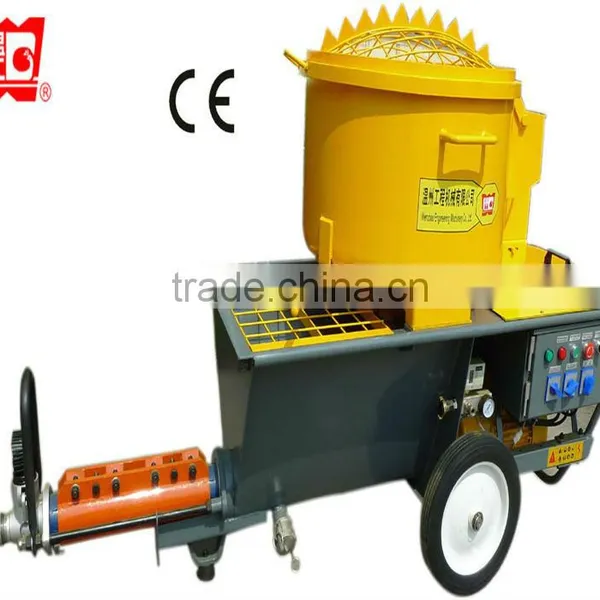

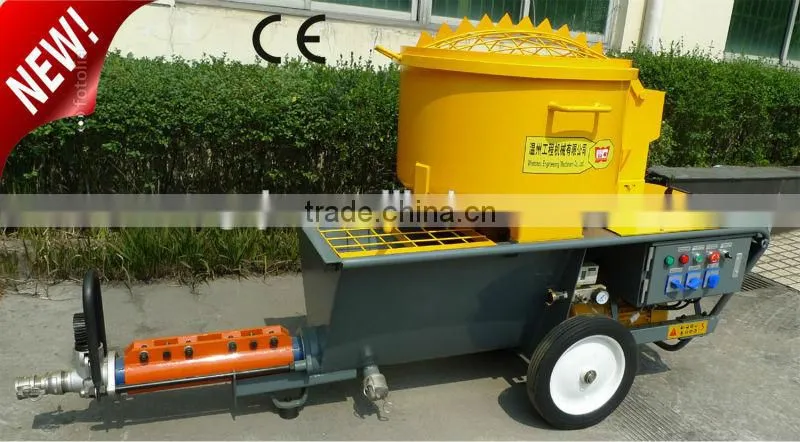

1. JP60-L, JP60-P plastering machine is high cost-effective machine introduced German technology.
2. There are two options for air comprssor and various speed of pumping motor including made in China or made in Germany. The above main compnents are same as PFT and Putzmeister! But the whole price is half of PFT and Putzmeister!
3. JP60-L is very suitable for large heavy duty plastering, it can plaster about 1000-1200m2 per 7hours. JP60-L is most suitable for longer distance pumping.
4.It provides with variable regulation for speed, pressure and output. It set the pressure control and protection mechanism to achieves the remote control.
Technical parameters of JP60-L Mortar plastering machine
Model |
— |
JP60-L |
JP60-P |
Supply power |
— |
400V 50Hz |
400V 50Hz |
Motor power |
kw |
4.0/7.5 |
4.0/7.5 |
Maximum grain size |
mm |
6 |
6 |
Output |
l/min |
40 |
40 |
Delivery pressure |
bar |
30 |
30 |
Horizontal delivery distance |
m |
60 |
60 |
Vertical delivery distance |
m |
40 |
40 |
Mixer power |
kw |
1.1 |
— |
Mixer volume |
l |
120 |
— |
Hopper volume |
L |
100 |
100 |
Net weight |
kg |
400 |
280 |
Dimension (L×W×H) |
mm |
2290×680×1220 |
2290×680×660 |
1. JP60-L always is exported to PHILIPPINES each month, it always is used for refractory, fireproofing mortar and stucco spraying for construction.

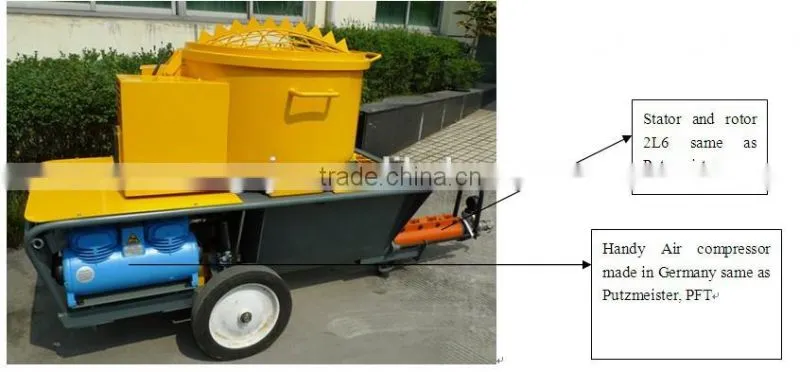

2. It's optional to choose air compressor and pumping motor made in German or made in China. JP60-P the main components are same as JP70-P as below shown:
3. JP60-L standard spare parts:
4. It's suitable for large plastering about 1000-2000m2/7hours. There are 5people as one team: 1for plastering, 1for controlling machine, 1 for feeding hopper, 3for trowelling and finishing wall surface.
2. Our Bamua fair in Shanghai 2012
