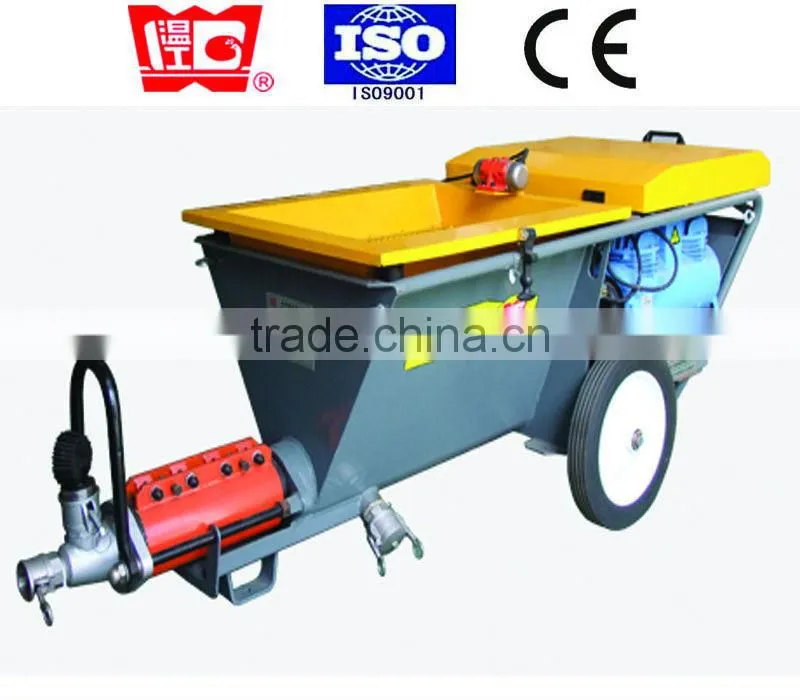

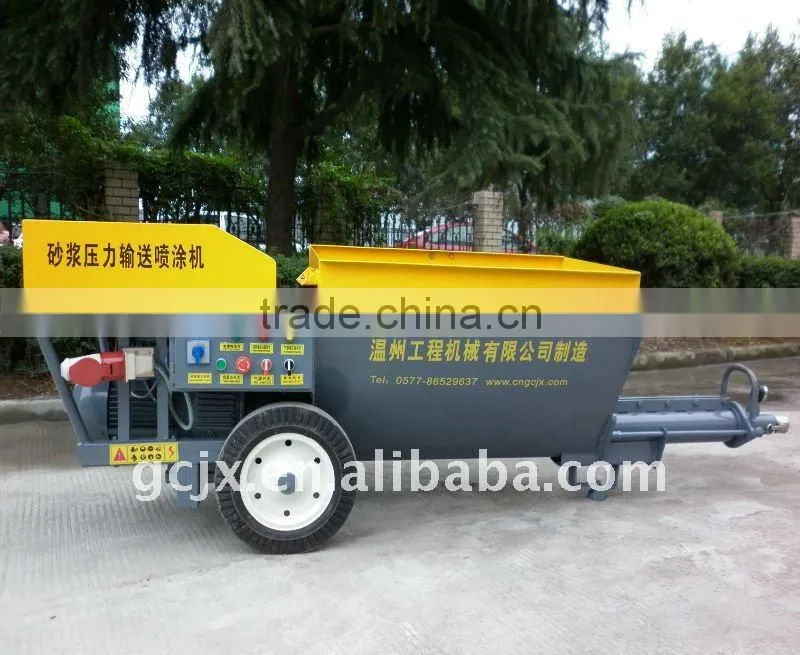

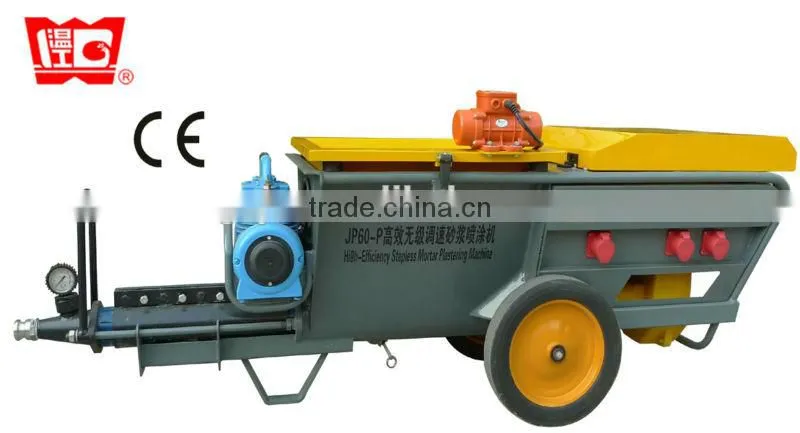

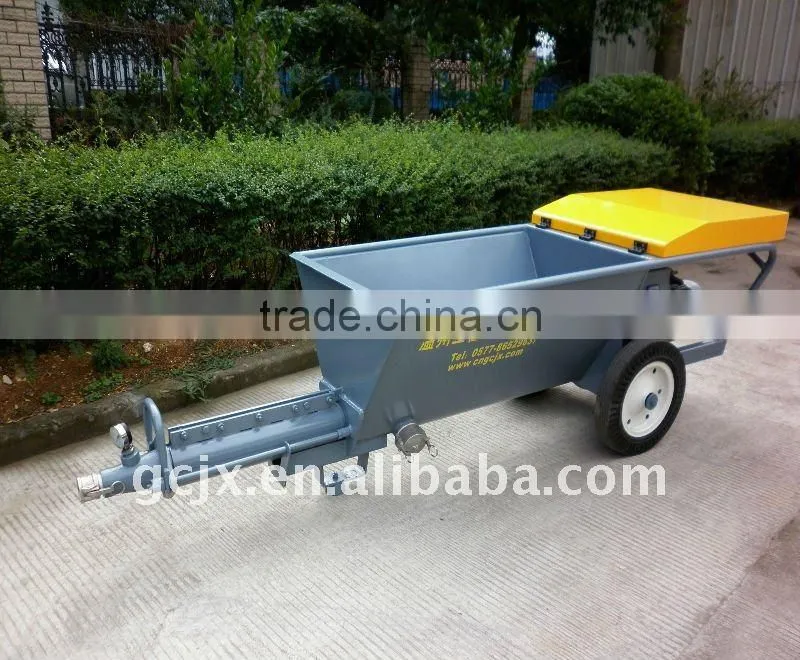

JP60-P Plasterer equipment
1. It's optional to choose the universal various speed motor or two speed working motor for worm pump. It can spray for ready-mix dry and wet mortar out of a bag or silo.
2. The basis for this is a powerful worm pump with a performance of up to 60 l/min.
3. Suitable for: materials up to 6 mm grain, e.g. ground coat plasters and insulating plasters, rough coat and textured plasters, trowel plaster, adhesive bonded joint, masonry mortar, refractory mortar, sealing suspensions, injection mortar, filling and anchoring mortar, dispersion plaster, fiber mortar, fibreglass concrete, bonding mortar, floor screed – infinitely variable according to material from approx. 7 l/min to 60 l/min.
Technical parameters
Model |
— |
JP60-P |
Supply power |
— |
400V 50Hz |
Motor power |
kw |
4.0/7.5 |
Maximum grain size |
mm |
6 |
Output |
l/min |
40 |
Delivery pressure |
bar |
30 |
Horizontal delivery distance |
m |
60 |
Vertical delivery distance |
m |
40 |
Mixer power |
kw |
— |
Mixer volume |
l |
— |
Hopper volume |
L |
100 |
Net weight |
kg |
280 |
Dimension (L×W×H) |
mm |
2290×680×660 |

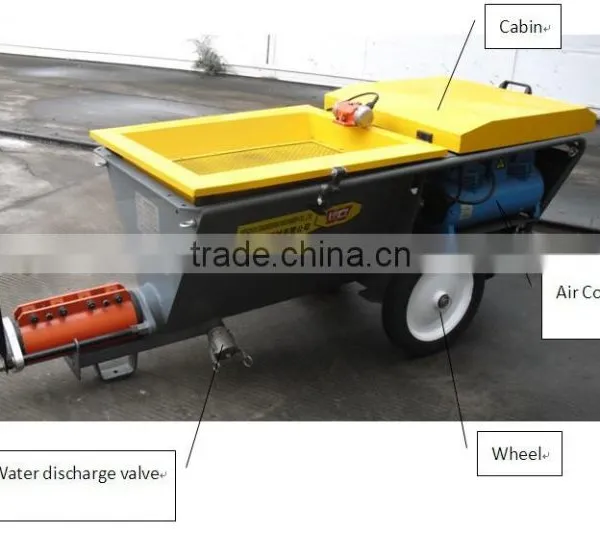

1. Wall plastering equipment JP60-P working structure as below:
Germany air compressor and Germany pumping motor
2. JP60-P is added air compressr on JP60-S which can do plaster and pump mortar or fireproofing or fiberglass mortar etc.
3. Make vibrating motor on JP60-P to avoid oer lager grain size to block delivery hose and spraying gun.
4. JP60-P has been used for 3years in Mexcio and Philipines for plastering motar.
