ISO9001:2008 Aliva 6m3/h Refractory Spraying Machine

Name: ISO9001:2008 Aliva 6m3/h Refractory Spraying Machine
Brand: Wengong
SKU: 139836617

$ISO9001:2008 Aliva 6m3/h Refractory Spraying Machine thumbnail-1$

$ISO9001:2008 Aliva 6m3/h Refractory Spraying Machine thumbnail-2$

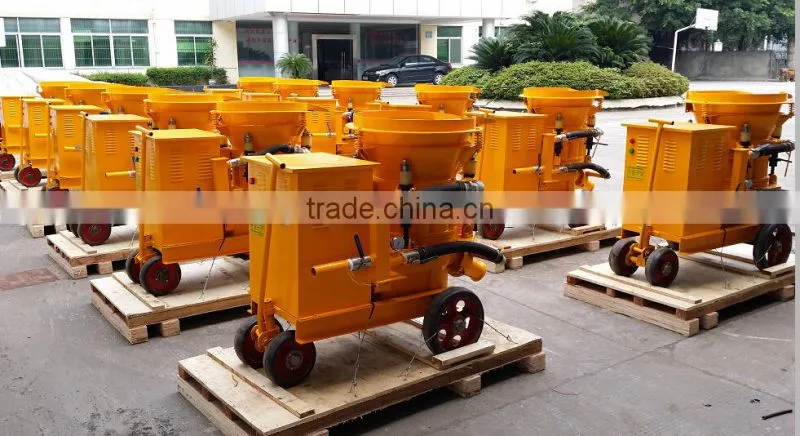

$ISO9001:2008 Aliva 6m3/h Refractory Spraying Machine photo-1$

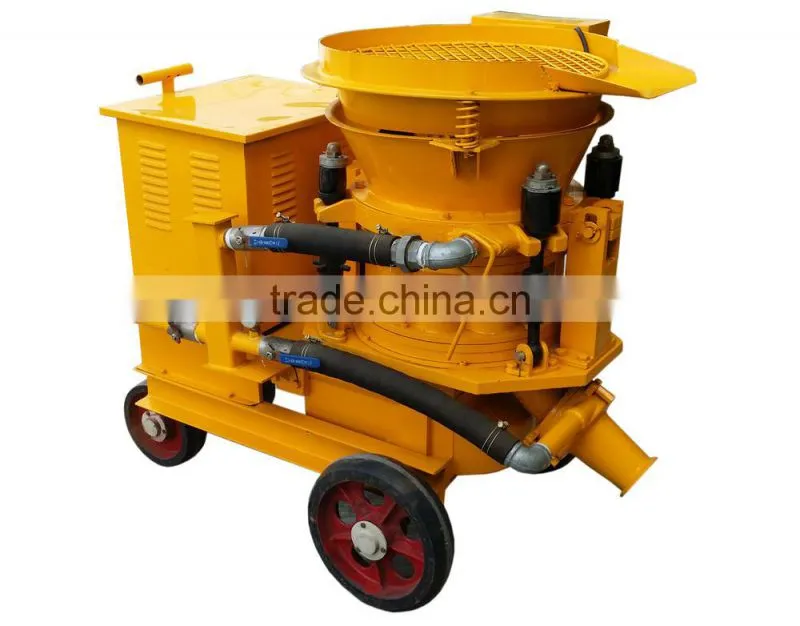

$ISO9001:2008 Aliva 6m3/h Refractory Spraying Machine photo-2$

US$ 1,800 - 2,800 MOQ: 1 Set

Key Specifications

Condition:

New

Power Type:

Electric

Place of Origin:

Zhejiang, China

Wenzhou Engineering Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai/ ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Power Type Electric

Place of Origin Zhejiang, China

Brand Name Wengong

Model Number PZ-6 refractory spraying machine

Power(W) 5.5kw

Weight 700kgs

Dimension(L*W*H) 1300 x 900x 1000mm

Certification CE

Warranty 6MONTHS

After-sales Service Provided Overseas third-party support available

Specifications

refractory spraying machine
1. ISO:9001, CE,make it 20years
2.6m3/h, dry refractory
3.stardard part:hose,spraying gun

PZ-6 Refractory spraying machine

1.Model PZ-6 concrete gunite machine is the most ideal device for the concrete anchor spray construction, wet spray and moist spray.

2. And be widely used for the anchor spray supporting construction in tunnel, culvert and underground projects.

3.The accelerating admixture conveying system in the machine is independent measured precisely by standard metering pump which is freely adjusted.

4. And uniquely-made rubber bushing block on the swirler benefits mixture delivery.

$ISO9001:2008 Aliva 6m3/h refractory spraying machine$

Technical parameter

Model	PZ-6	PZ-9
Production capacity (m3/h)	6	7-9
Max horizontal delivery distance(m)	200	200
Max vertical delivery distance(m)	40	40
Cement-sand ratio	1 : 3-5	1 : 3-5
Water-cement ratio	≤0.4-0.45	≤0.4-0.45
Vibration motor power(kw)	0.25	0.25
Max aggregate size (mm)	20	20
Inner diameter of delivery hose(mm)	51	51
Working air pressure (Mpa)	0.2-0.4	0.2-0.4
Air consumption(m3/h)	7-8	10-12
Motor power(kw)	5.5	7.5
Dimensions(mm)	1300×900×1100	1300×800×1300
Net Weight(kg)	700	900
