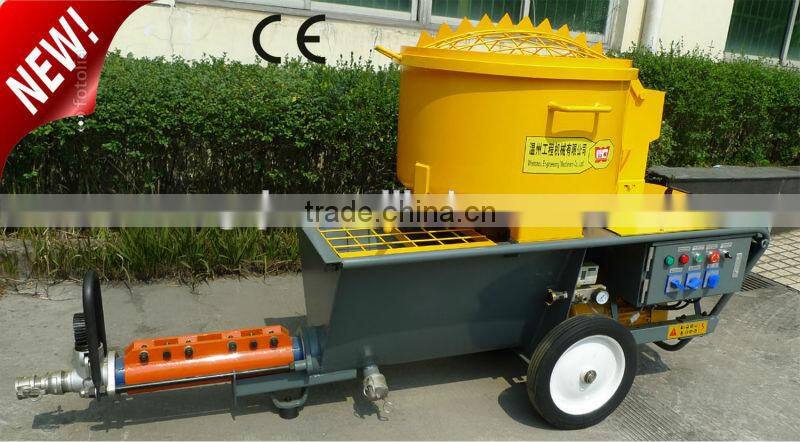

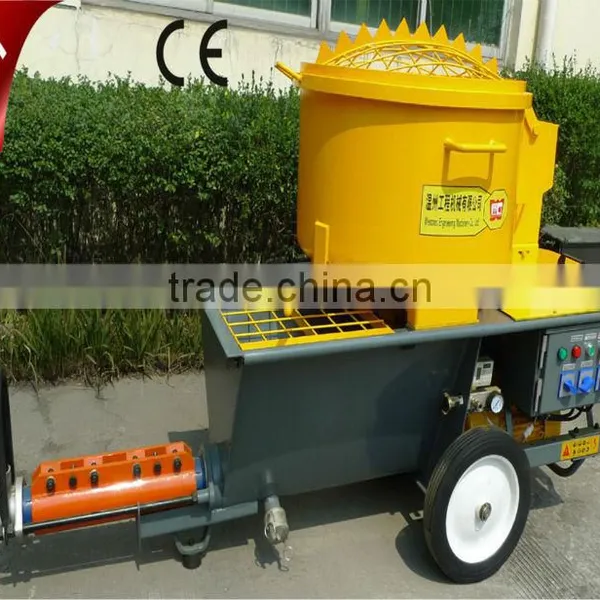

JP60-L Mortar cement plastering machine
1. JP60-L, JP60-P plastering machine is high cost-effective machine introduced German technology.
2. JP60-L is very suitable for large heavy duty plastering, it can plaster about 1000-1200m2 per 7hours. JP60-L is most suitable for longer distance pumping.
3.It provides with variable regulation for speed, pressure and output. It set the pressure control and protection mechanism to achieves the remote control.
4. The ture feedback from our customer is that use JP60-L plastering machine for spraying fireproofing, the stator and rotor service life as below:
Desnity: 450KG/m3
Stator life: 1500-3000 bags x 21.5 kg/bag
Rotor life: 3000-6000 bags x 21.5 kg/ bag
Technical parameters of JP60-L Mortar plastering machine
Model |
— |
JP60-L |
JP60-P |
Supply power |
— |
400V 50Hz |
400V 50Hz |
Motor power |
kw |
4.0/7.5 |
4.0/7.5 |
Maximum grain size |
mm |
6 |
6 |
Output |
l/min |
40 |
40 |
Delivery pressure |
bar |
30 |
30 |
Horizontal delivery distance |
m |
60 |
60 |
Vertical delivery distance |
m |
40 |
40 |
Mixer power |
kw |
1.1 |
— |
Mixer volume |
l |
120 |
— |
Hopper volume |
L |
100 |
100 |
Net weight |
kg |
400 |
280 |
Dimension (L×W×H) |
mm |
2290×680×1220 |
2290×680×660 |

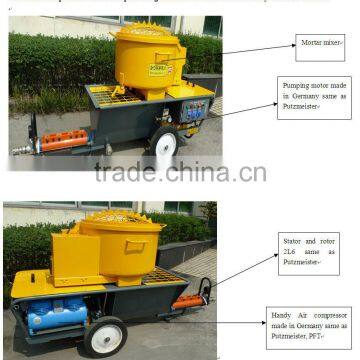

1. Main components of JP60-L are made in Germany:
Remark:There are two options for air comprssor and various speed of pumping motor including made in China or made in Germany. The above main compnents are same as PFT and Putzmeister! But the whole price is half of PFT and Putzmeister!
2. JP60-L is used for plastering fireproofing, mortar, insulation material etc.
3. Main spare parts of JP60-L
4. JP60-L CE Certificate
5. Training service for JP60-L in India
2. Our Bamua fair in Shanghai 2012 and 2014
