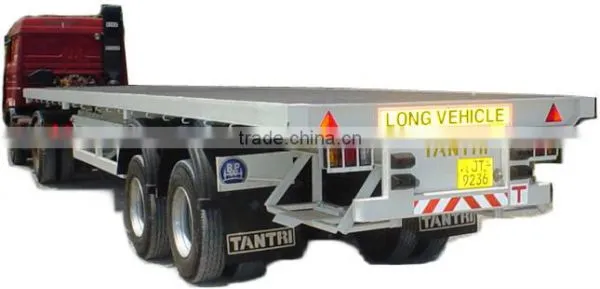

Help CenterHeavy Duty 40 Feet Flat Deck Semi Trailer
Related Products
Specifications
Heavy Duty Flat Deck Trailer 40Ft made semi trailers to suit the country's road regulationsTantri Offer - Flat Deck Trailer 40Ft About Tantri Established in 1991 to cater the growing trailer market in and around Sri Lanka. Founder Mr. D J Haputantri. All the trailers manufactured by Tantri are carefully designed using CAD and continuously upgraded to suit the continuously growing demands and the latest developments in the field. Well-equipped design lab enables customers to get a trailer designed to suit their exact requirement. Tantri custom made trailers have become popular in Sri Lanka, as there is no extra charge for the design. Due to this reason, numbers of trailer models have exceeded 100 up-to-date. Tantri Trailers have obtained the distributorship of many leading trailer parts manufacturers in the world. This enables the customers to select their favorite brand of axles, suspension systems, brake systems etc. Tantri also deals into: # Ro Ro Trailers # Towers # Curtain Trailers # Vacuum Tanker # Tank Tanker
Specifications :-
Model - TFB40-2
Trailer Weight - 6400 Kg. (unladen)
Overall Length - 12200mm, Deck Length (40 Feet), Width - 2410mm, Height - 1500 mm
Main Frame - High Tensile Steel 400x200x12x9 mm (main “I” beam),150x200x9x6 mm(“I” beam
bolsters) and 150x75x6mm (side “C” channel &cross members).
Loading Deck - 3.5mm Steel checkered plate
Container locks - 08 Nos. Multi Twist locks
Mudguards - Heavy duty plastic mudguards with mud flaps.
Landing Legs - 80,000 Kg. Static loading capacity.
Brakes - 2 Line pneumatic brake system with RE6 relay emergency valve.
King Pin - 50 mm Dia forged steel King Pin
Lights - LED 24V light system (signal, brake, parking & number plate)
Paints - Shot blasted, epoxy primer coated and top coated with customer preferred colour.
Running Gear :-
Axles - 2 x 13 ton capacity square beam axles
Suspension - Tandem suspension system (04 Nos. leaf spring bundles)
Wheels - 08 Nos. 7.50 x 20 , 10 Holes hub
Tires - 08 Nos. 10.00 x 20, 16PR (Tube Tires)
Including :- Options :-
Spare wheel with carrier Headboard
Rear bumper guards Additional spare wheel carrier
Safety crash bar both sides Tubeless tires / rims
Safety luminous fittings Additional twist locks (If length extendable)
Hooks for tie ropes Tool box, ABS Brake
