Home > Transportation > Trailer > Other Trailers > Tandem Flat Deck Trailer 45 Feet

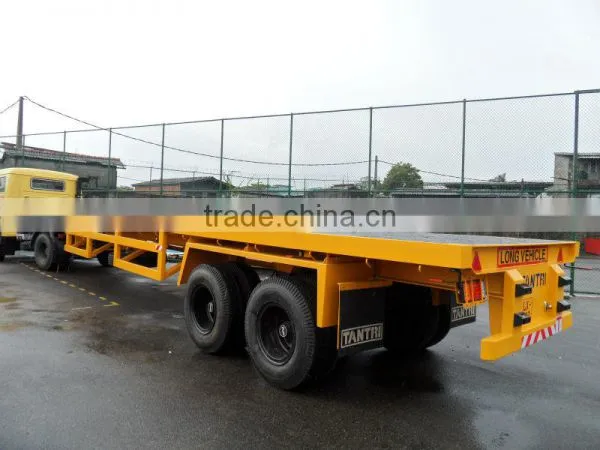

Tandem Flat Deck Trailer 45 Feet

Tandem Flat Deck Trailer 45 Feet thumbnail-1
Tandem Flat Deck Trailer 45 Feet photo-1
US$ 14,500 - 17,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Max Payload:
40ton
Size:
45 feet
Place of Origin:
Sri Lanka
Contact Supplier Request Quote Chat Now
Tantri Trailers (pvt) Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Colombo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Max Payload 40ton
Size 45 feet
Place of Origin Sri Lanka
Brand Name TANTRI
Model Number TFB45

Specifications

45 feet long
2 x 13ton axles
40 loading capacity

Specifications :-

Model                   - TFB45

Trailer Weight        -7050 Kg.(unladen)

Overall Length       - 13730mm, Deck Length – 13710mm, Width - 2410mm, Height - 1500 mm

Main Frame          - High Tensile Steel 400x200x12x9 mm (main “I” beam),150x200x9x6 mm(“I” beam

                                bolsters) and 150x75x6mm (side “C” channel &cross members).

Loading Deck       - 3.5mm Steel checkered plate

Container locks    -10 Nos. Multi Twist locks

Mudguards          - Heavy duty plastic mudguards with mud flaps.

Landing Legs       - 80,000 Kg. Static loading capacity.

Brakes                - 2 Line pneumatic brake system with RE6 relay emergency valve.

King Pin              - 50 mm Dia forged steel King Pin

Lights                 - LED 24V light system (signal, brake, parking & number plate)

Paints                 - Shot blasted, epoxy primer coated and top coated with customer preferred colour.



Running Gear :-

Axles                     - 2 x 13 ton capacity square beam axles

Suspension            - Tandem suspension system (04 Nos. leaf spring bundles)
Wheels                  - 08 Nos. 9.00 x 22.5, 10 Holes hub

Tyres                     - 08 Nos. 295/80 x 22.5, 16/ 18PR Tubeless tyres



Including :-                                                                                     Options :-

Spare wheel with carrier                                                                    Headboard

Rear bumper guards                                                                         Additional spare wheel carrier

Safety crash bar both sides                                                               Tool box

Safety luminous fittings                                                                     Additional twist locks (If length extendable)

Hooks for tie ropes                                                                                                      ABS Brake
