50 Ton Tandem Bogie Trailer

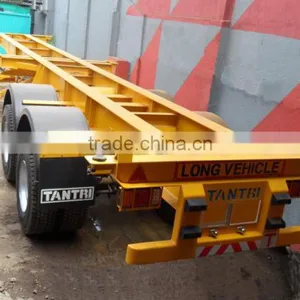

50 Ton Tandem Bogie Trailer thumbnail-1

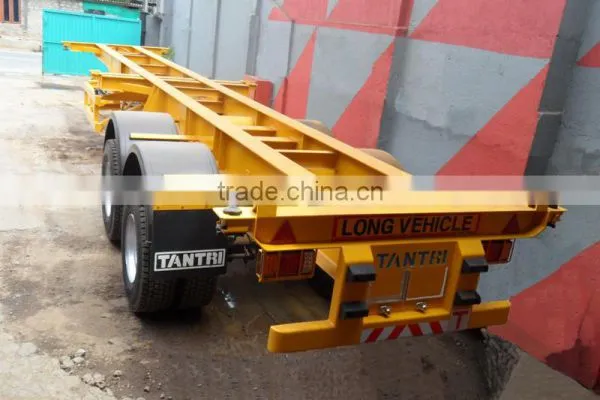

50 Ton Tandem Bogie Trailer photo-1
US$ 16,000 - 20,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Semi-Trailer
Material:
Steel
Certification:
Other, ISO
Contact Supplier Request Quote Chat Now
Tantri Trailers (pvt) Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Colombo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Semi-Trailer
Material Steel
Certification Other, ISO
Size 40 feet
Max Payload 50ton
Place of Origin Sri Lanka
Brand Name TANTRI
Model Number TSK40-B

Specifications

Capacity - 50ton
02 nos. 32ton bogie axle
Heavy duty chassis
Tubeless tyres

Specifications :-

Model                   - TSK40-B

Trailer Weight       - 5850 Kg. (unladen),

Overall Length       - 12205mm, Deck Length (40 Feet), Width - 2410mm, Height - 1500 mm

Main Frame          - High Tensile Steel 400x200x12x9mm (main “I” beam), 150x200x9x6mm (“I” beam

                              bolsters) and 150x75x6mm.

Container locks    - 08 Nos. Multi Twist locks

Mudguards           - Heavy duty plastic mudguards with mud flaps.

Landing Legs        - 80,000 Kg. Static loading capacity.

Brakes                 - 2 Line pneumatic brake system with RE6 relay emergency valve.

King Pin               - 50 mm Dia forged steel King Pin

Lights                  - LED 24V light system (signal, brake, parking & number plate)

Paints                 - Shot blasted, epoxy primer coated and top coated with customer preferred colour.



Running Gear :-

Axles                     - 2 x 16 ton capacity bogie axles

Suspension            - Bogie suspension system
Wheels                  - 8.00 x 20, 10 Holes hub

Tires                      - 08 Nos. 11.00R x 20, 18PR (Tube Tires)



Including :-                                                                                     Options :-

Spare wheel with carrier                                                                    Additional spare wheel carrier

Rear bumper guards                                                                         Tool box

Safety crash bar both sides                                                              Additional twist locks (If length extendable)

Safety luminous fittings                                                                                             Tubeless tires/rims                                                                                                                                                                                                     ABS Brake
