Grain Bucket chain conveyor/ rice mill bucket elevator
Characteristics of Grain Chain Bucket Elevator
Beautiful appearance, Small volume, small power consumption, big delivery value;
Transmission mechanism adopt cycloidal pin wheel reducer direct connection drive,smoothness transmission,reliable, easy for installation and repair,head wheel adopt encapsulation technology increase coefficient of riction;
Having reasonable running structure, the bucket elevator coefficient of friction is large.
The grain chain bucket elevator adopting high-strength plastic bucketI(HDPE buckets), which has long service time and large capacity.
Grain chain bucket elevator With high strength polyester dustpan belt, strength of tensile is high, lower tensile rate, service time is long.
There is an anti pin organ in the machine. When the power is cut off and the grain chain bucket elevator suddenly stopped, materials won't fall back down from it, so it can reduce raking out. When we go to check, the strap won't reverse so it can insure the checker safe.
Models of Grain Chain Bucket Elevator
TDTG bucket elevator models ( based on the wheat/corn,0.72t/m3) | ||||
|
Line speed (m/s) |
Model |
Head wheel diameter (mm) |
Capacity (t/h) |
Bucket size |
|
2.7
|
TDTG40/18
|
400 |
20 28 |
DQ1814 DQ1914 |
TDTG40/23 |
400 |
35 |
DQ2316 DQ2314 |
|
TDTG60/33 |
600 |
105 160 |
DQ3321 DQ3325 |
|
|
3.4
|
TDTG40/18 TDTG40/23 |
400 400 |
35 50 |
DQ1914 DQ2316 DQ2314 |
TDTG50/28 |
500 |
60 80 |
DQ2816 DQ2817 |
|
TDTG60/33 |
600 |
130 200 |
DQ3321 DQ3325 |
|

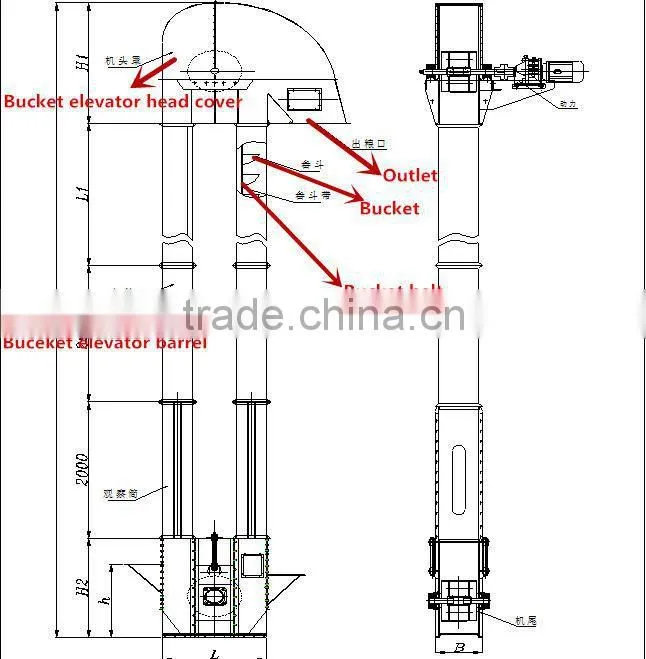

Grain Bucket Elevator Structure

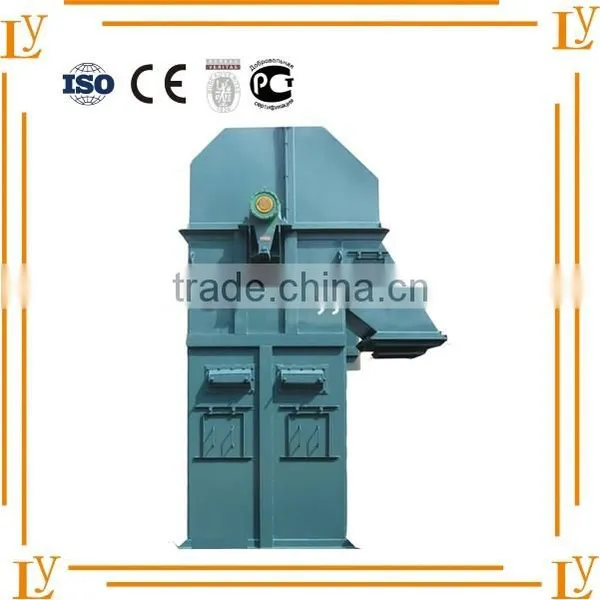

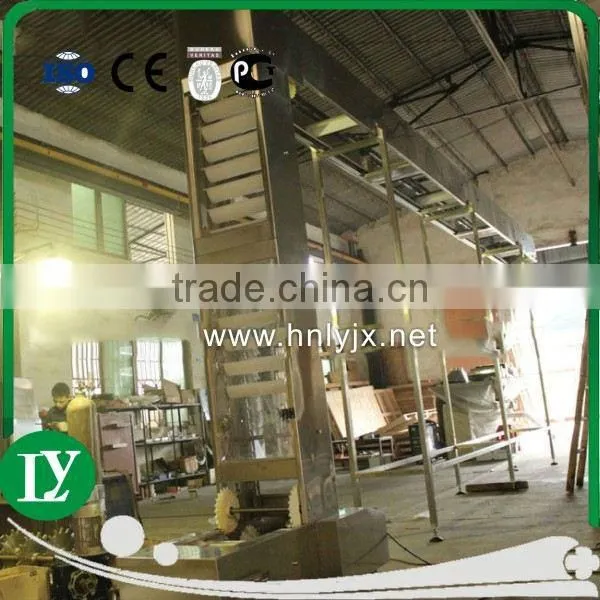

Images of bucket elevator:
Factory Producing of bucket elevator :

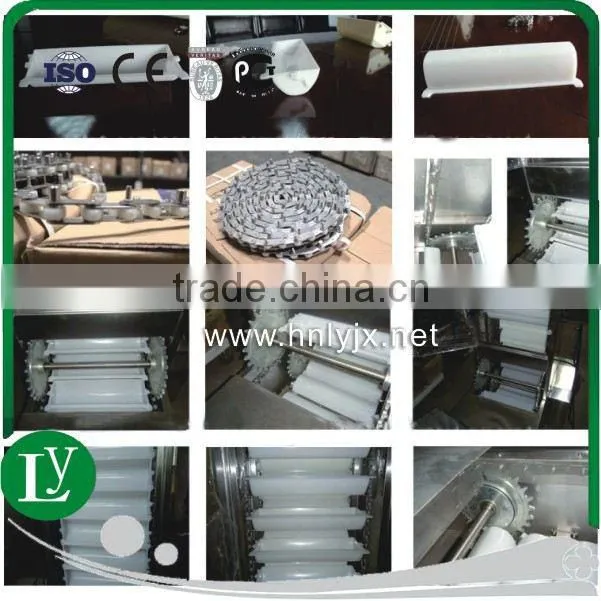

Spare Parts of bucket elevator:

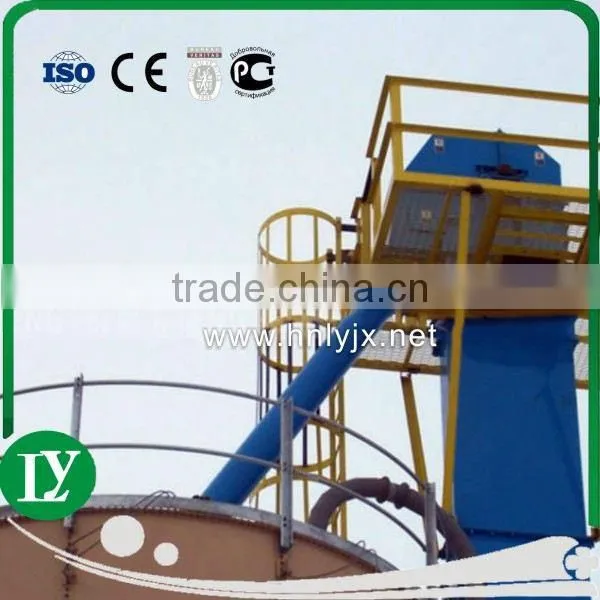

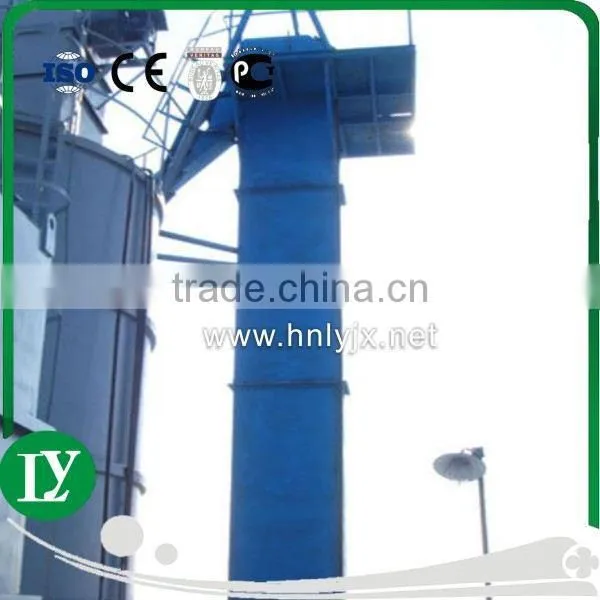

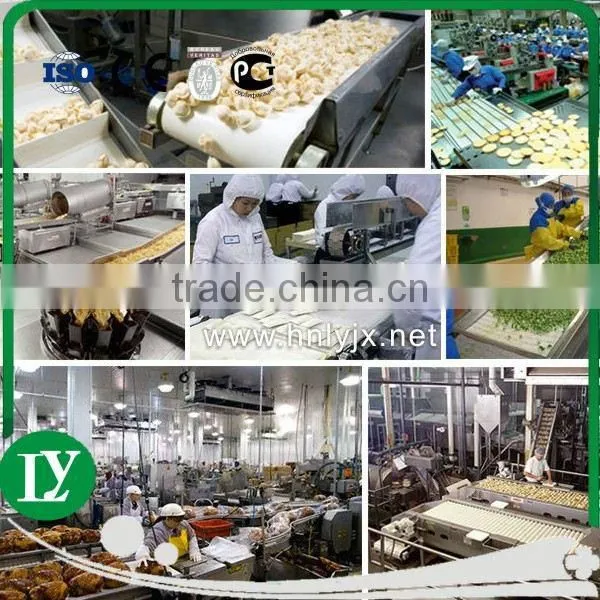

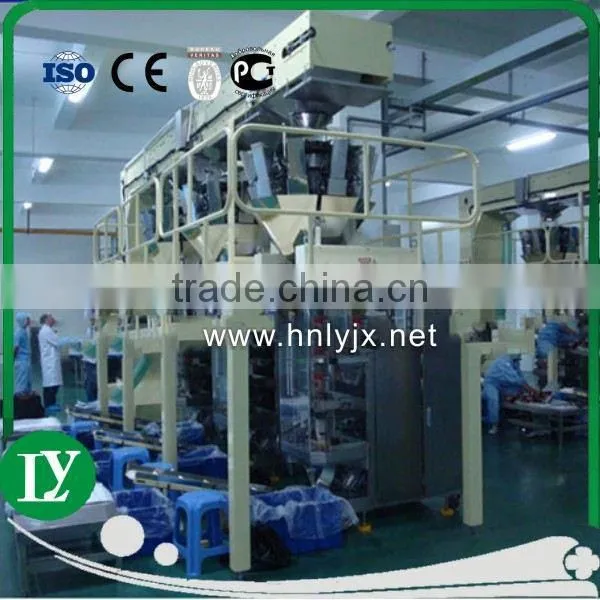

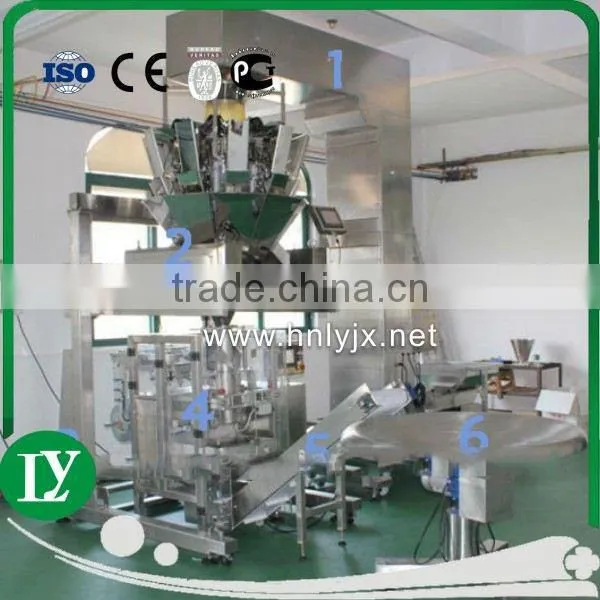

Application of bucket elevator :

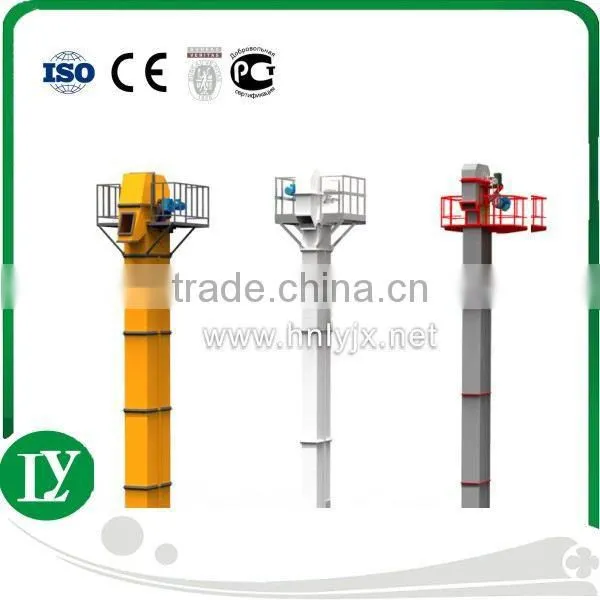

More Images of bucket elevator:

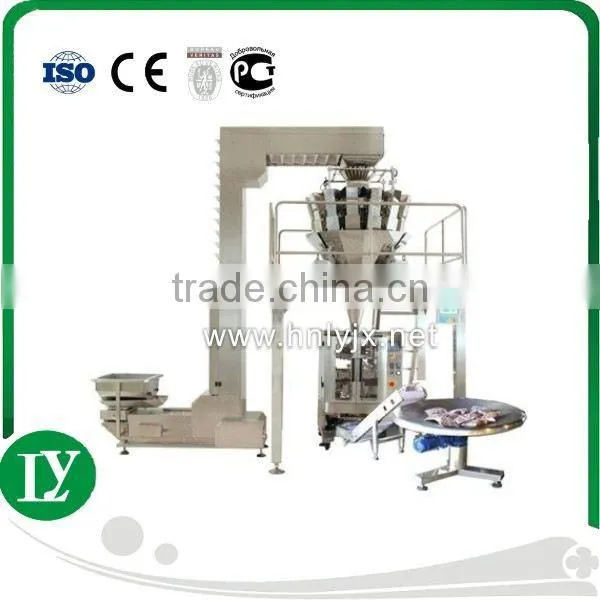

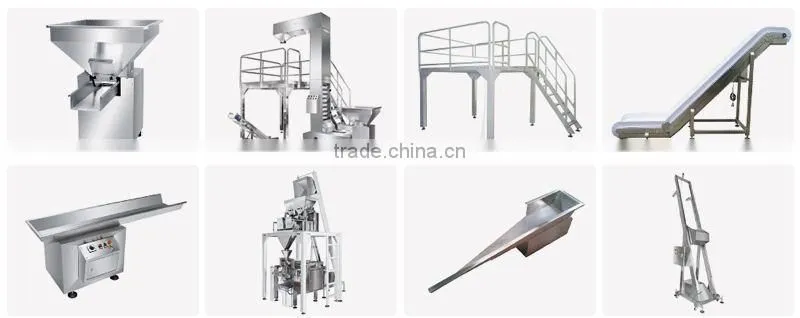

Related Products of bucket elevator:
Customer Visting of bucket elevator :
