China hot sale factory direct price wear resistant bucket elevator
Product description:

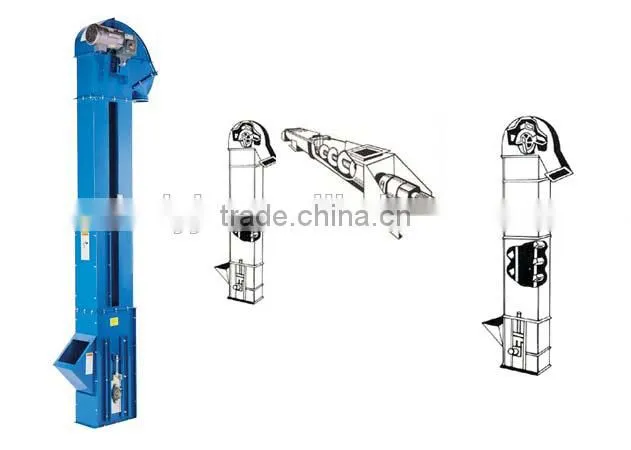

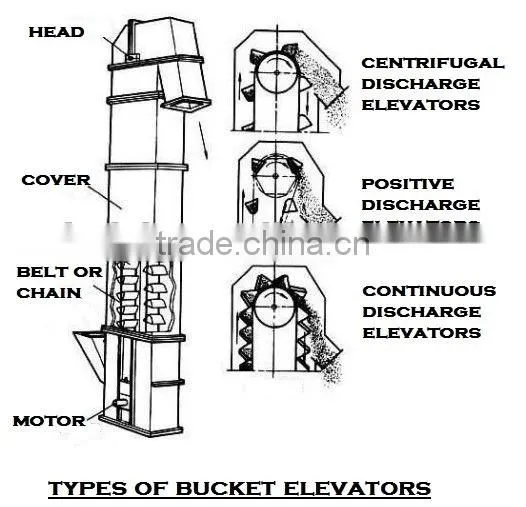

Bucket elevators are designed to move flowing powders or bulk solids vertically. Bucket elevators use an
endless belt or chain and have a series of buckets attached to it. Bulk material is spread into an inlet hopper.
Buckets (or cups) dig into the material and convey it up and over the head sprocket/pulley, and then throw
the material out a discharge throat.

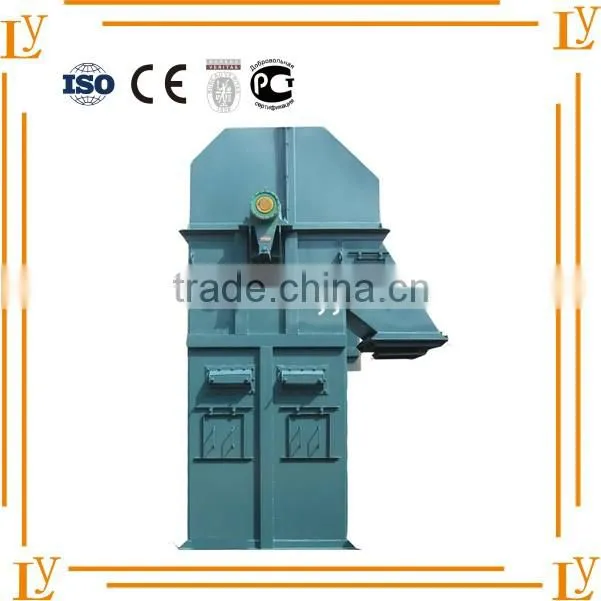

Bucket elevator is composed of machine head, main frame, maintenance cylinder, ventilators, dustpan,
dustpan belt and machine base. The materials are fed into the machine from the bottom and discharged
from the top.
1. Firstly, the materials are evenly fed into the dustpan on the machine base;
2. Secondly, the materials are elevated into the machine head;
3. Thirdly, the raw materials are dumped into the targeted machine.
Features:
1. Fully closed, no dust flying that will help to improve working conditions.
2. Efficiently avoid the accumulation of products and minimize the breakage of grain. The bucket elevator
can operate continually under full load condition and can start smoothly under bucket full.
3. A wide range of elevated, not only handle the general powder, and elevate the mill cut larger materials .
4. Long service life, it seldom occurs extrusion and collision phenomenon.
5. Easy operation and maintenance, less vulnerable pieces.
Having reasonable running structure, the coefficient of friction is large.
Adopting high-strength plastic bucket, which has long service time and large capacity.
With high strength polyester dustpan belt, strength of tensile is high, lower tensile rate, service time is long.
There is an anti pin organ in the machine. When the power is cut off and the bucket elevator suddenly stopped, materials won't fall back down from it, so it can reduce raking out. When we go to check, the strap won't reverse so it can insure the checker safe.
Technical parameters:

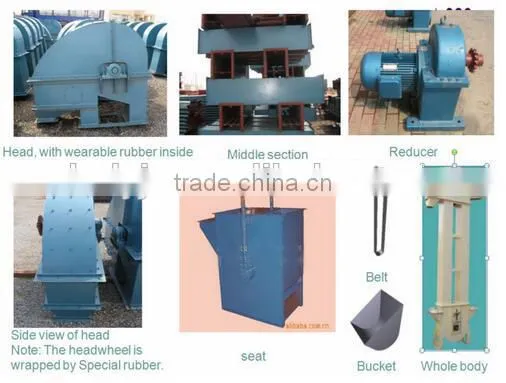

Parts of bucket elevator:
It consists of head section with driving pulley, elevator boot (down section) with take-up pulley,
elevator casing, driving device and back stop ,braking device. there is a inspection hole on elevator casing,
to observe all operation.
Driving device is equipped with YZ reducer and ZQ reducer. YZ axis reducer is directly coupled with
pulley shaft. this design can omit driving platform with compact structure, light weight.
Also, fixed security protector on bucket elevator: belt speed detector, belt alignment device, backstop, etc.
to ensure safty operation.

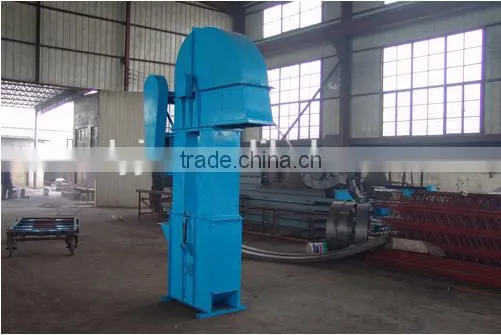

Product in factory:
Packaging
Packaging:all machines covered by plastic film firstly and then packed in wooden case to best protect the machine during long time transportation.
shipping
Shipping: All machines will be sent by sea, if you need other kind of transportation, please inform us in advance. And all machines would be shipped in 7 days after the receipt of payment. Before and after shipping, we will take photos of machines and send photos to client.
Our service
1. One year quality warranty for the machine and spare parts
2. Overseas engineers service for installation
3. Whole-life after-sales service and free consultation
4. Customized requirements available
5. Technician guide at the site.
6. 24Hr online service
1.About us
Henan Institute Of Grain Machinery Manufacturing Co., Ltd. is established driven by the academy of Henan University of Technology. As a large joint-stock enterprise integrating technology, manufacture and sales, our company is specializing in the production of grain and oil machinery, agricultural and sideline machinery. Cooperating with Henan Mechanical Design and Research Institute and Henna University of Technology (Former Zhengzhou Grain College), Henan Institute Of Grain Machinery Manufacturing Co., Ltd. has carried out the research and application of oil machinery, food machinery, grain machinery, construction machinery, and feed machinery, etc.
we provide a turnkey project of our machinery,including special design,installation, commissioning and training workers.
2.Why choose us
---Advanced equipments,good quality
---Professional skills,all-related services
---High quality and efficiency technology
---Complete production line,quick delivery
---The biggest grain and oil machine manufacturer and exporter in China
---Exporting to more than 30 countries and regions
FAQ:
1.Q :Are you the factory?
A:Yes, We are a professional manufacturer for several years.
2.Q: Where is your factory located?
A:Our factory is located in Jiaozuo, Henan Province.
3.Q:How about the INSTALLATION?
A:Engineers available to service machinery overseas,including installation,commission and training,etc.
4.Q:Can your company accept the customized product?
A:Yes,OEM &ODM service is available.We can make the products according to your size,design,color, It will be better if you can send us the product pictures for our reference.
5.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
Any questions, please don't hesitate to contact us!
