Glass fused to steel ro water plant price for 10000 liter
Glass fused to steel tank also called ename tank / glass lined steel bolted tanks/silos which is the only tank finish where two materials are fused together to achieve the best of both: the strength and flexibility of the steel combined with the corrosion resistance of the glass.
| Category | Specification |
| Coating Color | dark green, white, blue, color can be customized |
| Coating Thickness | 0.25~0.40mm ,double coating |
| Acid and alkalinity proof | Standard sheet PH:3~11 |
| Special sheet PH: 1~14 | |
| Adhesion | 3,450 N/cm |
| Elastic | Same as steel sheet,around 500 Kn /mm |
| Hardness | 6.0 ( Mohs ) |
| Service life | ≥30Years |
| Holiday test | >1500v |
| Permeability | Gas / liquid impermeable |
| Easy to clean | Teh Smooth, glossy, inert, non adhesive |
| Corrosion resistance | Excellent,suitable for wastewater,salt water,sea water,high-sulfur crude oil,salt fox,organic and inorganic compounds |
Advantages
| Comparison of various tank characteristics - 1 | ||||
| Item | Concrete Tank | Carbon steel tank |
Enamel tank (Glass-fused-to-Steel tanks) |
LIPP tank |
| Beautiful degree | Low | Low | High | High |
| Temperature adaption | A stress |
Adapt to low temperature |
Adapt to low temperature |
Adapt to low temperature |
| Shape | Any shape | Round shape | Round shape | Round shape |
| Ground Or underground | Both | Ground | Both | Ground |
| Corrosion resistance | Normal | No resistance to corrosion | Good | Not |
| Abrasion resistance | Good | Bad | Good | Bad |
| Easy to clean | Bad | Bad | Good | Normal |
| Easy to repaire | Normal | Good | Good | |
| Weight (T) | heavy | Little heavy | light | Little light |
| Tank cost | middle | high | low | low |
| Tank temperature protect | no | need | need | need |
| Anti-corrosive Treatment | no | need | no | need |
| Annual anticorrosive cost | no | High cost | no | High cost |
| Corrosion resistance | normal | no | superior | normal |
| Abrasion resistance | good | bad | good | bad |
| Service life ( years) |
30 | 10 | 30 | 25 |
| Comparison of various tank characteristics - 2 | ||||
| Item | Cement | 304 S.S. |
Enamel tank (Glass-fused-to-Steel tanks) |
FRP |
| Product color | grey | Metal color | Green, white, blue, any color | Any color |
| Coating thickness | No | No | 0.2-0.4mm | >300mm |
| Steel thickness | >250mm | >3mm | 2-12 mm | >300mm |
|
Aid & alkali resistance |
normal | normal | excellent | Special fiber |
| hardness | C15-C60 |
HV310-370, Mohs 5.5 |
Mohs 6-7 | Barcol hardness 40 |
| Service life | 50 years | >30 years | >30 years | <10 years |
|
Pressure standing ability |
strong | normal | strong | normal |
| Installation period | > 35 days | >20 days | 7-10 days | >30 days |
| installation |
Complex, request big professional equipment |
Professional people, work high above the ground, dangerous installation |
Safe installation, easy, fast, do not have requests on weather condition |
work high above the ground, dangerous installation, have request on weather condition |
| removal | impossible |
Possible, but high cost |
Possible, low cost | impossible |
| Out appearance | normal |
Ok, but only one color |
Good looking | ok |
In water and waste water treatment and biogas project, the enamel assembled water tank has been widely used as various aerobic and anaerobic reactors of UASB,EGSB,SBR,BAF,USR,CSTR, and equalization tank, Water Filter, Clarifier, sludge holding tank, etc.

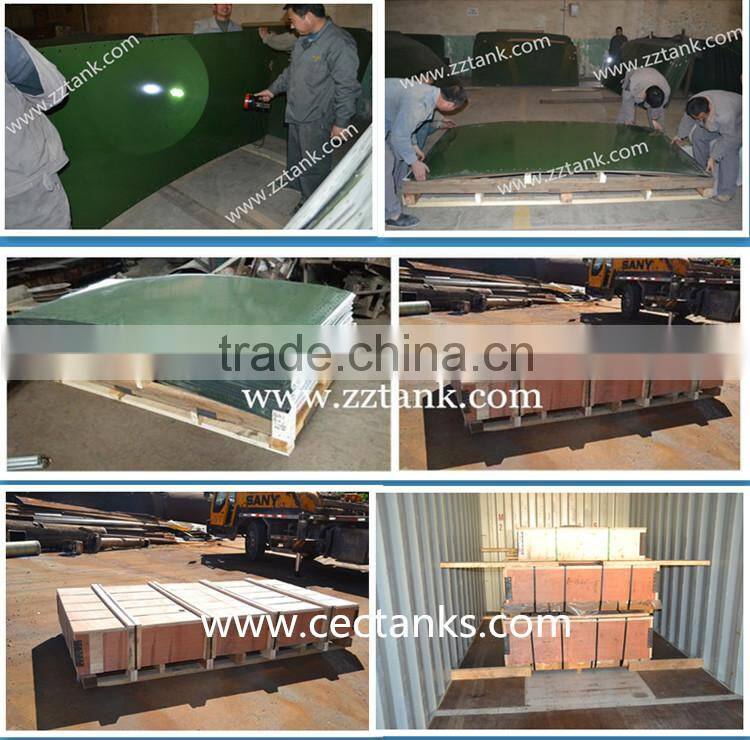

Package
The leader of enamel bolted tank in China!
The production base of enamel tank in china !
The largest and the most profession enamel tank supplier in china!
Center Enamel Co., ltd is a manufactory dedicated in vitreous enamel products since 1989, our main product is GFS storage tank and enamel cast iron cookware. We are not only the enamel production base in China , but also the first one to produce double -sides enamel hot-rolled steel in China. We are the largest and the most professional enamel bolted tank supplier in China.
We have more than 20 years experience of enamel production, company covers an area of 80,000 square meters, 2013 total annual turnover nearly 30 million dollars, including 7.6 million dollars for GFS tank, products have already been exported to more than 20 countries.
Our company has the most advanced production line, and already passed ISO9001-2000 quality system certification, and product and design can reach AWWA D103-09 standard, OSHA and meet European standards. We are the only enterprise that can produce AA grade (acid-proof and alkali- proof ) enameled sheet now. According to customers’ different operating requirements, we can customize various products.
Our company's Advantages
1. To improve the steel quality performance after enameling, we developed special steel ART310 with Angang Steel Group in 2005 which can greatly Increase not only the adhesive power between steel and enamel coating, but also solve fish scaling problem and improve the steel yield strength after firing.
2. We have 26 years experience in producing enameled steel sheet in China.
3. We are the only one factory have the laser cutting machine in China that can greatly improve both the production and the quality of the glass-fused-to-steel bolted tank.
4. Our glass-fused-to-steel bolted tank has already passed the ISO9001-2000 quality system certification,
5. Our glass-fused-to-steel bolted tank and design reach AWWA D103-09 standard, OSHA and meet European standards.
6. We are the only enterprise that can produce AA grade (acid proof and alkali proof ) enameled sheet now.
7. We are the factory direct selling that can offer glass-fused-to-steel bolted tank at competitive prices.
8. We can customize various products according to customers’ different operating requirements.
